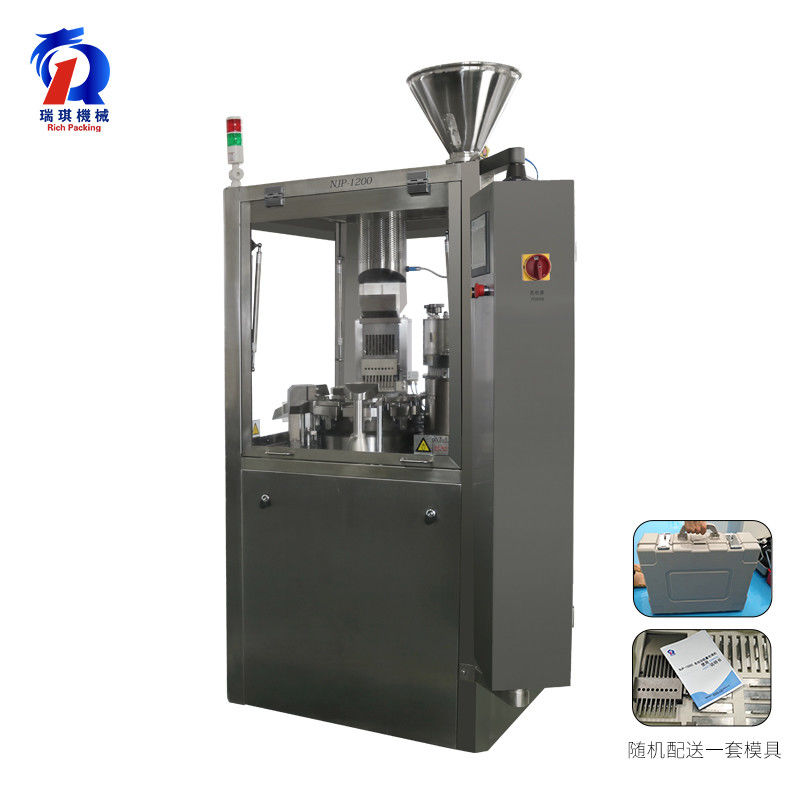

Electric Automatic Capsule Filler With 12 Months Warranty

Electric Automatic Capsule Filler With 12 Months Warranty

  • Electric Automatic Capsule Filler With 12 Months Warranty
  • Electric Automatic Capsule Filler With 12 Months Warranty
  • Electric Automatic Capsule Filler With 12 Months Warranty
Electric Automatic Capsule Filler With 12 Months Warranty
Product Details:
Place of Origin: Guangzhou, China
Brand Name: Rich Packing
Certification: CE ISO SGS
Model Number: NJP-1200
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: $19000-23000/pc
Packaging Details: Standard export wooden case (1490×1260×2150mm)
Delivery Time: 20-30 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 pcs/month
Contact Now
Detailed Product Description
Name: NJP 1200 Automatic Control Capsule Filling Machine Manufacturer After-sales Service Provided: Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support
Capacity: 72000 Capsules/hour Voltage: 220V/380V 50Hz
Dimension(l*w*h): 900*870*1950mm Condition: New
Automatic Grade: Automatic Weight: 1100KG
Type: Filling Machine Warranty: 12 Months
Power: 5.5kw Driven Type: Electric
Highlight:

automatic capsule filler

,

pill filler machine

NJP 1200 Automatic Control Capsule Filling Machine Manufacturer

Introduction of capsule filling machine:

The filling speed of the capsule filling machine is fast, and the difference of the size of the capsule filling machine is small. The filling of the capsule shell, the capsule cap finishing, and the capsule set are integrated, which is compact and convenient. In addition, the capsule filling machine has many advantages such as high speed, high efficiency, simple operation, convenient maintenance and low power consumption. It is the preferred capsule filling (filling) machine for pharmaceutical factories, health care products factories and hospital preparation rooms.

Features of capsule filling machine:
1.This pharmaceutiacl automatic capsule filling meets the GMP requirements, it is an ideal equipment for filling Chinese, Western medicines and health care product .

2.This automatic capsule fill machines can automatically finish the production process including sowing, capsule separating, filling, locking, unqualified capsule rejected and finished products output.

3.This pharmaceutical capsule filling machine has safety firs, all the working stations take full account of the personal safety, such as the door control and emergency stop switch.

4. Guangdong Rich Packing Machinery Co. Ltd.'s capsule filler machine deploy segmentation adapt German Cai Si for 3 seconds (Zeiss) optical dividing head indexing, indexing shaft completed a one-time processing, loading and high precision,

the error is less than or equal to 3%.

5.The capsule filler machines use the imported SIL silicone rubber sealing ring to block the powder into the bearing, which effectively solves the problem of the card machine that the powder enters the bearing.



Production capacity 72000 pcs/h
Net weight of machine 1100Kg
Overall size of machine 900×870×1950
Power 380/220V 50Hz
Total power 5.5KW
No.of segment bores 9
Vacuum 40m3/h-0.04-0.08Mpa
Dust collector 24.5Kpa 210m3/h
Noise <75DB(A)
Making rate Empty capsule 99.9% Full capsule 99.8%
Applicable capsule 00,0,1,2,3,4,5#
Filling error Western medicine:±3% Chinese medicine:±4%
Applicable product Power,granule,pellet,tablet
Weight 1100Kg
Packing size 1490×1260×2150mm

Electric Automatic Capsule Filler With 12 Months Warranty 0

Electric Automatic Capsule Filler With 12 Months Warranty 1

6.equipped with on-line air pressure die cleaning system, the upper and lower dies are clean and without dust, improve the sowing effect.

The capsule filler machinery is precision mold concentricity, zero deviation, ensure that the capsule is not wiping, no damage.

7.Automatic rejection device, improve the charging efficiency ,the capsule filling equipment is suitable to pharmacy and health care food manufacture.

8.The control of capsule filler machine appliance adopts the world famous brand, modularized setup, convenient inspection and maintenance, SIEMENS human machine interface, real-time counting, and can print the equipment according to customer needs, print production date, batch number, code, etc.

8.Can your machine meet our need well?
We will supply you a proposal as to your specific requirement, and each machine is customized to satisfy customer's need well.

9.What's your payment way?
T/T by our bank account directly, or L/C, or by the West Union, or in cash.

10.Rotary of capsule filling machine design to obtain a patent for utility model, the sealing ring using imported SIL silicone rubber, effectively prevent powder into the internal turntable, good sealing performance, no dust overflow

pollution
