|Place of Origin:||Guangzhou, China|
|Brand Name:||Rich Packing|
|Certification:||CE ISO SGS|
|Minimum Order Quantity:||1 PC|
|Packaging Details:||Standard export wooden case (1490×1260×2150mm)|
|Delivery Time:||20-30 working days|
|Payment Terms:||L/C, T/T, Western Union|
|Supply Ability:||30 pcs/month|
|Name:||Fully Automatic Capsule Filling Machine 72000 Capsules / Hour Capacity||After-sales Service Provided:||Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support|
|Voltage:||220V/380V 50Hz||Warranty:||12 Months|
pill filler machine,
auto capsule filling machine

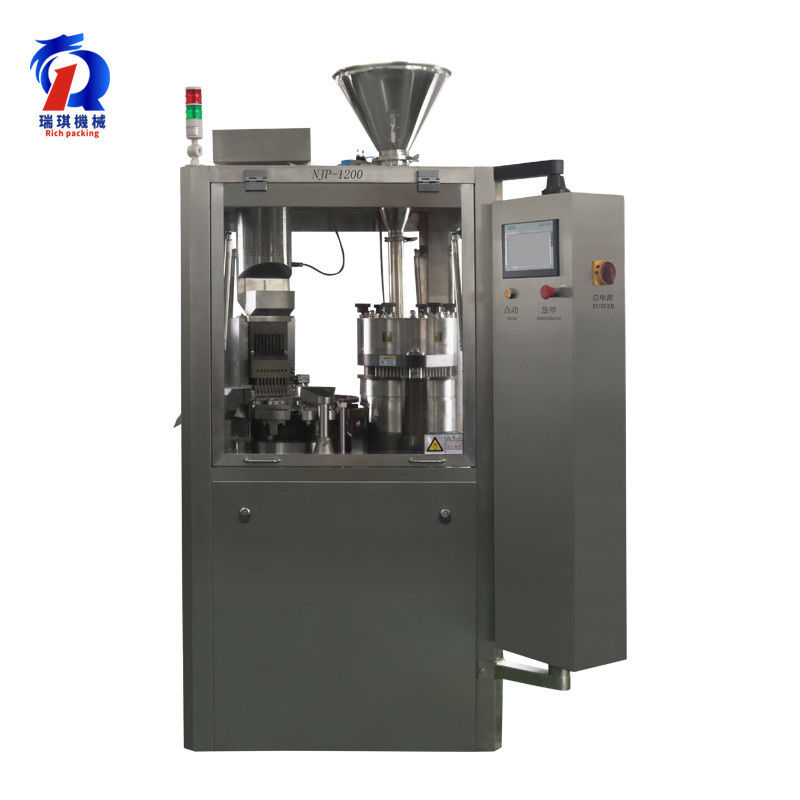

Fully Automatic Capsule Filling Machine 72000 Capsules / Hour Capacity
Introduction of capsule filling machine
Pharmacy capsule filling equipment can fill powder, granules and other materials into hollow capsules (000#, 00#, 0#, 1#, 2#, 3#, 4#, 5#).This automatic capsule fill machines can automatically finish the production process including sowing, capsule separating, filling, locking, unqualified capsule rejected and finished products output. This pharmaceutiacl automatic capsule filling machine meets the GMP requirements, it is an ideal equipment for filling Chinese, Western medicines and health care product.
|Production capacity||72000 pcs/h|
|Net weight of machine||1100Kg|
|Overall size of machine||900×870×1950|
|No.of segment bores||9|
|Dust collector||24.5Kpa 210m3/h|
|Making rate||Empty capsule 99.9% Full capsule 99.8%|
|Filling error||Western medicine:±3% Chinese medicine:±4%|
Features of capsule filling machine:
1..Rotary of capsule filling machine design to obtain a patent for utility model, the sealing ring using imported SIL silicone rubber, effectively prevent powder into the internal turntable, good sealing performance, no dust overflow pollution.
2.Transverse biaxial adapt PTFE oil-less bearing, no need refueling; modular structure, equipped with jog operation, convenient maintenance and cleaning, replacement of mold only 15 minutes,our capsule filling machine is newest.
3.Guangdong Rich Packing Machinery Co. Ltd. has big design deparment of capsule filling machine,the filling mechanism obtains the national new patent, adopts the three-dimensional adjustment, makes the metering plate evenly force, the adjustment volume is precise and quick, and the powder recovery device is added, the recycling rate is 100%, which reduces the waste and improves the economic benefit.
4.This pharmaceutiacl automatic capsule filling meets the GMP requirements, it is an ideal equipment for filling Chinese, Western medicines and health care product .
5.Equipped with on-line air pressure die cleaning system, the upper and lower dies are clean and without dust, improve the sowing effect.
6.The capsule filler machinery is precision mold concentricity, zero deviation, ensure that the capsule is not wiping, no damage.
7.Automatic rejection device, improve the charging efficiency ,the capsule filling equipment is suitable to pharmacy and health care food manufacture.
8.Our tablet press machine, capsule filling machine, blister pakcing machine, tablet and capsule counting filling machine, cartoning box machine are exported to many countries & areas, such as Korea, India, Indonesia, Pakistan, Thailand, Vietnam, Iran, Japan, Denmark, Romania, Bulgaria, Russia, South Africa, Nigeria, the USA, Australia, Canada, Argentina and Chile.
9.What's your payment way?
T/T by our bank account directly, or L/C, or by the West Union, or in cash.
10.How can you ensure the machine's quality after we put the order?
Before the delivery, we will send you machine's pictures and videos, or you can come to us to have the quality checking by yourself, or by the third party inspection organization contacted by your side.
