|Place of Origin:||Guangzhou, China|
|Brand Name:||Rich Packing|
|Certification:||CE ISO SGS|
|Minimum Order Quantity:||1 PC|
|Packaging Details:||Standard export wooden case|
|Delivery Time:||20-30 working days|
|Payment Terms:||L/C, T/T, Western Union|
|Supply Ability:||30 pcs/month|
|After-sales Service Provided:||Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support||Capacity:||48000 Capsules/h|
|Capsule Size:||000 00 0 1 2 3 4 5||Vacuum:||20m3/h-0.04-0.08Mpa|
|Voltage:||220V/380V 50 Hz||Power:||5kw|
automatic capsule filler,
auto capsule filling machine
Automatic Capsule Filling Machine Medicine Manufacture 220 380 50 Hz
|Production capacity||48000 pcs/h|
|Net weight of machine||900Kg|

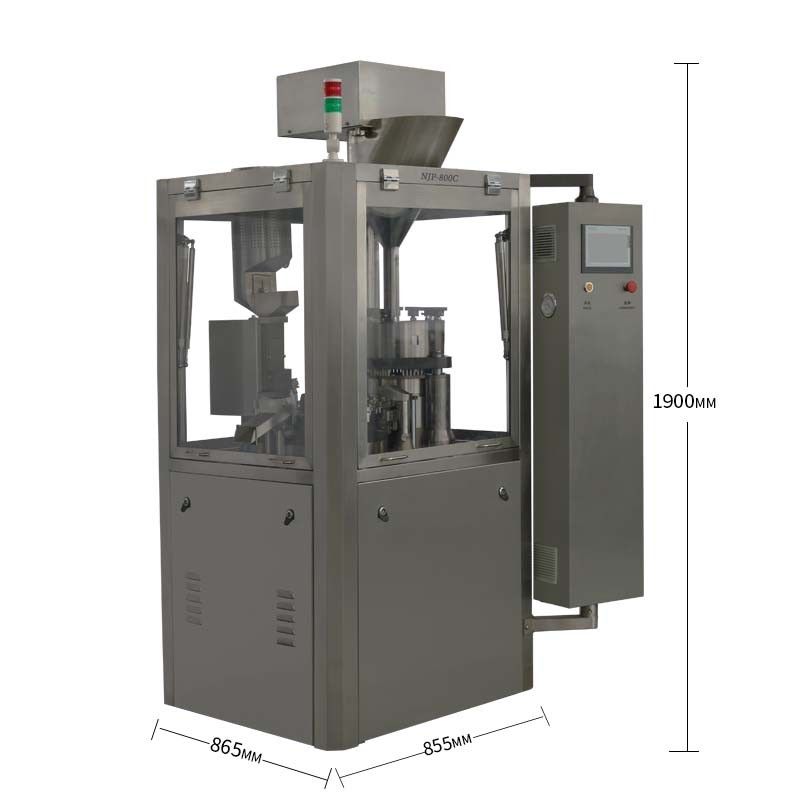

|Overall size of machine||865×855×1900(mm)|
|No.of segment bores||6|
|Dust collector||17.6Kpa 180m3/h|
|Making rate||Empty capsule 99.9% Full capsule 99.8%|
|Filling error||Western medicine:±3% Chinese medicine:±4%|
The data comes from Guangdong Rich Packaging Machinery Co., Ltd
Full enclose turntable
1.This series capsule filling machinery capsule suction, capsule outlet, locking and waste rejection adapt double sealing device, one is imported NBR sealing rubber which prevents the loss of lubricating oil.
2.Automatic rejection device, improve the charging efficiency ,the capsule filling equipment is suitable to pharmacy and health care food manufacture.
3.The capsule filling machine of Guangdong Rich Packing Packing Machinery Co. Ltd. has reasonable design,modular structure, easy operation and lower failure rate.
4.Pharmacy capsule filling equipment can fill powder, granules and other materials into hollow capsules (000#, 00#, 0#, 1#, 2#, 3#, 4#, 5#).
5.With rich experiences in pharmaceutical machinery and equipment field and numbers of professional engineers, we have designed and developed many types of machinery and equipments including tablet press, soft and hard blister packing machine, capsule filling machines, counting machine and cartoning box machine, etc.
6.We will supply you a proposal as to your specific requirement, and each machine is customized to satisfy customer's need well.
7.The capsule filling equipment is small in volume, low in energy consumption, convenient in cleaning and stable in operation. The capsule filling machine is suitable for continuous production of 24 hours.
8.All the parts of the contact drug of pharmacy equipment are made of stainless steel 316, and the waste device adopts seven lines of aero aluminum.
9.We are the manufacturer, and have been in industry for more than 26 years.
