| Place of Origin: | Guangzhou, China |
| Brand Name: | Rich Packing |
| Model Number: | NJP-400 |
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | $9000-17000/pc |
| Packaging Details: | Standard export wooden case |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 pcs/month |
| Certification: | CE ISO SGS | Condition: | New |
|---|---|---|---|
| Weight: | 600KG | Type: | Filling Machine |
| Voltage: | 380/220V 50Hz | Driven Type: | Electric |
| Dimension(l*w*h): | 805*705*1760 Mm | Application: | Hard Capsule Powder Filling |
| Name: | Full Automatic Capsule Filling Encapsulation Machine Price 24000 Capsules Per Hour | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support,Field Maintenance And Repair Service,Online Support,Field Installation |
| High Light: | automatic capsule filler,pill filler machine |
||

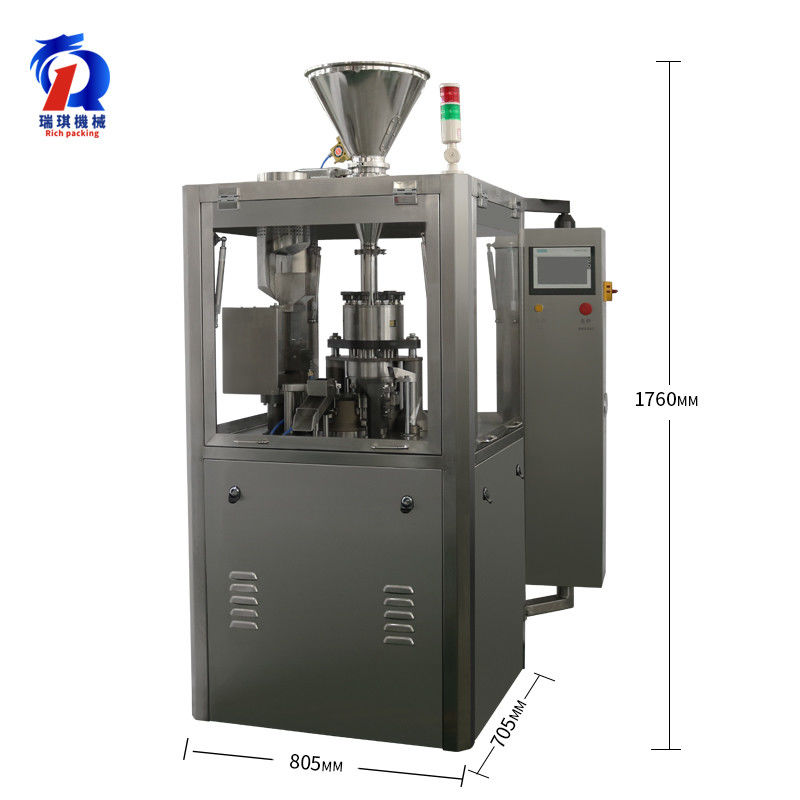

Full Automatic Capsule Filling Encapsulation Machine Price 24000 Capsules per Hour
The capsule filling machine is the third generation of innovative products.The capsule filler machine has reasonable design,modular structure, easy operation and lower failure rate. The capsule fill machinery also has Segmentation adapt German Cai Si for 3 seconds (Zeiss) optical dividing head indexing, indexing shaft completed a one-time processing, loading and high precision, the error of capsule filling mchine is less than or equal to 3%.The capsule filling equipment has 6 technological innovations and 2 invention patents.The capsule filling equipment is small in volume, low in energy consumption, convenient in cleaning and stable in operation. The capsule filling machine of Guangdong Rich Packaging Machinery Co., Ltd is suitable for continuous production of 24 hours.
| Product speed | 24000 pcs/h |
| NG | 600Kg |
| Machine size | 805×705×1760(mm) |
| Power | 380/220V 50Hz |
| Total power | 3.5KW |
| No.of segment bores | 3 |
| Vacuum | 20m3/h-0.04-0.08Mpa |
| Dust collector | 17.6Kpa 180m3/h |
| Noise | <75DB(A) |
| Filling rate | Empty capsule 99.9% Full capsule 99.8% |
| Capsule size | 00,0,1,2,3,4,5# |
| Filling error | ±3% |
| Applicable product | Power,granule,pellet,tablet |
The data comes from Guangdong Rich Packaging Machinery Co., Ltd
Detail show of capsule filling machine :
Measuring systerm: The capsule filling mechanism obtains the national new patent, adopts the three-dimensional adjustment, makes the disk evenly force, the adjustment volume is precise and quick, and the powder recovery device is optional, the recycling rate is 100%, so the capsule filling machine reduces the waste and enhances the economic efficiency.
Measuring scale
Mode of capsule filling machine: The mode of capsule filling mchine is all stainless steel 316L in the upper and lower molds, and the material is more resistant to corrosion and durability.
Features:
1.The capsule filling mchine has reasonable design,modular structure, easy operation and lower failure rate.
2.The capsule filler machinery also has safety firs, all the working stations take full account of the personal safety, such as the door control and emergency stop switch.
3.This capsule filling machine's capsule suction, capsule outlet, locking and waste rejection adapt double sealing device, one is imported NBR sealing rubber which prevents the loss of lubricating oil. The other seals use the imported SIL silicone rubber sealing ring to block the powder into the bearing, which effectively solves the problem of the card machine that the powder enters the bearing.
4.The filling rod, the upper and lower die holes, the measuring disk adapt non polar electronic polishing treatment, enhance the material fluidity, which has solved the problems of sticky of material, stick with mold and easy to absorb moisture. (According to the material properties and the special requirements of customers, we can provide the Teflon coating processing service)
5.All the parts of the capsule filling machine of the contact drug are made of stainless steel 316, and the waste device adopts seven lines of aero aluminum.
6.The capsule filler equipment is small in volume, low in energy consumption, convenient in cleaning and stable in operation. Guangdong Rich Packing Machinery Co., Ltd's is suitable for continuous production of 24 hours.
One-year warranty period for whole machine except of tubes and human factors etc, and 12-month of after-sale service from the date when you receive machine or 12 months when installation finished;
Consultant services for whole machine life, and 24 hours technical support by email;
UPS, English software, user manual and the installation & debugging by our experienced technicians.
