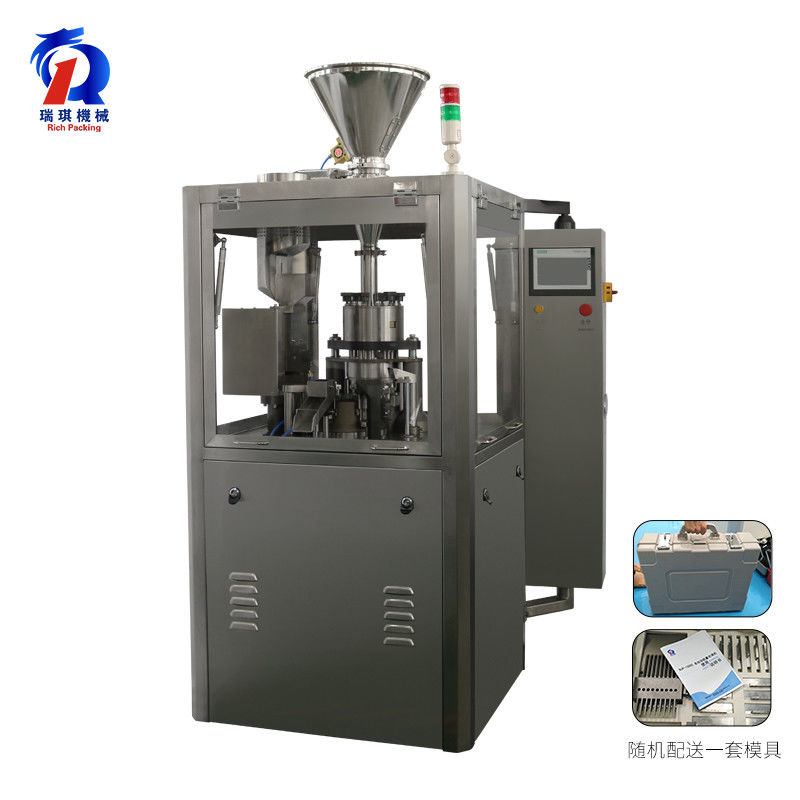

Stainless Steel Hard Gel Capsule Filling Machine Fully Automatic

Stainless Steel Hard Gel Capsule Filling Machine Fully Automatic

  • Stainless Steel Hard Gel Capsule Filling Machine Fully Automatic
Stainless Steel Hard Gel Capsule Filling Machine Fully Automatic
Product Details:
Place of Origin: Guangzhou, China
Brand Name: Rich Packing
Certification: CE ISO SGS
Model Number: NJP-400
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: $9000-17000/pc
Packaging Details: Standard export wooden case
Delivery Time: 20-30 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 pcs/month
Contact Now
Detailed Product Description
Condition: New Weight: 600KG
Dimension(l*w*h): 805*705*1760 Mm Type: Filling Machine
Driven Type: Electric Application: Hard Capsule Powder
Voltage: 380/220V 50Hz Certification: CE,ISO,SGS
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support Name: Stainless Steel Hard Gel Capsule Filling Machine Fully Automatic
Highlight:

pill filler machine

,

auto capsule filling machine

Stainless Steel Hard Capsule Filling Machine Fully Automatic

The capsule filling machine can fill powder, granules and other materials into hollow capsules. The capsule filler mchinery has rotary design to obtain a patent for utility model, the sealing ring using imported SIL silicone rubber, effectively prevent powder into the internal turntable, good sealing performance, no dust overflow pollution. Capsule suction, capsule outlet, locking and waste rejection adapt double sealing device, one is imported NBR sealing rubber which prevents the loss of lubricating oil. The other seals use the imported SIL silicone rubber sealing ring to block the powder into the bearing, which effectively solves the problem of the card machine that the powder enters the bearing.The capsule filler machine meets the GMP requirements, it is an ideal equipment for filling Chinese, Western medicines and health care product .The filling mechanism obtains the national new patent, adopts the three-dimensional adjustment, makes the metering plate evenly force, the adjustment volume is precise and quick, and the powder recovery device is added, the recycling rate is 100%, which reduces the waste and improves the economic benefit. Guangdong Rich Packaging Machinery Co., Ltd also could offer tablet press machine, blister packing machine, tablet and capsule counting filling machine , cartoning box machine for pharmacy and food.





Product speed 24000 pcs/h
NG 600Kg
Machine size 805×705×1760(mm)
Power 380/220V 50Hz
Total power 3.5KW
No.of segment bores 3
Vacuum 20m3/h-0.04-0.08Mpa
Dust collector 17.6Kpa 180m3/h
Noise <75DB(A)
Filling rate Empty capsule 99.9% Full capsule 99.8%
Capsule size 00,0,1,2,3,4,5#
Filling error ±3%
Applicable product Power,granule,pellet,tablet

The data comes from Guangdong Rich Packaging Machinery Co., Ltd

Stainless Steel Hard Gel Capsule Filling Machine Fully Automatic 0

Detail show of capsule filling machine :

Stainless Steel Hard Gel Capsule Filling Machine Fully Automatic 1

Locking device



Stainless Steel Hard Gel Capsule Filling Machine Fully Automatic 2

Measuring device





Features:

1.This pharmacy capsule filler machine  automatic rejection device, improve the charging efficiency..

2. It is sure that pharmacy capsule filling machine's the parts of the contact drug are made of stainless steel 316, and the waste device adopts seven lines of aero aluminum.

3. The capsule filling equipment of Guangzhou Rich Packing Machinery Co., Ltd is small in volume, low in energy consumption, convenient in cleaning and stable in operation. It is suitable for continuous production of 24 hours..

4. The filling rod, the upper and lower die holes, the measuring disk adapt non polar electronic polishing treatment, enhance the material fluidity, which has solved the problems of sticky of material, stick with mold and easy to absorb moisture. (According to the material properties and the special requirements of customers, we can provide the Teflon coating processing service)

5. It is sure that capsule filling machine equipped with on-line air pressure die cleaning system, the upper and lower dies are clean and without dust, improve the sowing effect.
