| Place of Origin: | Guangzhou, China |
| Brand Name: | Rich Packing |
| Certification: | CE ISO SGS |
| Model Number: | NJP-400 |
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | $9000-17000/pc |
| Packaging Details: | Standard export wooden case |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 pcs/month |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support | Name: | Newest Type Pharmaceutical Automatic Hard Capsule Filling Machine |
|---|---|---|---|
| Condition: | New | Weight: | 600KG |
| Dimension(l*w*h): | 805*705*1760 Mm | Type: | Filling Machine |
| Application: | Medical,Food | Voltage: | 220V/380V 50Hz |
| Warranty: | 1 Year | Noise: | <75DB(A) |
| High Light: | automatic capsule filler,pill filler machine |
||

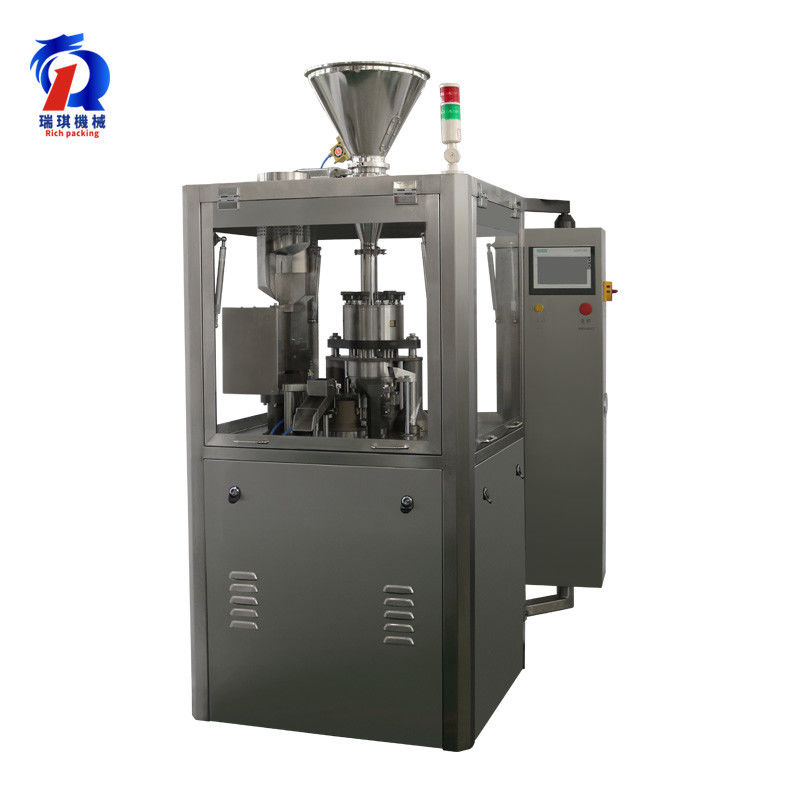

Newest Type Pharmaceutical Automatic Hard Capsule Filling Machine
Automatic rejection device, improve the charging efficiency ,the capsule filling equipment is suitable to pharmacy and health care food manufacture.All the parts of the contact drug of pharmacy equipment are made of stainless steel 316, and the waste device adopts seven lines of aero aluminum.This series capsule filling machinery capsule suction, capsule outlet, locking and waste rejection adapt double sealing device, one is imported NBR sealing rubber which prevents the loss of lubricating oil.With rich experiences in pharmaceutical machinery and equipment field and numbers of professional engineers, we have designed and developed many types of machinery and equipments including tablet press, soft and hard blister packing machine, capsule filling machines, counting machine and cartoning box machine, etc.
| capacity | 24000 pcs/h |
| Net weight | 600Kg |
| Size | 805×705×1760(mm) |
| Power | 380/220V 50Hz |
| Total power | 3.5KW |
| No.of segment bores | 3 |
| Vacuum | 20m3/h-0.04-0.08Mpa |
| Dust collector | 17.6Kpa 180m3/h |
| Noise | <75DB(A) |
| Making rate | Empty capsule 99.9% Full capsule 99.8% |
| Suitaable capsule | 00,0,1,2,3,4,5# |
| Filling error | ±3% |
| Applicable product | Power,granule,pellet,tablet |
The data comes from Guangdong Rich Packaging Machinery Co., Ltd
Finished product display from Guangdong Rich Packaging Machinery Co., Ltd
Detail show of capsule filling machine :
Features:
1.One-year warranty period for whole machine except of tubes and human factors etc, and 12-month of after-sale service from the date when you receive machine or 12 months when installation finished
2. When we are manufacture the capsule filling machines ,the filling rod, the upper and lower die holes, the measuring disk adapt non polar electronic polishing treatment, enhance the material fluidity, which has solved the problems of sticky of material, stick with mold and easy to absorb moisture. (According to the material properties and the special requirements of customers, Guangdong Rich Packing Machinry Co. Ltd can provide the Teflon coating processing service)
3.Pharmacy capsule filling equipment can fill powder, granules and other materials into hollow capsules (000#, 00#, 0#, 1#, 2#, 3#, 4#, 5#).
4.The capsule filling machine has the advantages of accurate loading, stable operation and no dust.
5.Rotary of capsule filling machine design to obtain a patent for utility model, the sealing ring using imported SIL silicone rubber, effectively prevent powder into the internal turntable, good sealing performance, no dust overflow pollution
About Guangdong Rich Packing Machinery Co., Ltd(We are manufacturer of tablet press machine,capsule filling machine, blister packing machine, counting machine and cartoning machine)
