| Place of Origin: | Guangzhou, China |
| Brand Name: | Rich Packing |
| Certification: | SGS CE ISO9001 |
| Model Number: | RQ-DSL-16H |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | $18661-$19023 per set |
| Packaging Details: | Standard export wood case the counting machine is first wrapped with a transparent film, and then bound in a wooden box |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50 pcs/month |
| Production Name: | RQ-DSL-16H 16 Lane Automatic Pill Tablet Capsule Counting Machine | Accuracy Rate: | ＞=99.98% |
|---|---|---|---|
| Applicable Bottle Type: | Dia.25-110mm Round And Square Bottle, Height 30-240mm | Voltage: | 220/380V 50Hz |
| Capsule Size: | 000-5# Hard/soft Capsule | Warranty Period: | 2 Years |
| Application: | Tablet Capsule Pill Candy Counting | Function: | Counting And Bottling |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Maintenance And Repair Service,Online Support | Speed: | 80-100 Bottles/min |
16H tablet counter of DSL series is the newest model of Richpacking.
This machine has many new technologys, such as modular design for vibrat trough,
pusher, pneumatic blanking way.
The counter photoelectric eye use 1to1 independent system, so 16H has
highly stable precision and speed.
Wide range of application,all shapes of tablet and capsule (soft/hard capsules, pills, etc.)
candy in range of 0.3 to 2.5 cm can count and fill.
also Meets GMP cGMP, connected to counting line, as unscrambler,
paper inserter, capper, desiccant inserter, sealing machine, labeling machine.
| machine's name of model | 16H 16 lane counting machine |
| NO. of tracks | 16 |
| Production capacity | max. 457,000 pcs/h |
| Accuracy rate % | ＞99.988% |
| range Filling | 1-9998 grains |
| Applicable target for | Tablet pill:Φ3-25mm,hard /soft capsule:000 00～5# |
| Bottle type | Φ2.5-11cm round and square bottle, hei: 30-240mm |
| Voltage V | 220-380V |
| Power KW | 2.500 |
| Air Pressure | 0.44 ～ 0.6Mpa |
| Air consumption | 198L/min |
| Hopper capacity | 79L |
| weight | 901kg |

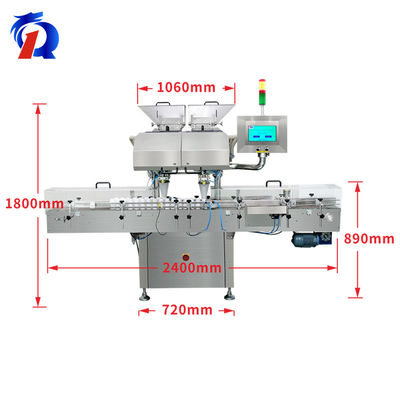

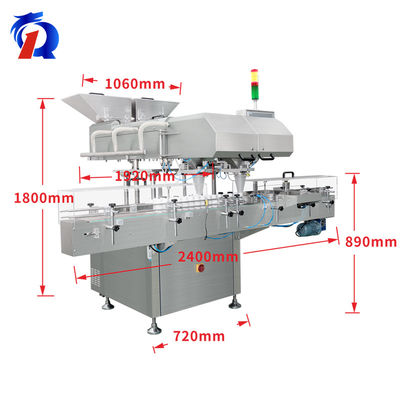

| Outline dim.(mm) | 1310×1960×1810mm |
WHY YOU CHOOSE US:
1-We have 27+ year experience.
2-Provides 2 years warrantys.
3-Provides oversea services.
16lane counting machine's structure
Modular design of tablet counting machine, easy for maintain and clean.
Accuracy of tablet countier >=99.988%
auto capsule counting machine use independent system.
16H tablet counter using fully-enclosed designs.
16H automatic tablet counting machine use three stages vibrator.
16H capsule counting machine use 2*8 lanes to count.
16H capsule counting machine with good PLC FPJs.
Tablet counter machine have international commponent.
