| Place of Origin: | Guangzhou, China |
| Brand Name: | Rich Packing |
| Certification: | SGS CE ISO9001 |
| Model Number: | RQ-DSL-16H |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiated price |
| Packaging Details: | Standard export wood case the counting machine is first wrapped with a transparent film, and then bound in a wooden box |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50 pcs/month |
| Production Name: | RQ-DSL-16H 16 Lane Automatic Pill Tablet Capsule Counting Machine | Accuracy Rate: | ＞=99.98% |
|---|---|---|---|
| Applicable Bottle Type: | Dia.25-110mm Round And Square Bottle, Height 30-240mm | Voltage: | 220/380V 50Hz |
| Capsule Size: | 000-5# Hard/soft Capsule | Warranty Period: | 2 Years |
| Application: | Tablet Capsule Pill Candy Counting | Function: | Counting And Bottling |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Maintenance And Repair Service,Online Support | Speed: | 80-100 Bottles/min |
| machine's name | DSL-16H |
| NO. of track | 16 |
| Production speed | max. 458,000 pcs/h |
| Accuracy rate | ＞99.98% |
| Filling range | 1～ 9999 grains |
| Applicable target | Tablet:Φ3～25mm ,pill:Φ3～20mm, hard capsule/soft capsule:000～5# |
| Applicable bottle type | Φ25～110mmround and square bottle, height 30-240mm |
| Voltage | AC380V 3P 50/60HZ |
| Power | 2.5KW |
| Pressure | 0.45 ～ 0.7Mpa |
| Air consumption | 200L/min |
| Hopper capacity | 80L |
| weight | 900kg |
| Outline dim.(mm) | 1300×1950×1800mm |
Product details:
Our client:
Factory workshop:
About us:
WHY CHOOSE US:
1-We have 28+ years experience.
2-Provide 2 years warranty.
3-Provide door to door oversea service.

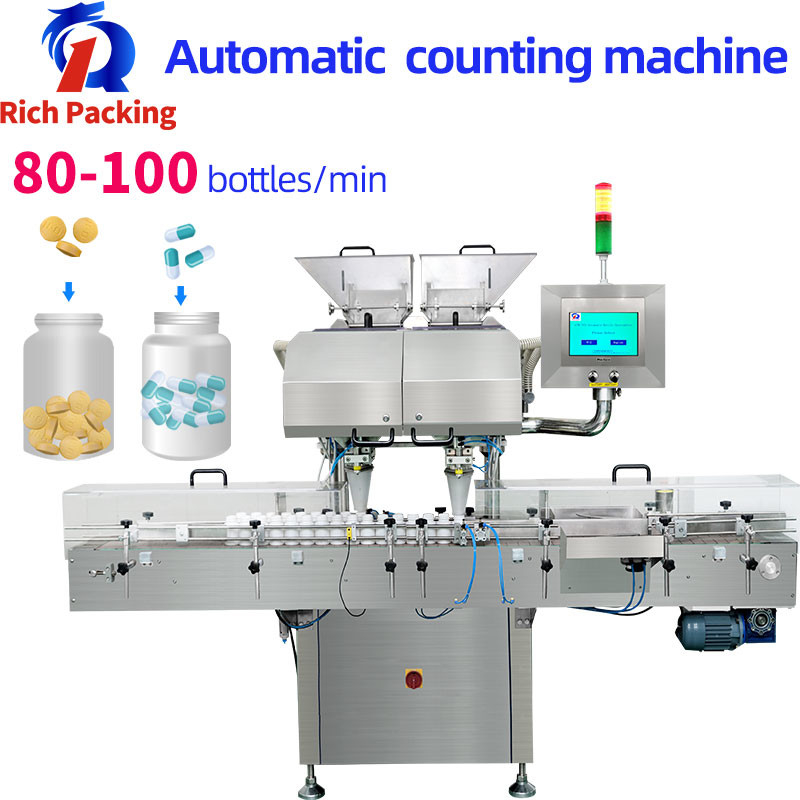

Our's tablet counter structure
Modular design of tablet counter, easy to maintain and clean.Accuracy of 16H tablet counting machine>=99.98%
Welcome visit Us.
Richpacking's DSL series 16H is the 7-generations innovation model.
We have many the new original technologys, modular design for vibrat trough,
pusher, pneumatic continuous blanking way.
Its counter photoelectric eye adopts 1vs1 independent control system,
so 16H has very high precision, speed and stable .
All it can pack, is all shapes of tablet and capsule (soft/hard capsules, pills, etc.)
candy in range of 0.3 to 2.5 cm.
also machine Meets GMP standard,could be connected to unscrambler,
inserter, desiccant inserter, capper, alu-foil sealer and labeler machine.
