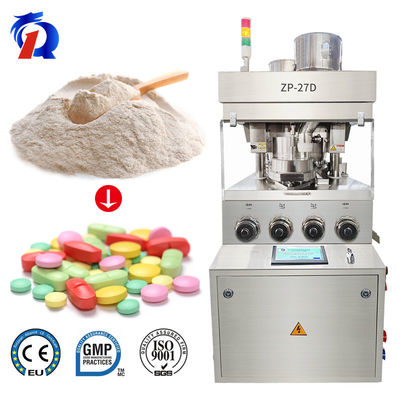

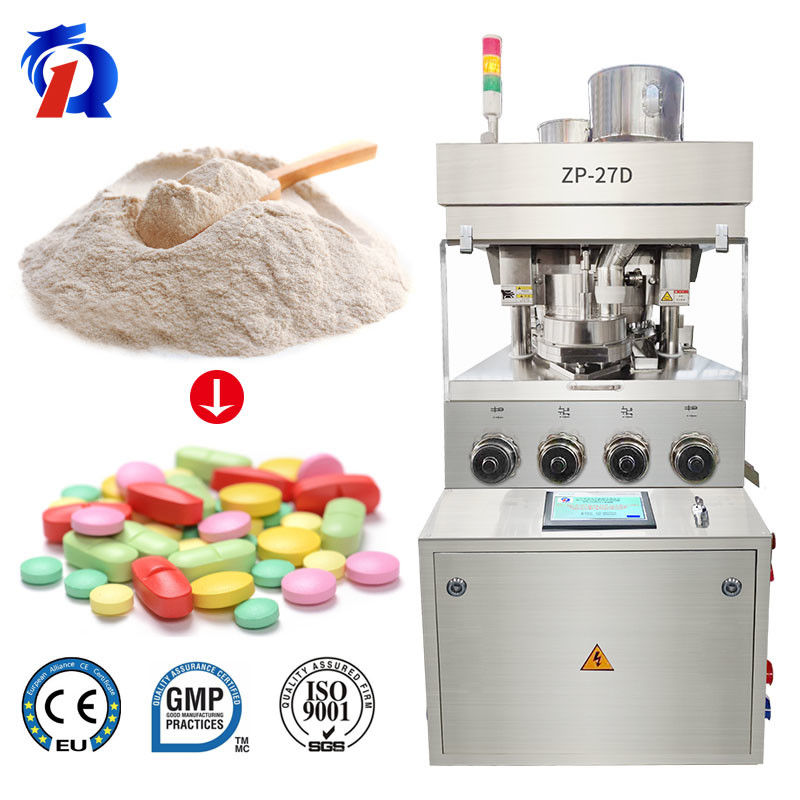

27D Pill Press Machine Tablet 25mm Automatic Double Rotary 55000 Pcs/H

27D Pill Press Machine Tablet 25mm Automatic Double Rotary 55000 Pcs/H

27D Pill Press Machine Tablet 25mm Automatic Double Rotary 55000 Pcs/H
27D Pill Press Machine Tablet 25mm Automatic Double Rotary 55000 Pcs/H
27D Pill Press Machine Tablet 25mm Automatic Double Rotary 55000 Pcs/H
Product Details:
Place of Origin: Guangzhou, China
Brand Name: Rich Packing
Certification: CE ISO SGS
Model Number: ZP-27D
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Packaging Details: Standard export wood case the machine is first wrapped with a transparent film, and then bound in a wooden box to ensure the safety of the tablet press machine during transportation.
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 pcs/month
Contact Now
Detailed Product Description
Maximum Output: 55000 Pcs/hour Maximum Pressure: 120KN
Maximum Tablet Diameter: 25mm Max. Depth Of Filling: 35mm
Max. Thickness Of Tablet: 17mm Rotary Speed: 7~17 R/min
Highlight:

55000Pcs/H Pill Press Machine

,

25mm Pill Press Machine

,

Double Rotary Pill Press Machine

27D Pill Press Machine Tablet 25mm Automatic Double Rotary 55000 Pcs/H

27D pill press machine meets GMP requirements and can continuously press round tablets, special-shaped tablets, two-color tablets and ring-shaped tablets. Whether it is pharmaceutical or food companies, this machine will be used as a production machine.



27D pill press machine has double pressure, double feeding hopper, double discharge port, etc. Compared with single pressure, the output is larger, which can reach 55,000 per hour.



Why is this machine produced in strict accordance with the requirements of GMP ?

  • 27D pill tablet press machine is made of stainless steel and is isolated from the outside;
  • 27D uses plexiglass as the door of the tablet press chamber, which has good sealing performance and can prevent cross-contamination;
  • The transmission system of the tablet press is placed under the machine to separate the tablet press chamber. Operation can avoid contamination of the tablet by debris generated by friction during the tablet pressing process.



Name 27D Pill Tablet Press Machine
Number of punches 27 SET MOLD
Maximum production capacity 55,000 pieces/ hour
Maximum tablet pressure 120 KN
Maximum tablet diameter 25 mm
Maximum filling depth 35 mm
Maximum tablet thickness 17 mm
Relay Japan Omron
AC contactor Germany Siemens

Weight of Machine

1600kg




pill pressing machinetablet compress machine

27D Pill Press Machine has gas spring door, good sealing.

tablet pressing machinepharmaceutical tablet pressing machine
