Place of Origin: | Guangzhou, China |
Brand Name: | Rich Packing |
Certification: | SGS CE ISO 9001 |
Model Number: | RQ-DSL-16H |
Minimum Order Quantity: | 1 |
---|---|
Packaging Details: | Standard export wood case the counting machine is first wrapped with a transparent film, and then bound in a wooden box |
Delivery Time: | 5-8 working days |
Payment Terms: | L/C, D/P, T/T |
Supply Ability: | 50 pcs/month |
Counting Machine's Name: | RQ-DSL-16H | Accuracy Rate: | >99.98% |
---|---|---|---|
Applicable For Bottle Type: | Round Or Square Bottle | Voltage Of Machine: | 220-380V |
Air Consumption: | 45L/min | Counting Machine Power: | 2150 W |
Counter Pressure: | 0.4-0.6Mpa | Time Of Warranty: | 2 Year |
After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Maintenance And Repair Service,Online Support | Speed: | 70-80 Bottles/min |
High Light: | 45L/min Pill Counter Machine,16 Lane Pill Counter Machine |

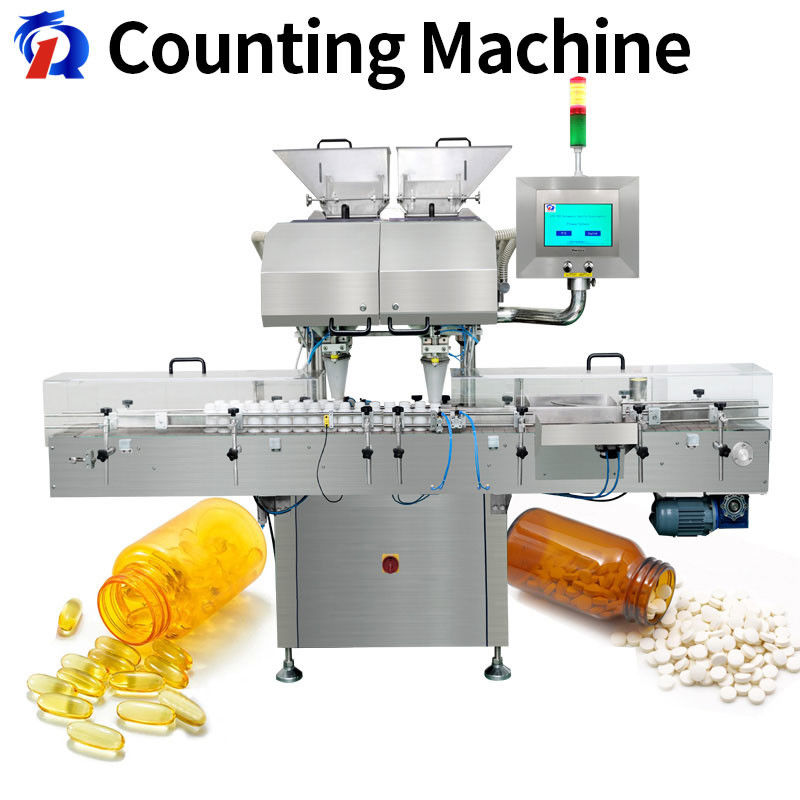

For Pharmacy Two Year Warranty Electronic Pill Counting Machine Tablet Capsule Bottle Counter
Over 28 years history: The Rich packing company has working in manufacturing food grade packing and pharmacy packing machinery for 28 years. RQ's main products include electronic capsule tablet counting machine, especially for the pharmaceutical factory, for counting pharmacy pill, soft or hard capules and kinds of tablets.
Modular disign adjusted: In the light of the install, debugging, disassem, maintain and clean of the users in the producing process of the tablet counter machinery, we have done many more jos of new tech on kinds of main key parts, the modular design innovation.
1, The vibration blanking rail: It would always take several hours to replace the old type models before, and now by using ours this new model, you only need ten minutes to completed replacement.
2, The pusher of pneumatic: Now users just only need to press a click on the touch screen of PLC, debugging and installatio can be easily achieved.
Meets cGMP model: This professional counter machine for pharma is fit for the food grade or pharmaceutical makings, RQ company have adopted high standards of industry in the purchase raw materials. We all use the world's major international brands in the key electronic components, such as Panasonic of Japan, Pro-face of Japan, banner of Japan, LG of Korea and CKD, etc. In hopper, vibration tank and fuselage, we use SUS-304 stainless steel and SUS-316 stainless steel.
Model | RQ-DSL-16H |
vibration groove tracks | 16 lane |
machine capacity | max 450,000 grains/h |
accuracy rate | >99.98% |
range of Filling | 1 ~ 9999 grains |
Applicable for | Tablet:Φ3~25mm ,pill:Φ3~20mm, |
hard capsule/soft capsule:000 00 0~5# | |
Applicable bottle type | Φ25~75mm round and square bottle, height ≤240 mm |
voltage | 220-380V |
power | 2.2KW |
pressure | 0.4 ~ 0.7Mpa |
Air consumption | 200L/min |
Hopper capacity | 80L |
weight | 900kg |
Outline dim.(mm) | 1300×1950×1800mm |
Contact Person: Nicole Huang
Tel: 13380063170
