|Place of Origin:||Guangzhou, China|
|Brand Name:||Rich Packing|
|Certification:||CE ISO SGS|
|Model Number:||ZP 17D|
|Minimum Order Quantity:||1 PC|
|Packaging Details:||Standard export wooden case|
|Delivery Time:||20-30 working days|
|Payment Terms:||L/C, T/T, Western Union|
|Supply Ability:||30 pcs/month|
|Product Name:||Fully Automatic Rotary Tablet Pill Press Machine||Item Type:||Tablet Pill Press Machine|
|Max Pressure:||60 Kn||Rotary Speed:||30 R/min|
40mm Tablet Press Machine,
GMP Tablet Press Machine,
Rotary Pill Press Machine

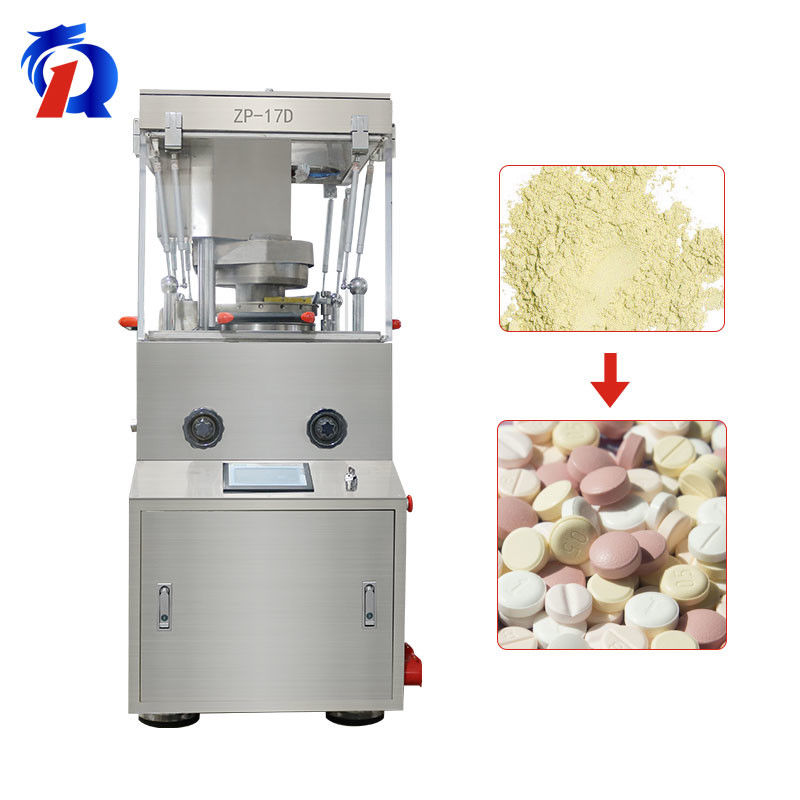

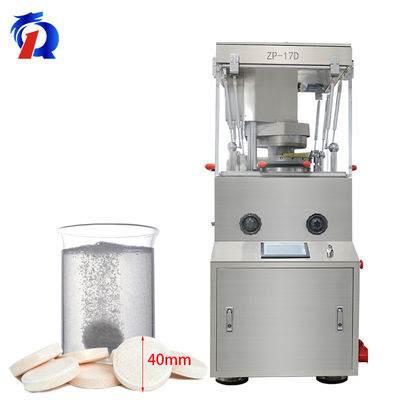

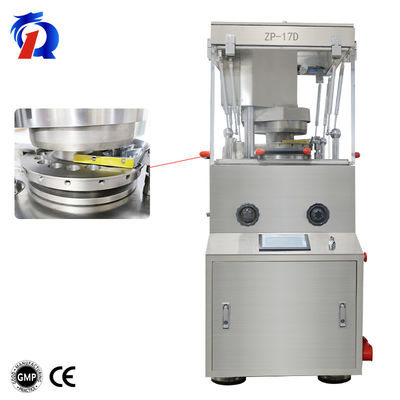

The 17D is a fully automatic rotary tablet press. This cost-effective machine can compress powder and granules into tablets. The maximum diameter of the tablet can be compressed to 40mm, and the maximum pressure can reach 100KN. Usually pharmaceutical, chemical, electronics, food and other companies will choose this cost-effective tablet press machine, and strictly follow the GMP production requirements, which is trustworthy.
Number of die
|60 kn||60 kn|
maximum Dia. of Tablet(mm)
|20 mm||13 mm|
maximum Depth of Filling(mm)
|15 mm||15 mm|
maximumThickness of Tablet(mm)
|6 mm||6 mm|
|30 /min||30 /min|
maximum Production Capacity(pc/h)
|30600 pc/h||34200 pc/h|
1. The power part of the 17d rotary tablet press is placed at the bottom of the machine to avoid contact with materials and reduce re-pollution.
2. The digital display adjustment of the 17d rotary tablet press has the characteristics of digitalization of filling depth and pressure adjustment, making the adjustment more precise and more convenient for customers to operate.
3. The structure of the 17d rotary tablet press is stable. For example, the bracket part is made of cast iron, which has better stability.
4. The 17d rotary tablet press has low noise. Its upper and lower rails are made of cast steel, the rails run radian, etc., with a large-angle linear structure, the mold runs without obstruction, and the noise is low.
5. The mold of the 17d rotary tablet press is made of GCR15, which has strong hardness and good corrosion resistance.
6. The housing of the 17d rotary tablet press is made of stainless steel 304, which can prevent mutual contamination of materials, convenient for customers to clean, and meets GMP standards.
7. The 17d rotary tablet press is made of transparent plexiglass, 100% isolation, which effectively prevents materials from absorbing moisture and pollution, and is convenient for customers to operate, clean and maintain.
8. The motor belt of the 17d rotary tablet press uses synchronous gears, which will not slip easily and the power transmission is more stable.
