|Place of Origin:||Guangzhou, China|
|Brand Name:||Rich Packing|
|Certification:||CE ISO SGS|
|Model Number:||ZP 17D|
|Minimum Order Quantity:||1 PC|
|Packaging Details:||Standard export wooden case|
|Delivery Time:||20-30 working days|
|Payment Terms:||L/C, T/T, Western Union|
|Supply Ability:||30 pcs/month|
|Product Name:||Fully Automatic Rotary Tablet Pill Press Machine||Item Type:||Tablet Pill Press Machine|
|Max Pressure:||60 Kn||Rotary Speed:||30 R/min|
30 R/Min Tablet Press Machine,
3.0kw Tablet Press Machine,
SS Pill Press Machine

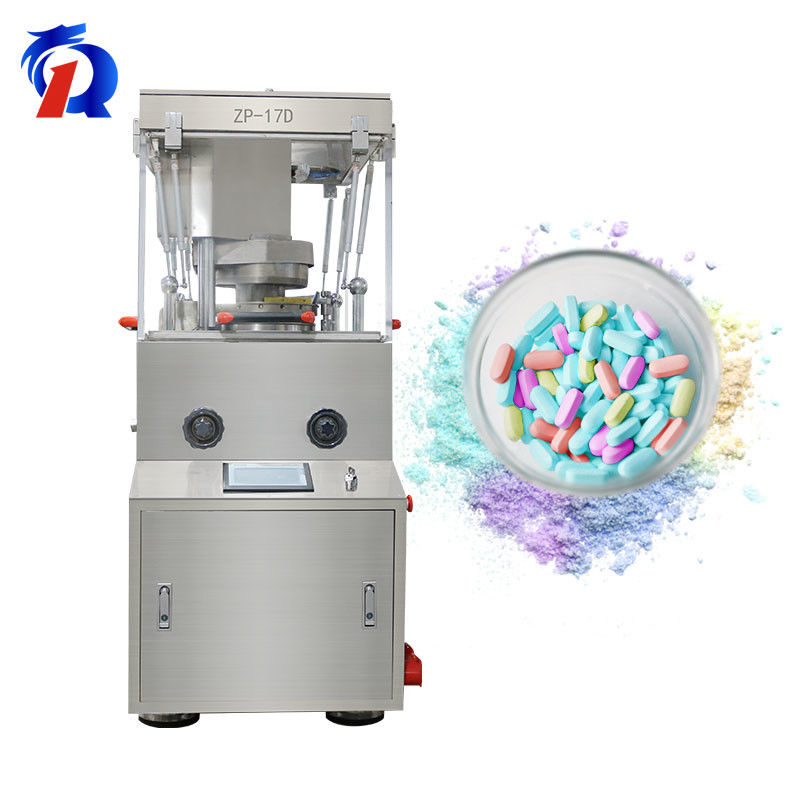

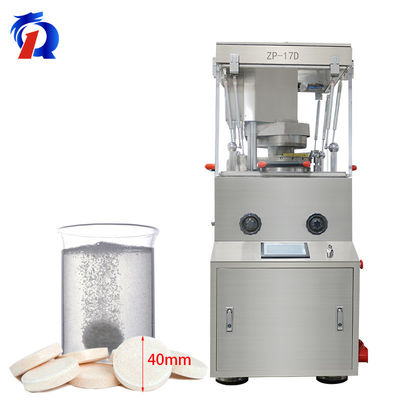

The 17D can compress powder and granules into tablets. It is an extremely cost-effective machine. The maximum pressure can reach 100 KN, and the maximum tablet diameter can be compressed to 40mm.Generally, it is a suitable machine for pharmaceutical, chemical, electronic, food and other enterprises, and it meets GMP production requirements.
Number of die
|60 kn||60 kn|
Max. Dia. of Tablet(mm)
|20 mm||13 mm|
Max. Depth of Filling(mm)
|15 mm||15 mm|
Max.Thickness of Tablet(mm)
|6 mm||6 mm|
|30 /min||30 /min|
Max. Production Capacity(pc/h)
|30600 pc/h||34200 pc/h|
1. This tablet press has a high pressure, reaching 100kn, and it can compress many types of tablets, such as ordinary and special-shaped, ring-shaped tablets of various shapes.
2. This tablet press is equipped with a pressure overload protection device. As long as the pressure is overloaded, the machine will automatically stop to avoid the possibility of equipment damage.
3. This tablet press is equipped with a turntable dual suction device, and there are six suction ports in total. The dust suction effect is very good, and the disk surface of the turntable will be clean and pollution-free.
4. The turntable of this tablet press is made of nodular cast iron, QT500, with strong hardness, heat resistance, wear resistance, solid bar material compression, and good system stability.
5. This tablet press is safety first and meets GMP requirements. The safety concept is embodied in feeding, suppression, emergency stop protection, etc., to ensure the safety of every use.
6. The 17d oil intrusion lubrication transmission mechanism of this tablet press has the characteristics of low noise and good lubrication effect.

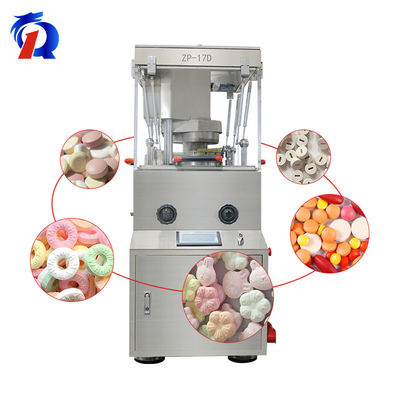

irregular tablets round shape oval shape aircular shape tablet
