Only create value for our customers, we have the value of existence.
 |
| Place of Origin: | Guangzhou, China |
| Brand Name: | Rich Packing |
| Certification: | SGS CE ISO 9001 |
| Model Number: | RQ-DSL-16R |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | $18661-$19023 per set |
| Packaging Details: | Standard export wood case the machine is first wrapped with a transparent film, and then bound in a wooden box |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 50 pcs/month |
| Production Capacity: | 80 Bottles/min | Counting Machine Accuracy Rate: | ＞99.5% |
|---|---|---|---|
| Applicable Bottle Type: | 500ml Round, Square Bottle | Counting Machine Voltage: | 220V 50Hz |
| Gas Consumption: | 45L/min | Candy Counter Power: | 1.2KW |
| Candy Counter Pressure: | 0.6Mpa | Candy Counter Warranty: | 2 Year |
| Rich Packing Servise: | Custom Feeder | Product Name: | 16 Channel Auto Electronic Automatic Bottling Milk Tablet Candy Chewing Gums Counting Machine |
| High Light: | 99.5% Electronic Counting Machine,45L/min Electronic Counting Machine |
||

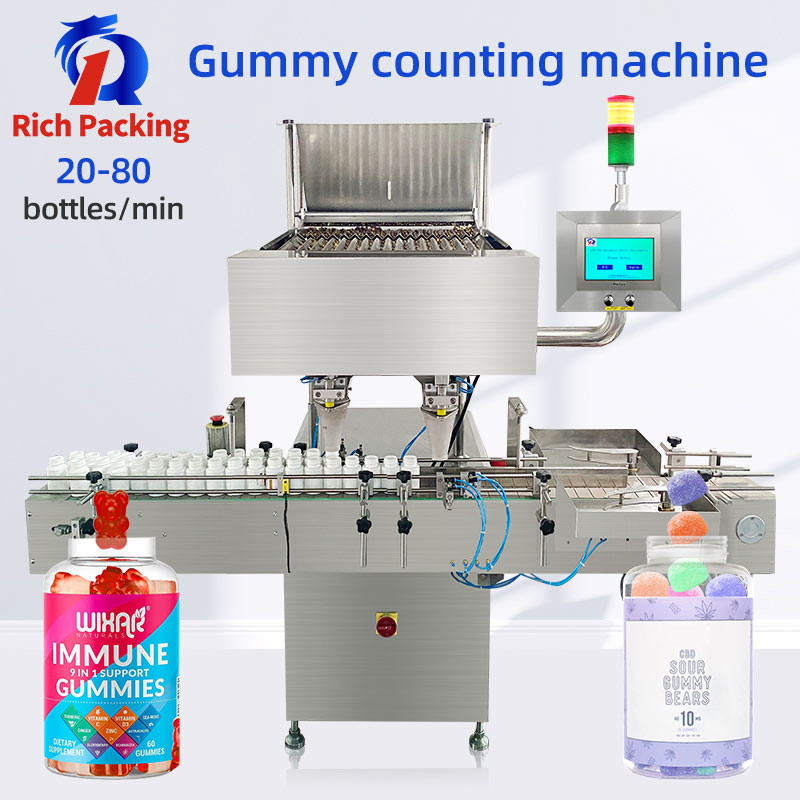

16 Channel Auto Automatic Counting Machine Electronic Bottling Milk Tablet Candy Chewing Gums
Guangdong Rich Packing Machinery 16 channel auto electronic capsule tablet counting machine feature: High accuracy,Good stability,Strong compatibility,Multistage vibration design,High intelligence,High integration,easy operation,low running cost.
New point:feeder has increased to two and channels have splitted into two independent line for two different production line working at the same time that make it high efficiency.Hopper observation window,can check the quantity of materials at any time and add materials in time.Tempered glass window, you can check the machine's blanking process, if there is a fault, you can adjust it in time.
Our company servise offer: custom feeder,2 year warranty,1 year free spare parts,repair service, Video technical support Online supportGuangdong Rich Packing Machinery Co,a machine manufacturer has our own factory,supply and export pharmaceutical medicine machine to all over the world.
| Applicable target | #00-5 capsule, soft capsule,3-25mm tablet,shaped,sugarcoated tablet and pill |
| Filling range | 1-9999 grains (tablets) adjustable |
| Applicable bottle type | 10-500ml round, square bottle |
| voltage | 380/220V 50Hz |
| power | 1.2KW |
| pressure | 0.6Mpa |
| gas consumption | 36～45L/min |
| weight | 550kg |
| Outline dim.(mm) | 1360×1650×1650mm |
| Number | item | Qty. | Manufacturer |
| 1 | Motor | 1 | Taiwan TQG |
| 2 | Counting photoelectric head | 1 | Taiwan |
| 3 | Bottle photoelectric eye | 1 | Panasonic |
| 4 | Button | 1 | Schneider |
| 5 | Touch screen | 1 | Siemens |
| 6 | CPU | 1 | ST |
| 7 | Power | 1 | Schneider |
| 8 | Pneumatic elements | 1 | Shanghai |
| 9 | earth leakage protection | 1 | Schneider |
Contact Person: Nicole Huang
Tel: 13380063170
RQ-16H Tablet Counting Machine High Speed Automatic Capsule Counter Bottling Gummy
