| Place of Origin: | Guangzhou, China |
| Brand Name: | Rich Packing |
| Certification: | SGS CE ISO 9001 |
| Model Number: | RQ-DSL-16 |
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Standard export wood case the machine is first wrapped with a transparent film, and then bound in a wooden box to ensure the safety of the tablet press machine during transportation. |
| Delivery Time: | 10 working days |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 50 pcs/month |
| Production Capacity: | 5-100 Bottles/min | Accuracy Rate: | ＞99.5% |
|---|---|---|---|
| Applicable Bottle Type: | 500ml Round, Square Bottle | Voltage: | 220V 50Hz |
| Gas Consumption: | 45L/min | Power: | 1.2KW |
| Pressure: | 0.6Mpa | Warranty: | 2 Year |
| High Light: | electronic tablet counting machine,automatic capsule counting machine |
||

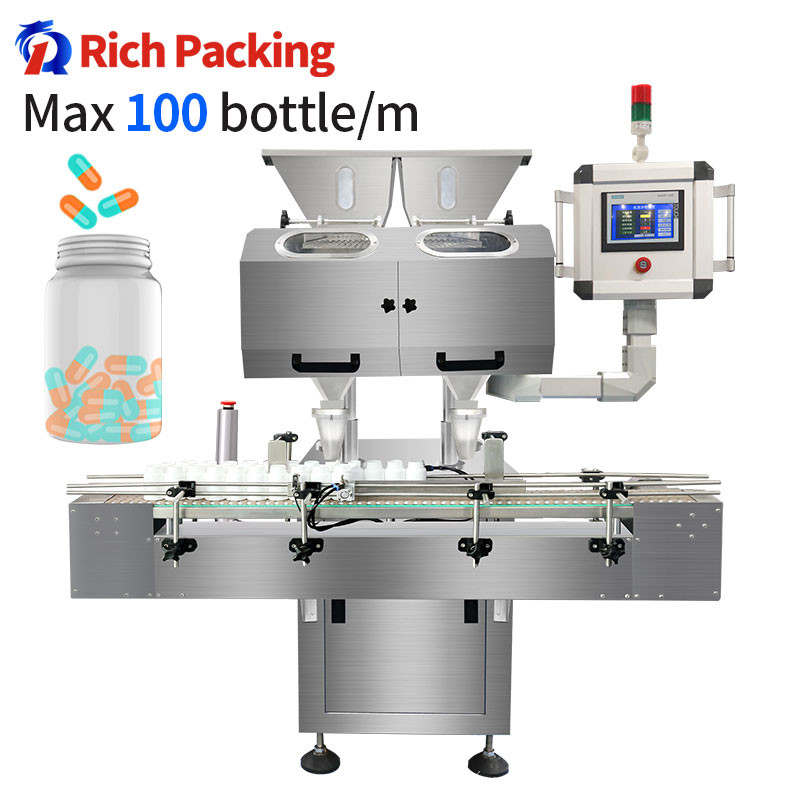

16 Passageway Vibration Automatic Counting Machine, hard Capsules and softgel Counter
machine feature: High accuracy,Good stability,Strong compatibility,Multistage vibration design,High intelligence,High integration,easy operation,low running cost.
our company servise offer: custom feeder,2 year warranty.
| Applicable target | #00-5 capsule, soft capsule, Ø 5.5-20 tablet,shaped,sugarcoated tablet and Ø3-20 pill |
| Filling range | 1-9999 grains (tablets) adjustable |
| Applicable bottle type | 10-500ml round, square bottle |
| voltage | 380/220V 50Hz |
| power | 1.2KW |
| pressure | 0.6Mpa |
| gas consumption | 36～45L/min |
| weight | 550kg |
| Outline dim.(mm) | 1360×1650×1650mm |
| Number | item | Qty. | Manufacturer |
| 1 | Motor | 1 | Taiwan TQG |
| 2 | Counting photoelectric head | 1 | Taiwan |
| 3 | Bottle photoelectric eye | 1 | Panasonic |
| 4 | Button | 1 | Schneider |
| 5 | Touch screen | 1 | Siemens |
| 6 | CPU | 1 | ST |
| 7 | Power | 1 | Schneider |
| 8 | Pneumatic elements | 1 | Shanghai |
| 9 | earth leakage protection | 1 | Schneider |
