Place of Origin: | Guangzhou, China |
Brand Name: | Rich Packing |
Certification: | SGS CE ISO 9001 |
Model Number: | RQ-DSL-48 |
Minimum Order Quantity: | 1 |
---|---|
Price: | Negotiable |
Packaging Details: | Standard export wooden case |
Delivery Time: | 5-8 work days |
Payment Terms: | L/C, , T/T, Western Union |
Supply Ability: | 50 pcs/month |
After-sales Service Provided: | Online Support | Condition: | New |
---|---|---|---|
Application: | Medical | Voltage: | 220V/380V |
Automatic Grade: | Automatic | Packaging Type: | Case |
Warranty: | 1 Year | Usage: | Medical |
Feature: | High-precision | ||
Highlight: | electronic tablet counting machine,automatic capsule counting machine |

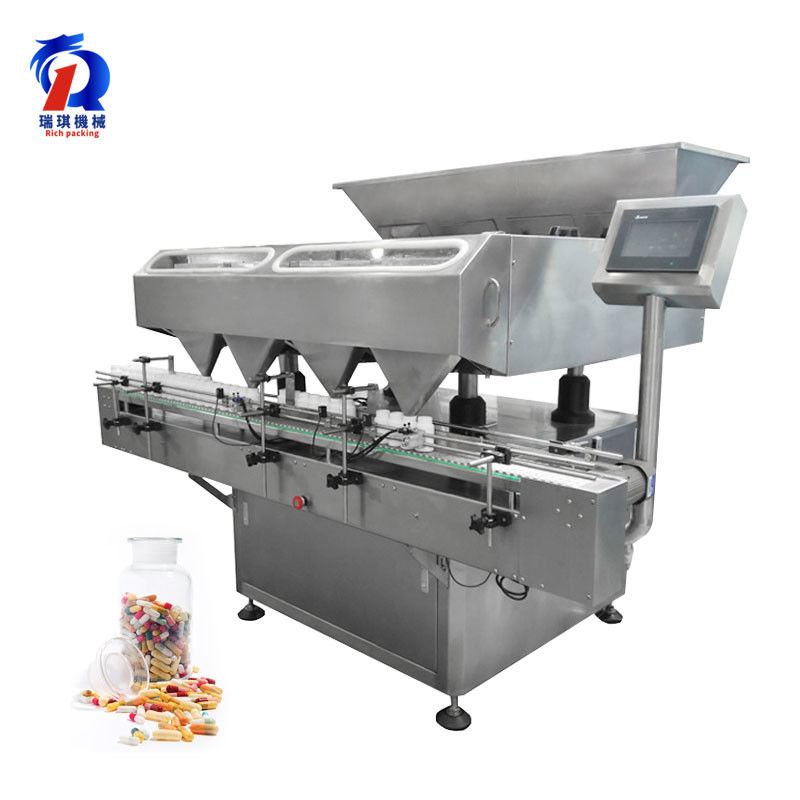

Electronic Large Production 48 Automatic Pill Tablet Superior Capsule Counting Machine
Our factory has a history of 25 years experience in manufacturing. And the total area of our factory is 7996m2 with 12 R&D personnel, 52 units/ set of facilities like laser cutting machine and CNC machining center. With high production efficiency, can produce 3000 units/set of machines. We have obtained SGS, CE and ISO certificates, and won respect and trust from our customers for high quality, quick and efficient services and honesty, like UCB, GSK and Guangzhou Phar. Holdings.
Main Features:
1. High precision. The error of counting and packing in bottle is more than 99.5%, higher than line standard.
2. High speed and efficiency, can use into long-time and large production process.
3. Reverse turning bed packing mechanism has won the national patent, no damage to the material when close or open.
4. Good stability. Adopt anti high dust electronic counting technology, can still operate normally under the high dust environment.
5. Good compatibility and wide suitable range. It can count and split charge the material including tablets, hard capsules, soft capsules ( transparent and non-transparent).
6. Various oscillatory level design. Can effectively separate and accurate count the large, irregular and stick material.
7. High intelligence. Inspect online to the bottles, material and many faults and automatically alarm.
8. High integration level.Intelligent joint control between the last and next processes according to space and production capacity , perfect coordination, save the labor.
9.Easy operation. Small occupying area, no need using any tools to diassemble and clear, quick and convenient.
10.Low runing cost. High cost performance, low using and maintenance cost, equipped with consumable accessories for one year.
11.Feeder can be customer-made according to the actual demand for some stick and special material.(optional)
12.Reliable quality. The main machine adpots stainless steel 304 and material contacting parts adopt stainless steel 316.
13.Equipped with dust-collecting box, collect the powder and reduce pollution.
Model | RQ-DSL-48A |
Patent:flip board structure |
The top and bottom closed design obtains the national new patent, does not damage the material when working |
High power photoelectric detection device |
Adopting electronic counting technology of high dust resistance, still running normally in high dust environment, accuracy rate > 99.5% |
Capacity | 40-150bottles/min |
Applicable target | Φ5.5~12mm tablets,Φ3~12mm pills, 00~5# hard and soft capsules |
Applicable bottle type | 10-500ml round, square bottle |
accuracy rate | >99.5% |
Main material | contact with the material all use 316 stainless steel material. |
Voltage | 380/220V 50Hz |
Power | 2.2kW |
Weight | 620 kg |
Outline dim. | 2160*1350*1650(mm) |
Packing/size | Standard export wooden case/2250*1450*1600mm |
Warranty | 1 year |
Method of Warranty |
Remote telephone and video guidance or home service according to customer requirements |
Time of delivery | Shipped in 35 days after payment |
Payment term | L/C,T/T,Western Union |
Port of loading | Guangzhou or Shanghai |
Service Commitment
Product Quality
All products are guaranteeded for one year, if any problems happen in guarantee period.our company will maintain for free.
Spare Part Replacement
First mold for free,more than 50% discount if more order.
Technical Service
We can provide design, installation and debugging services or remote maintanance teaching.
Delivery The Cargo To Nearest Port
We will arrange the shipment and delivery the cargo to your nearest port,save time and cost.
Detail Product Information
Provide picture,video,instruction and product brochure.
Reply Timely
24 hours hot line ,we will reply email within 12 hours.
