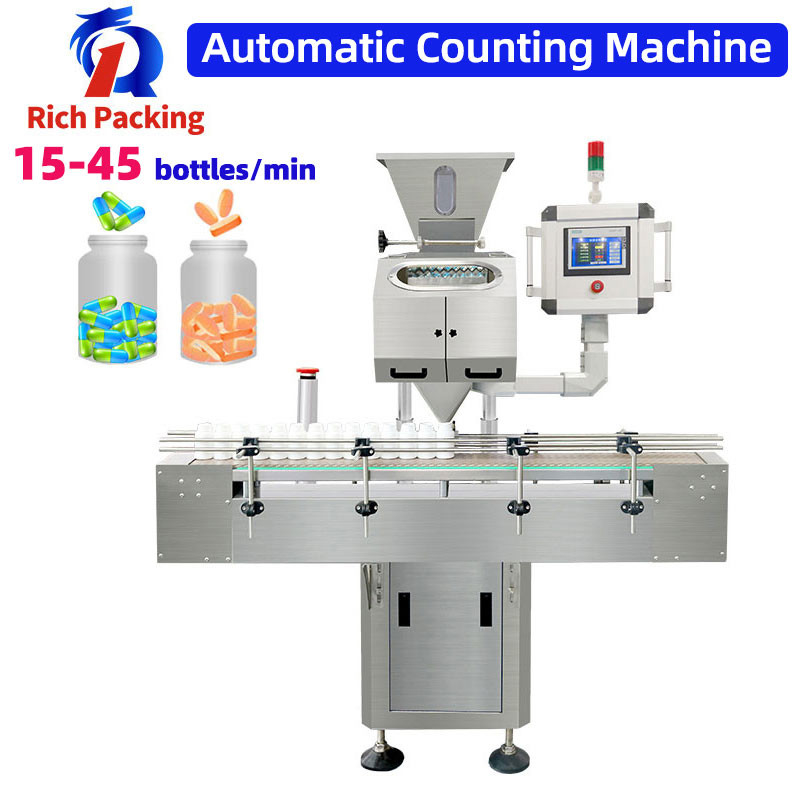

8 Channel Automatic Counting Machine Bottle Washing Filling Capping Machine Line

8 Channel Automatic Counting Machine Bottle Washing Filling Capping Machine Line

  • 8 Channel Automatic Counting Machine Bottle Washing Filling Capping Machine Line
  • 8 Channel Automatic Counting Machine Bottle Washing Filling Capping Machine Line
  • 8 Channel Automatic Counting Machine Bottle Washing Filling Capping Machine Line
  • 8 Channel Automatic Counting Machine Bottle Washing Filling Capping Machine Line
8 Channel Automatic Counting Machine Bottle Washing Filling Capping Machine Line
Product Details:
Place of Origin: Guangzhou, China
Brand Name: Rich Packing
Certification: SGS CE ISO 9001
Model Number: RQ-DSL-8
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Standard export wooden case
Delivery Time: 20-30 working days
Payment Terms: L/C, , T/T, Western Union
Supply Ability: 50 pcs/month
Contact Now
Detailed Product Description
Filling Range: 9999 Grains (tablets) Adjustable Applicable Bottle Type: 10-500ml Round, Square Bottle
Outline Dim.(mm): 1400×1350×1650mm Motor: Taiwan TQG
High Light:

8 Channel Automatic Counting Machine

,

9999 Grains Automatic Counting Machine

,

Bottle Filling Automatic Counting Machine

8 Channel Automatic Counting Machine Bottle Washing Filling Capping Machine Line





8 Channel Automatic Counting Machine Bottle Washing Filling Capping Machine Line 0

8 Channel Automatic Counting Machine Bottle Washing Filling Capping Machine Line 1

8 Channel Automatic Counting Machine Bottle Washing Filling Capping Machine Line 2

8 Channel Automatic Counting Machine Bottle Washing Filling Capping Machine Line 3

8 Channel Automatic Counting Machine Bottle Washing Filling Capping Machine Line 4

This model is the third generation innovative product of our company. It can pack all kinds of tablets and capsules (transparent or opaque hard capsules, soft capsules, pills, etc.) in the range of 3-20 mm.Meet the requirements of GMP, suitable for scientific research institutions, hospitals, small and medium-sized pharmaceutical factories, health products factory production packaging.

1. Counting Lane

Multistage Vibration Lane , Suitable For 3-20 mm Materials Can Be Effectively Separated

2. Material Observation Window

Material Quantity Can Be Observed At Any Time And Added In-time When Insufficient Materials Is Found

3. Patent Flip-Flop

No Material Damage When Opening And Closing
Patent No:ZL 2016 2 0909949.8



Production capacity 10~30 bottles/min
accuracy rate >99.5%
Applicable target #00-5 capsule, soft capsule, Ø 5.5-20 tablet,shaped,sugarcoated tablet and Ø3-20 pill
Filling range 2-9999 grains (tablets) adjustable
Applicable bottle type 10-500ml round, square bottle
voltage 380/220V 50Hz
power 0.6KW
pressure 0.6Mpa
weight 300kg
Outline dim.(mm) 1400×1350×1650mm
