Place of Origin: | Guangzhou, China |
Brand Name: | Rich Packing |
Certification: | CE, cGMP, RoHS, LVD, EMC |
Model Number: | ZP-17/19 |
Minimum Order Quantity: | 1 |
---|---|
Price: | Negotiable |
Packaging Details: | Standard export wooden case |
Delivery Time: | 20-30 working days |
Payment Terms: | L/C, D/P, T/T |
Supply Ability: | 50 pcs/month |
Production Capacity: | 35000 Pcs/h | Power: | 220V 50Hz |
---|---|---|---|
Highlight: | pill press machine,capsule press machine |

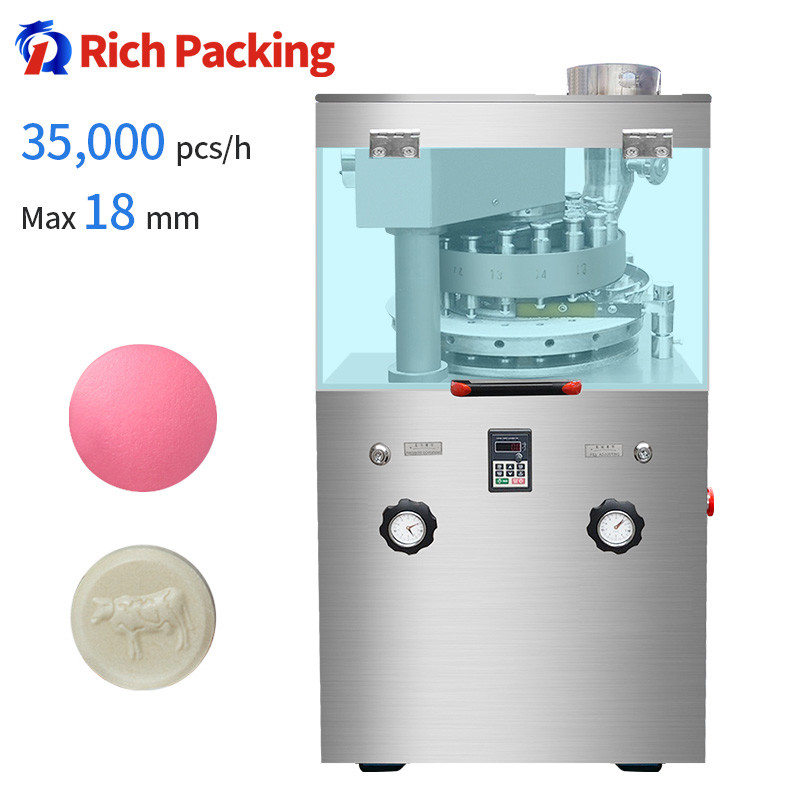

Automatic Tablet Compression Machine Pharmaceutical Herbal Tablet Making Machine for pill tablet
The Automatic Tablet Compression Machine is a highly advanced piece of equipment used in the pharmaceutical industry for the production of high-quality pill tablets. This machine is designed to compress and form tablets from a variety of powders, granules, and herbal ingredients.
The machine is fully automatic, with advanced technology that ensures precise and consistent tablet formation. It is also highly versatile, capable of producing tablets in a range of shapes, sizes, and thicknesses.
The Automatic Tablet Compression Machine is ideal for pharmaceutical companies looking to improve their tablet production efficiency and quality control. It is also commonly used in the production of herbal supplements and other dietary supplements.
The machine is made of high-quality materials, including stainless steel and other corrosion-resistant alloys. This ensures that it is durable and easy to clean and maintain.
The Automatic Tablet Compression Machine is also equipped with a range of safety features, including automatic stop systems and emergency shut-off buttons. This ensures that the machine can be operated safely and reliably at all times.
Overall, the Automatic Tablet Compression Machine is a highly advanced and efficient solution for pharmaceutical and herbal supplement companies looking to improve their tablet production efficiency and quality control.
Model | ZP-17 | ZP-19 |
Dies No. | 17 | 19 |
Max. Pressure | 50KN | 50KN |
Max. Dia. of Tablet | 18mm | 13mm |
Max. Depth of Filling | 15mm | 15mm |
Max.Thickness of Tablet | 6mm | 6mm |
Rotary Speed | 32r/min | 32 r/min |
Max. Production Capacity | 20000-35000pcs/min | 25000-45000 pcs/min |
Turntable working diameter | 320mm | 320mm |
Middle mold Dia. | 26mm | 26mm |
Middle mold height | 22mm | 22mm |
Upper and lower Dia. | 22mm | 22mm |
upper and lower Length | 115mm | 115mm |
power | 2.2kw | 2.2kw |
voltage | 220v/380v | 220v/380v |
Outline size | 880*750*1600mm | 880*750*1600mm |
weight | 500Kg | 520kg |
