| Place of Origin: | Guangzhou, China |
| Brand Name: | Rich Packing |
| Certification: | SGS CE ISO 9001 |
| Model Number: | RQ-DSL-32B |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export wooden case |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 50 pcs/month |
| Applicable Material: | Φ5.5~20mm Tablets,Φ3~20mm Pills, 00~5# Hard And Soft Capsules | Production Capacity: | 120 Bottles/min |
|---|---|---|---|
| Accurate Rate: | ＞ 99.5% | Total Power: | 2.2 KW |
| Gas Consumption: | 45-60 L/min | ||
| High Light: | electronic tablet counting machine,automatic capsule counting machine |
||

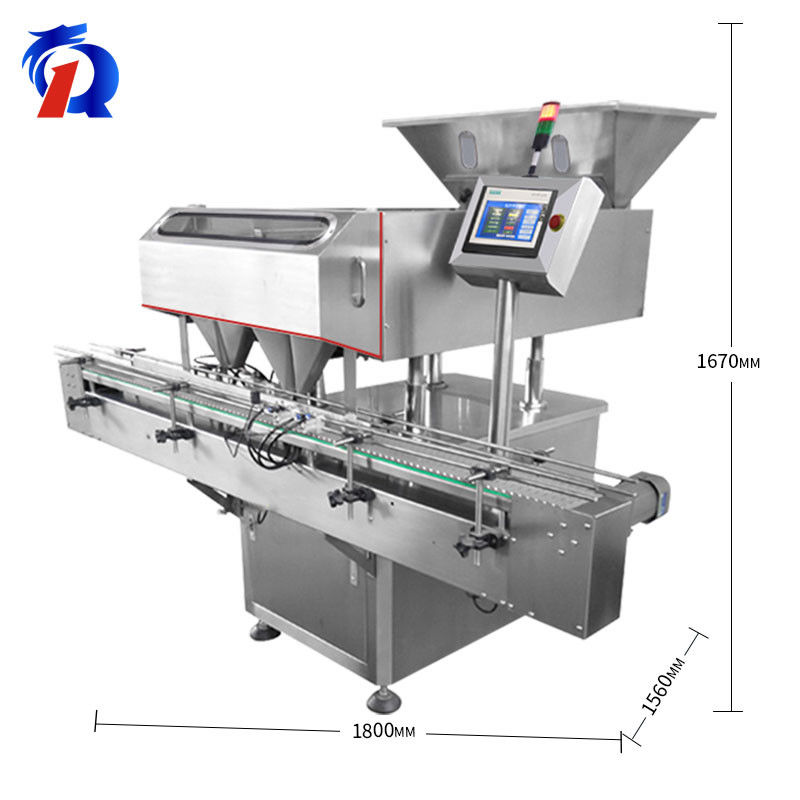

Tablet Capsule Counting And Filling Machine Electric Automatic Pill Counting Machine
This product is the third generation of creative products in our company, it can count and pack of solid particles, such as tablets, capsules (transparent or non-transparent hard capsules, soft capsules), pills from 3 to 20mm wide into bottles,boxes and bags. It meets the requirements of GMP, can form an automatic production line with bottle unscrambler,paper inserting machine,dryer inserting machine,capping machine,electromagnetism aluminum foil sealing machine and stick labeller, suitable for research institutions, hospitals, health care product plants with large production.
1. High precision. The accurancy of counting and packing in bottle is higher than 99.5%, higher than line standard.
2. High speed and efficiency, can use into long-time and large production process.
3. Reverse turning bed packing mechanism has won the national patent, no damage to the material when close or open.
| After-sale | Engineers Available To Service Machinery Overseas | |||
| DSL Counting Machine Model | 8 | 12 | 16 | 24 |
| Applicable material | Φ5.5~20mm tablets,Φ3~20mm pills, 00~5# hard and soft capsules | |||
| Power | 0.6Kw | 0.6Kw | 1.2Kw | 1.5Kw |
| Max Capacity | 30 bottles/min | 40 bottles/min | 80 bottles/min | 90 bottles/min |
| Dimension(mm) | 1200*1280*1560 | 1360*1650*1650 | 1600*1400*1560 | 2000*1600*1680 |
| Weight | 210Kg | 490Kg | 640Kg | 690Kg |
| Spare Item | Manufacturer |
| Motor | Taiwan TQG |
| Counting Photoelectric Head | Taiwan Everlight |
| Bottle Photoelectric Eye | Japan Panasonic |
| Button | France Schneider |
| Touch Screen | Germany Siemens |
1.Bottle photoelectric eye
High sensitivity for bottles of different colors and shapes
2.Siemens touch screen
simple and stable operation, complete functions
Contact Person: Nicole Huang
Tel: 13380063170
