Only create value for our customers, we have the value of existence.
 |
| Place of Origin: | Guangzhou, China |
| Brand Name: | Rich Packing |
| Certification: | CE/ISO 9001/SGS |
| Model Number: | zp-27 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export wooden case |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 50 pcs/month |

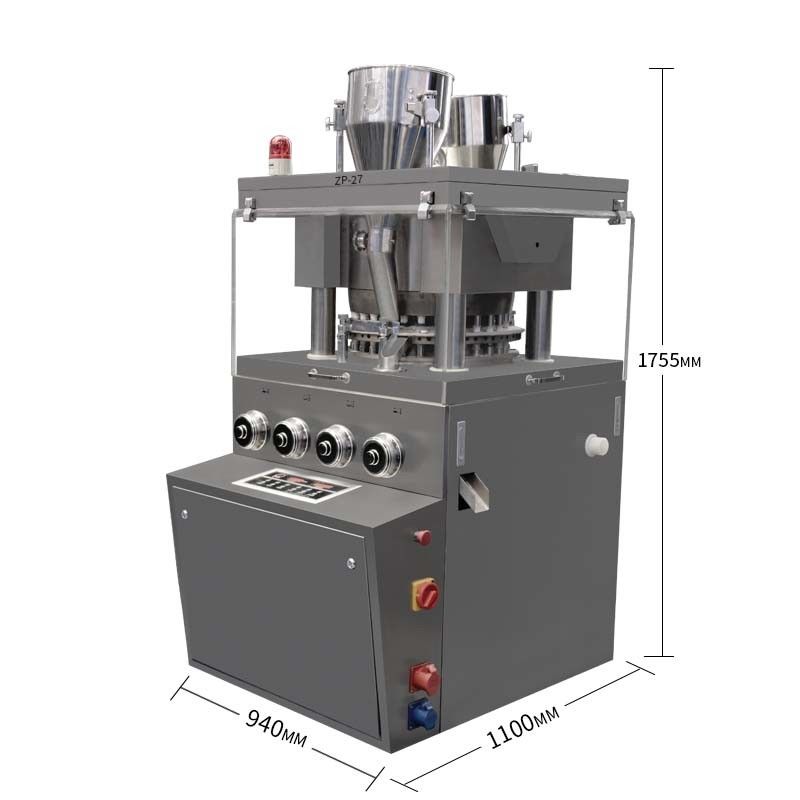

| Dimension(L*W*H): | 1100*940*1755mm | Type: | Rotary Tablet Press |
|---|---|---|---|
| Applicable Material: | Powder,granule | Rotary Speed: | 5~28 R/min |
| Warranty: | 1 Year | ||
| Highlight: | pill press machine,capsule press machine |
||
| Model | ZP-27 | ||
| patent | Casting subtraction structure patent | ||
| Capacity | 90000 pcs/h | ||
| Applicable material | Powder,granule | ||
| Applicable tablet types | round tablets, special-shaped tablets, double color and annular tablet. | ||
| Max. pressure | 100KN | ||
| Max. tablet diameter | 25mm | ||
| Maximum press thickness | 8mm | ||
| GMP requirements |
The main body adopts stainless steel 304, All the contacting parts of the tablet press meet the requirements of "no poison, no odor and corrosion prevention". |
||
| Precision |
The hole of upper punch, lower punch and middle mold, the axis of outer circle to the center of the shaft hole coaxiality is H8 (-0.165/0). The sensitivity of the hand wheel is 0.1mm. |
||
| Power supply | 380/220V/50Hz | ||
| Power | 5.5kw | ||
| Weight | 1800kg | ||
| Outline dim. | 1100×940×1755mm | ||
| Packing/size | Standard export wooden case/1520×1100×2130mm | ||
| Warranty | One year | ||
| Method of Warranty |
Remote telephone and video guidance or home service according to customer requirements |
||
| Time of delivery | Shipped in 25 days after payment | ||
| Payment term | L/C,T/T,Western Union | ||
| Port of loading | Guangzhou or Shanghai | ||
1.Sensitivity of the hand wheel is 0.1mm.
2.With pressure overload protection device. It will start the overload protection through the spring pressure, alarm lights, automatic stop running.
3.The dust extraction device can effectively recover the powder remaining on the turntable, avoid waste and pollution
