| Place of Origin: | Guangzhou, China |
| Brand Name: | Rich Packing |
| Certification: | SGS CE ISO 9001 |
| Model Number: | RQ-DSL-16 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export wooden case |
| Delivery Time: | 15-30working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50pcs/month |
| Filling Range: | 1-9999 Grains (tablets) Adjustable | Accuracy Rate: | ＞99.6% |
|---|---|---|---|
| Power: | 1.2KW | Applicable Target: | #00-5 Capsule, Soft Capsule, Ø 5.5-20 Tablet,shaped,sugarcoated Tablet And Ø3-20 Pill |
| Voltage: | 380V | Pressure: | 0.6Mpa |
| Touch Screen: | Siemens | ||
| High Light: | electronic tablet counting machine,automatic capsule counting machine |
||
| After-sale | Engineers Available To Service Machinery Overseas | |||
| DSL Counting Machine Model | 8 | 12 | 16 | 24 |
| Applicable material | Φ5.5~20mm tablets,Φ3~20mm pills, 00~5# hard and soft capsules | |||
| Power | 0.6Kw | 0.6Kw | 1.2Kw | 1.5Kw |
| Max Capacity | 30 bottles/min | 40 bottles/min | 80 bottles/min | 90 bottles/min |

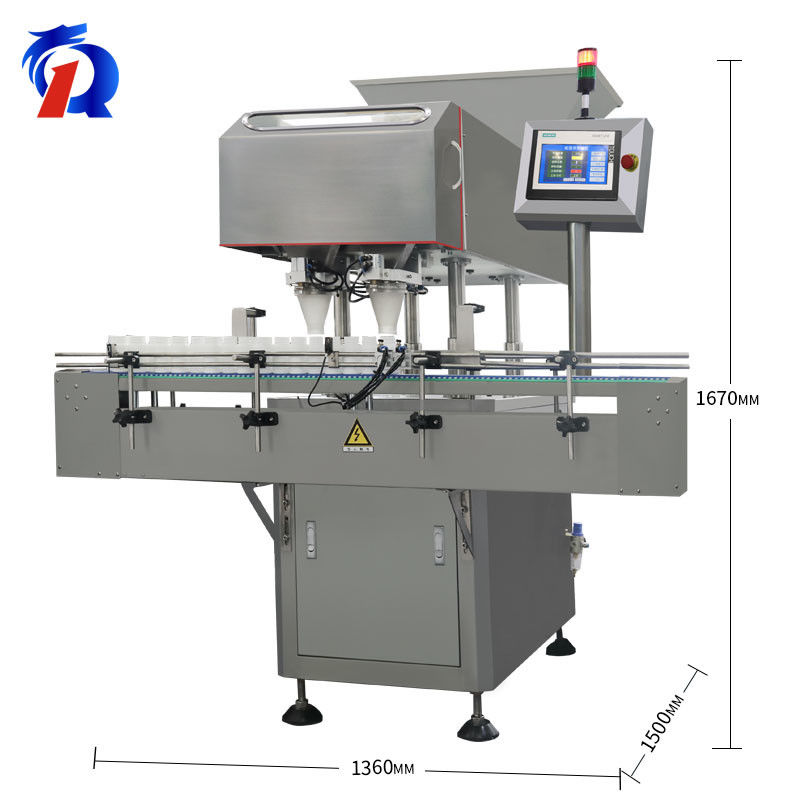

| Dimension(mm) | 1200*1280*1560 | 1360*1650*1650 | 1600*1400*1560 | 2000*1600*1680 |
| Weight | 210Kg | 490Kg | 640Kg | 690Kg |
| Spare Item | Manufacturer |
| Motor | Taiwan TQG |
| Counting Photoelectric Head | Taiwan Everlight |
| Bottle Photoelectric Eye | Japan Panasonic |
| Button | France Schneider |
| Touch Screen | Germany Siemens |

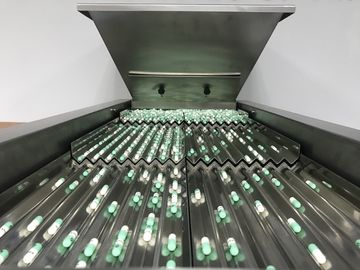

1. Multi-stage vibration design
Can effectively separate and accurate count the large,
irregular and stick material.
2. Flip plate mechanism
The flip plate mechanism obtained the national patent,
and not damage materials during work
Patent number):ZL 2016 2 0909949.8
2.
