| Place of Origin: | Guangzhou, China |
| Brand Name: | Rich Packing |
| Certification: | CE ISO 9001 GMP SGS |
| Model Number: | RQ-DSL-8 |
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export wooden case |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50 pcs/month |

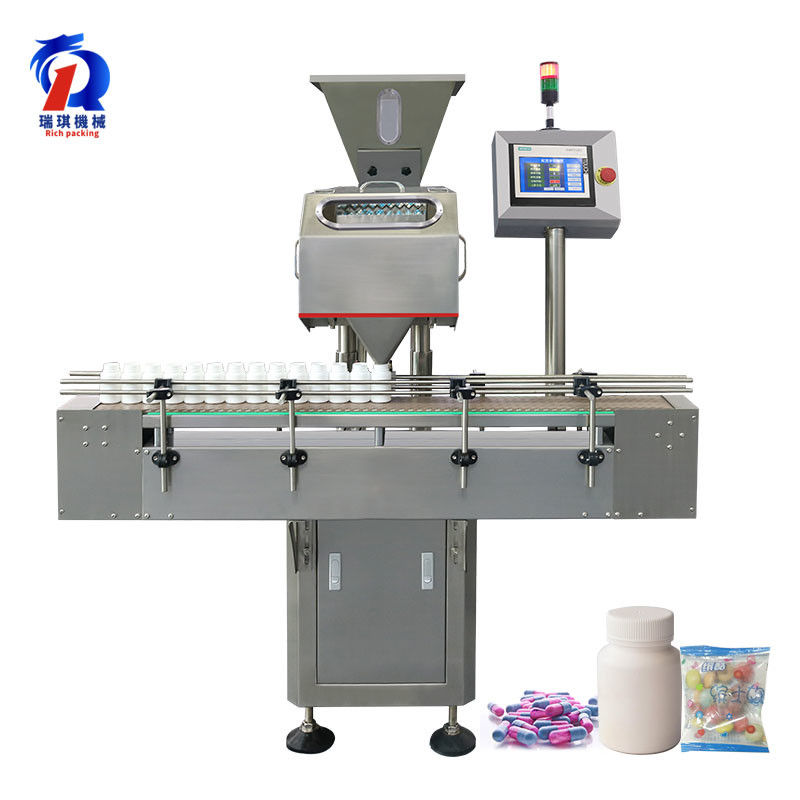

| After-sales: | Engineers Available To Service Machinery Overseas | Product Name: | Automatic Tablet Capsule Counting Machine |
|---|---|---|---|
| Type: | Electronic Counting Machine | Material: | Stainless Steel 304+316 |
| Counting Precision: | 99.9% | Filling Range: | 3000-9999 Pcs (Adjustable) |
| Function: | Counting And Bottle Filling | Application: | Tablets,Capsule,Buttons,Chewing Gum |
| High Light: | electronic tablet counting machine,tablet capsule counting machine |
||
| After-sale | Engineers Available To Service Machinery Overseas | |||
| DSL Counting Machine Model | 8 | 12 | 16 | 24 |
| Applicable material | Φ5.5~20mm tablets,Φ3~20mm pills, 00~5# hard and soft capsules | |||
| Power | 0.6Kw | 0.6Kw | 1.2Kw | 1.5Kw |
| Max Capacity | 30 bottles/min | 40 bottles/min | 80 bottles/min | 90 bottles/min |
| Dimension(mm) | 1200*1280*1560 | 1360*1650*1650 | 1600*1400*1560 | 2000*1600*1680 |
| Weight | 210Kg | 490Kg | 640Kg | 690Kg |
| Spare Item | Manufacturer |
| Motor | Taiwan TQG |
| Counting Photoelectric Head | Taiwan Everlight |
| Bottle Photoelectric Eye | Japan Panasonic |
| Button | France Schneider |
| PLC | Germany Siemens |
Multistage vibration design.Large size, irregular, high viscosity materials can be effectively separated, accurate count.
The flip-flop subassembly mechanism obtains the national patent, does not damage the material when opening and closing
