| Place of Origin: | Guangzhou, China |
| Brand Name: | Rich Packing |
| Certification: | CE/ISO 9001/SGS/GMP |
| Model Number: | RQ-DSL-16B |
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export wooden case |
| Delivery Time: | 10 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50 pcs/month |
| After-sales: | Engineers Available To Service Machinery Overseas | Production Capacity: | 10-80 Bottles/min |
|---|---|---|---|

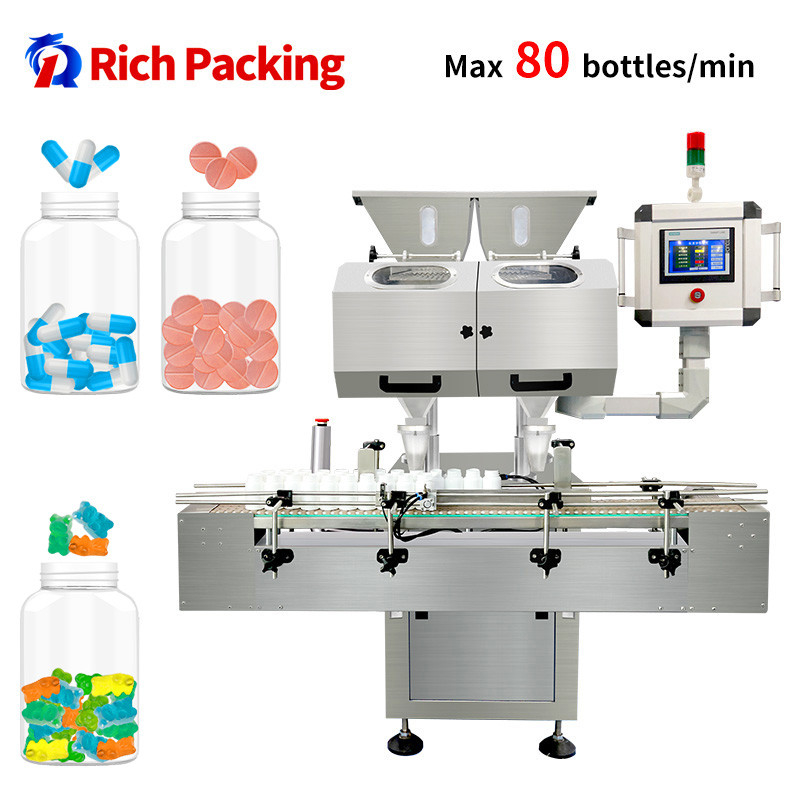

| Product Name: | Tablet Capsule Counting Machine | Counting: | Tablets, Capsules,Candy...etc |
| Usage: | Counting And Bottling Line | Power: | 0.6 Kw |
| Dimension: | 120*128*156 Cm | Weight: | 490 Kg |
| High Light: | tablet capsule counting machine,automatic capsule counting machine |
||
This Counting And Bottling Machine can pack all kinds of tablets and capsules (transparent or opaque hard capsules, soft capsules, pills, etc.) in the range of 3-20 mm.Multistage vibration design.Large size, irregular, high viscosity materials can be effectively separated, accurate count, The accuracy rate of several canned grains is more than 99.5%
| After-sales Provide | Engineers Available To Service Machinery Overseas | |||
| Counting Machine Model | 8 | 12 | 16 | 24 |
| Applicable material | Φ5.5~20mm tablets,Φ3~20mm pills, 00~5# hard and soft capsules | |||
| Power | 0.6Kw | 0.6Kw | 1.2Kw | 1.5Kw |
| Max Capacity | 30 bottles/min | 40 bottles/min | 80 bottles/min | 90 bottles/min |
| Dimension(mm) | 1200*1280*1560 | 1360*1650*1650 | 1600*1400*1560 | 2000*1600*1680 |
| Weight | 210Kg | 490Kg | 640Kg | 690Kg |
| Spare Item | Manufacturer |
| Motor | Taiwan TQG |
| Counting Photoelectric Head | Taiwan Everlight |
| Bottle Photoelectric Eye | Japan Panasonic |
| Button | France Schneider |
| PLC | Germany Siemens |
Can pack all kinds of tablets and capsules (transparent or opaque hard capsules, soft capsules, pills, etc.) in the range of 3-20 mm

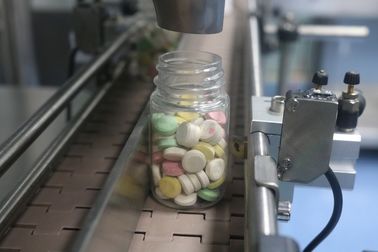

Counting Photoelectric Head
Taiwan Everlight Brand,Filling Accuracy Rate Over 99.5%,Over Standard In Market
316 Stainless Steel Of Feeder
For Easy Clogging And Special Materials,customized According To Actual Needs
