| Place of Origin: | Guangzhou, China |
| Brand Name: | Rich Packing |
| Certification: | CE/ISO 9001/SGS/GMP |
| Model Number: | RQ-DSL-16B |
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export wooden case |
| Delivery Time: | 7 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50 pcs/month |
| After-sales: | Engineers Available To Service Machinery Overseas | Product Name: | Tablet Capsule Counter Machine |
|---|---|---|---|
| Suitable Materials: | In The Range Of 3-20mm | Production Capacity: | 10-40 Bottles/min |
| Counting: | Tablets, Capsules,Pills,Candy,Buttons,Chewing Gum | Function: | Counting And Bottle Filling |
| Dimension: | 120*128*156 Cm | Weight: | 490 Kg |
| High Light: | tablet capsule counting machine,automatic capsule counting machine |
||

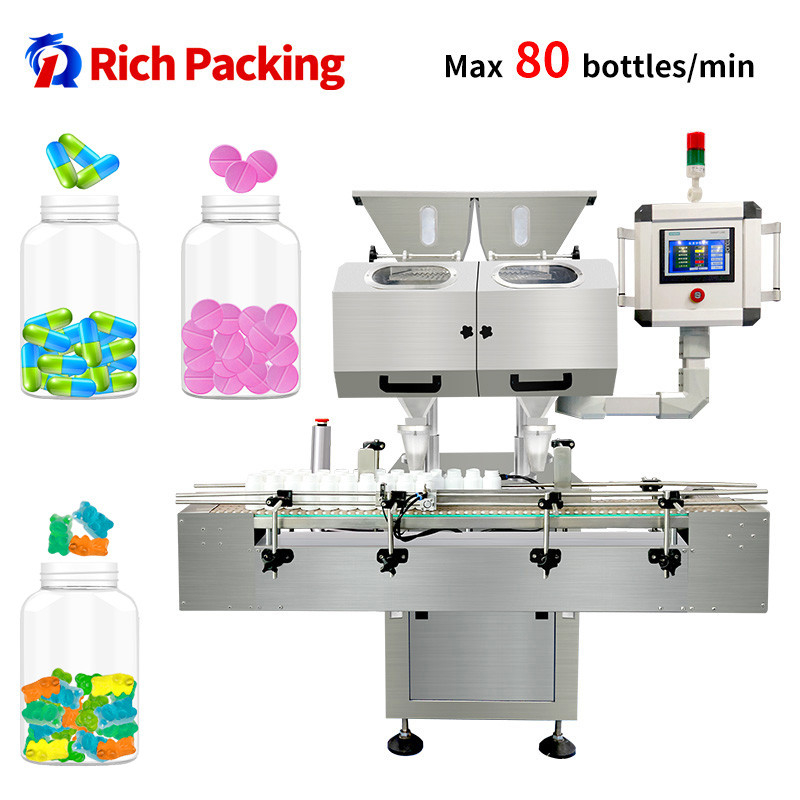

This RQ-DSL-12 Counting And Bottling Machine is the third generation innovative product of our company. It can pack all kinds of tablets and capsules (transparent or opaque hard capsules, soft capsules, pills, etc.) in the range of 3-20 mm.Multistage vibration design.Large size, irregular, high viscosity materials can be effectively separated, accurate count, The accuracy rate of several canned grains is more than 99.5%
| After-sales Provide | Engineers Available To Service Machinery Overseas | |||
| Counting Machine Model | 8 | 12 | 16 | 24 |
| Applicable material | Φ5.5~20mm tablets,Φ3~20mm pills, 00~5# hard and soft capsules | |||
| Power | 0.6Kw | 0.6Kw | 1.2Kw | 1.5Kw |
| Max Capacity | 30 bottles/min | 40 bottles/min | 80 bottles/min | 90 bottles/min |
| Dimension(mm) | 1200*1280*1560 | 1360*1650*1650 | 1600*1400*1560 | 2000*1600*1680 |
| Weight | 210Kg | 490Kg | 640Kg | 690Kg |
| Spare Item | Manufacturer |
| Motor | Taiwan TQG |
| Counting Photoelectric Head | Taiwan Everlight |
| Bottle Photoelectric Eye | Japan Panasonic |
| Button | France Schneider |
| PLC | Germany Siemens |
Intelligence Monitoring
Japan Panasonic Bottle Photoelectric Eye,More Convenient To Adjustment And High Stability
Multistage Vibration Lane
Irregular,High Viscosity 3-20 mm Materials Can Be Effectively Separated
Counting Line
Can be based on the size of the customer site, output, front and back of the process line control, improve efficiency, save labor.
