Place of Origin: | Guangzhou, China |
Brand Name: | Rich Packing |
Certification: | CE/ISO 9001/SGS |
Model Number: | ZP-35 |
Minimum Order Quantity: | 1 PC |
---|---|
Price: | Negotiable |
Packaging Details: | Standard export wooden case |
Delivery Time: | 20-30 working days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 30 pcs/month |
After-sale Provide: | Engineers Available To Service Machinery Overseas | Production Capacity: | 130000 TPcs/h |
---|---|---|---|
Press Material: | Herbal Powder/Granule/Pellet | Tablet Shape: | Round/Irregular/Double Color/Annular Tablet |
Max. Press Diameter: | 15mm | Max. Press Thickness: | 6mm |
Function: | Tableting Machine | Free With: | One Set Mold+Vacuum Cleaner |
Highlight: | pill press machine,capsule press machine |

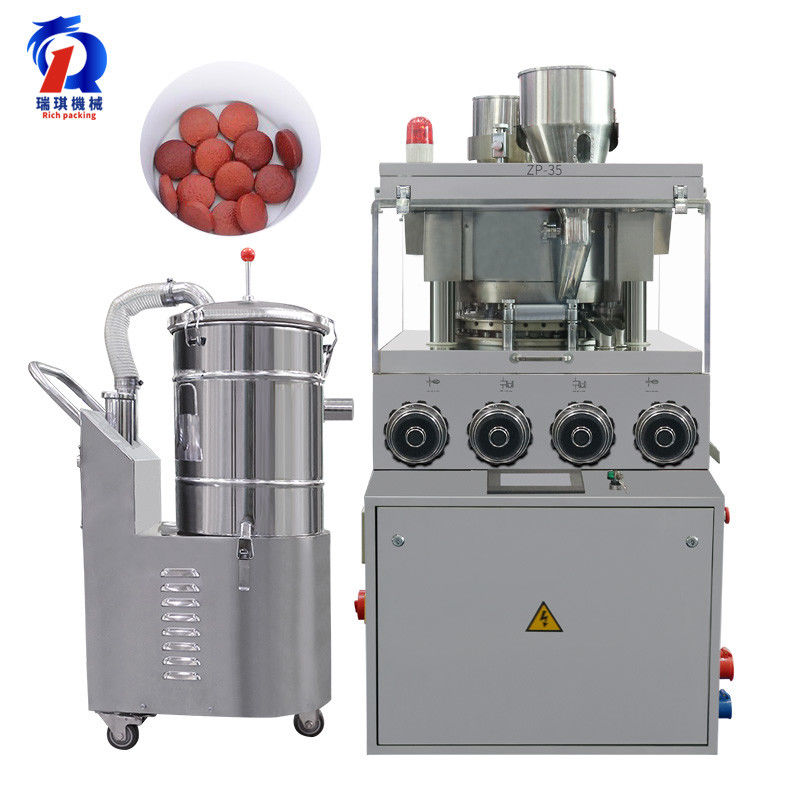

Siemens PLC Control Double Layer Color Candy Tableting Press Machine
ZP-35 double pressure rotary tablet press machine suitable for continuously pressing powder and particle into special-shaped tablets, double color and annular tablet. The tableting machine core components are all famous brand products such as Germany SIEMENS and Japanese OMRON, with long service life and low failure rate.
ZP Model | ZP-20 | ZP-25 | ZP-35 | ZP-45 |
Power | 4Kw | 7.5Kw | 4Kw | 5.5Kw |
Production Capacity | 40000 Pcs/h | 60000 Pcs/h | 130000 Pcs/h | 200000 Pcs/h |
Pressure | 80KN | 100KN | 80KN | 100KN |
Weight | 1200Kg | 2000Kg | 1400Kg | 1800Kg |
Spare Item | Manufacturer |
Overload Protector | Self Manufacture |
Intelligent Lubrication System | American BIJUR DELIMON |
Frequency Converter | Taiwan Delta |
AC Contactor | Germany Siemens |
Relay | Japan Omron |
This Tablet Press Machine Adopts Double Pressure And Output, With 35 Sets Of Mold, Maximum Capacity 130000 Tablets/hours
Intelligent lubrication system. The technology of BIJUR DELIMON, USA, is used to provided timely, quantitative and timely refueling for parts that need lubrication. The quantity of oil can be flexibly adjusted according to the specific environment of customers.
Lower pressure wheel shaft and the lower rail guide are installed with the casting subtraction structure (New Patent), which is convenient for disassemble, maintenance and replacement
