| Place of Origin: | Guangzhou, China |
| Brand Name: | Rich Packing |
| Certification: | CE/ISO 9001/SGS |
| Model Number: | RQ-DSL-8 |
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export wooden case |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 pcs/month |
| Name: | Tablet Capsule Counting And Bottling Machine | Production Capacity: | 10~30 Bottles/min |
|---|---|---|---|
| Accuracy Rate: | ＞99.5% | Applicable Target: | 00-5 Capsule, Soft Capsule, Ø 5.5-20 Tablet,shaped,sugarcoated Tablet And Ø3-20 Pill |
| Voltage: | 380/220V 50Hz | Power: | 0.6 Kw |
| Filling Range: | 2-9999 Grains (tablets) Adjustable | Bottle Shape: | Round, Square, Oval |
| Applicable Bottle Type: | 10-500ml Round, Square Bottle | ||
| High Light: | electronic tablet counting machine,tablet capsule counting machine |
||

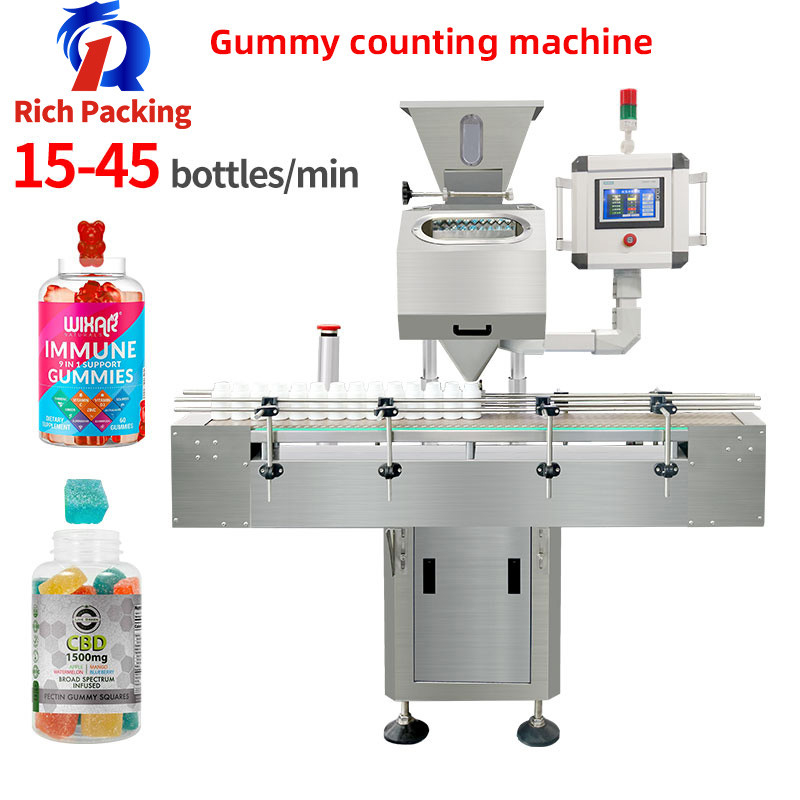

PLC Touch Control 8 Channel Automatic Counting Machine Bottling Gummy Bear Candy Tablet Capsule
| Spare Item | Qty. | Manufacturer |
| Motor | 1 | Taiwan TQG |
| Counting Photoelectric Head | 1 | Taiwan Everlight |
| Bottle Photoelectric Eye | 1 | Japan Panasonic |
| Button | 1 | France Schneider |
| PLC | 1 | Germany Siemens |
* Adopt Japan Panasonic Bottle Photoelectric Eye,High Stability,More Convenient To Adjustment
* High Power Taiwan Everlight Brand Counting Photoelectric Head,Couting And Filling Accuracy Rate Over 99.5%
|
After-sales |
Engineers Available To Service Machinery Overseas | |||
| DSL Counting Machine Model | 8 | 12 | 16 | 24 |
| Applicable material | Φ5.5~20mm tablets,Φ3~20mm pills, 00~5# hard and soft capsules | |||
| Power | 0.6Kw | 0.6Kw | 1.2Kw | 1.5Kw |
| Max Capacity | 30 bottles/min | 40 bottles/min | 80 bottles/min | 90 bottles/min |
| Dimension(mm) | 1200*1280*1560 | 1360*1650*1650 | 1600*1400*1560 | 2000*1600*1680 |
| Weight | 3000Kg | 490Kg | 640Kg | 690Kg |
