| Place of Origin: | Guangzhou, China |
| Brand Name: | Rich Packing |
| Certification: | CE ISO SGS |
| Model Number: | ZP-20 |
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export wooden case |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50 pcs/month |
| Product Name: | Fully Automatic Rotary Tablet Pill Press Machine | Item Type: | Tablet Pill Press Machine |
|---|---|---|---|
| Power Supply: | 220V/380V/50HZ | Max Pressure: | 80 KN |

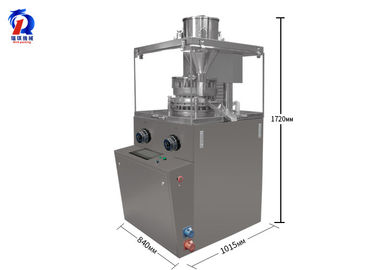

| Production Capacity: | 40000 Pcs/h | Dimension: | 840*1015*1720mm |
| Weight: | 1200kg | ||
| Highlight: | pill press machine,capsule press machine |
||
2:Tablet press machine
3:Milk tablet press machine
4:Big tablet press machine
5:Rotary tablet press machine

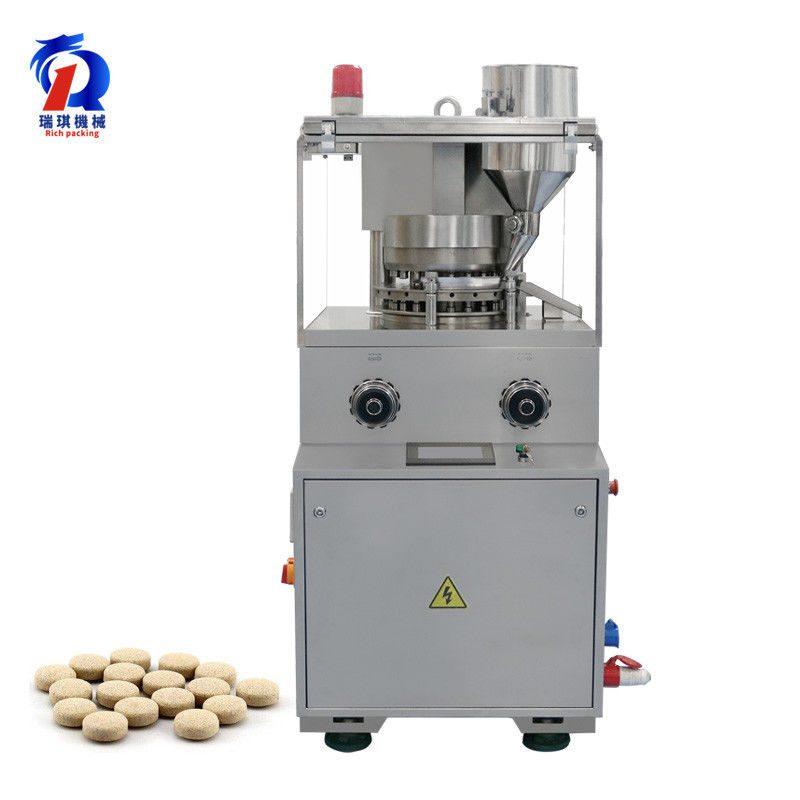

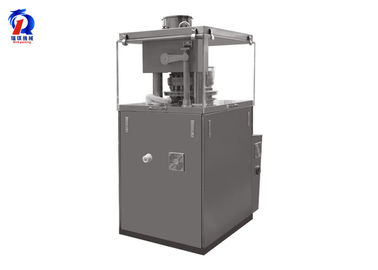

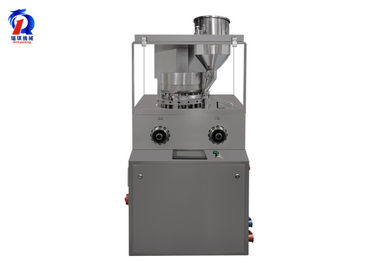

ZP-20 is a kind of automatic rotary tablet press machine and is suitable for continuously pressing
powder and particle into round tablets, special-shaped tablets, double color and annular tablet.
ZP 20 Tablet press machine is the preferred product in pharmaceutical, chemical, electronics, food and
other enterprises in production, Tablet press machine is also suitable for pressing that material that is
difficult formed into tablet, meet the requirements of GMP production.
| ZP Model | ZP-20 | ZP-25 | ZP-35 | ZP-45 |
| Power |
4Kw |
7.5Kw | 4Kw | 5.5Kw |
| Production Capacity | 4W Pcs/h | 6W Pcs/h | 13W Pcs/h | 20W Pcs/h |
| Pressure | 800KN | 100KN | 80KN | 100KN |
| Weight | 1200Kg | 2000Kg | 1400Kg | 1800Kg |
| Spare Item | Specification | Manufacturer |
| Overload Protector | Self Design | Self Manufacture |
| Intelligent Lubrication System | American BIJUR DELIMON | American BIJUR DELIMON |
| Frequency Converter | VFD037B43B | Taiwan Delta |
| AC Contactor | 3TB40 22-OXMO | Germany Siemens |
| Relay | MY-2NJ MY-4NJ | Japan Omron |
|
The Tablet Press Machine Turntable Is Made Of Nodular Cast Iron And Strictly Implemented For 12 Months, Which Is Hard, Wearable, Non-toxic And Smooth |
| Zp-20 Tablet Pill Press Machine Upper Punch Adopt "down Pressure Guide", Will Not Jump, Running More Smoothly. | |
|
Lower Pressure Wheel Shaft And The Lower Rail Guide Are Installed With The Casting Subtraction Structure (new Patent) Press Machine, Which Is Convenient For Disassemble, Maintenance And Replacement. |
| Zp-20 Tablet Press Machine Feeder Is Tin Bronze (ZQSn6-6-3) Material, The Surface Of Nickel Chromium, The Bottom Roughness Ra≤0.8μm. | |
|
Bijur Delimon,usa Intelligent Lubrication System, Is Used To Provided Timely, Quantitative And Timely Refueling For Parts That Need Lubrication. The Quantity Of Oil Can Be Flexibly Adjusted According To The Specific Environment Of Customers. |
