| Place of Origin: | Guangzhou, China |
| Brand Name: | Rich Packing |
| Certification: | CE ISO SGS |
| Model Number: | NJY-100c |
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export wooden case |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50 pcs/month |
| Product Name: | Fully Automatic Liquid Filling Machine Capsule | Item Type: | Capsule Filling Machine |
|---|---|---|---|
| Production Capacity: | 6000 Pcs/h | Capsule Size: | 00-3# Gelatin Capsule, Methyl Cellulose, Plant Capsule |
| Capsule Filling: | Oily Solution, Solution, Suspension And Paste | Power Supply: | 380V/220V 50Hz |
| Total Power: | 3.5 Kw | Material: | 304/316L Stainless Steel |
| Filling Error: | ≤2% | Filling Rate: | Empty Capsule 99.9%;Full Capsule 99.8% |
| High Light: | liquid capsule filler,capsule liquid filling and sealing machine |
||
1.Liquid Capsule Filling Machine
2.Fish Oil filling machine
3.Lquid Gel Capsule Machine
4.Oil Capsule Filling Machine
5.Liquid Capsule Filling And Sealing Machine

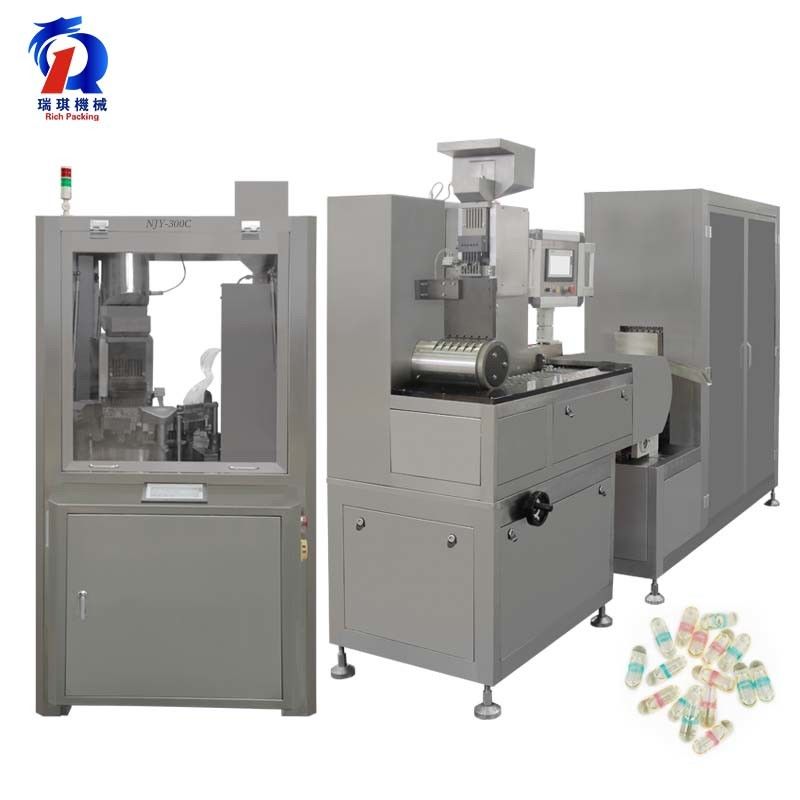

GMP Standard NJY-100C Capsule Liquid Filling Machine Has Wide Applicability. Liquid Drugs Such As Oily Solution, Solution, Suspension And Paste Can Be Canned. This Liquid Capsule Capsule Filling Machine Can Be Selected In Gelatin Capsules, Hydroxypropyl Methylcellulose (HPMC) And Plant Capsules According To The Actual Needs Of Customers.the Bio-availability Of Poorly Soluble Drugs (poor Water Solubility), The Preferred Equipment Of Low Melting Point, Low Drug Canned Drug Dose Or Potent Drugs, Hygroscopic Drugs, Demanding The Release .
| Machine Mold | NJY-100C | NJY-300C | NJY-600C |
| Capsule Size | (00-3#) size capsule | ||
| Power | 3.5 Kw | 5 Kw | 6 Kw |
| Production Capacity | 100 Pcs/min | 300 Pcs/min | 600 Pcs/min |
| Dimension | 700*800*1700 mm | 860*960*1800 mm | 960*1000*1900 mm |
| Spare Item | Specification | Qty. | Manufacturer |
| Touch screen | 6AV6648-0BC11-3AX0 | 1 | Germany Siemens |
| PLC | 6ES7/288-1ST30-0AA0 | 1 | Germany Siemens |
| Frequency converter | MODECVFD015 B21A | 2 | Taiwan Delta |
| Intermediate relay | MY2NJ | 2 | Omron |
| AC Contactor | 3TB42 | 4 | Germany Siemens |
| Switch | S-50-24 | 1 | Taiwan Mingwell |
| Main Motor | R37DM90LS4 | 2 | Germany SEW |
| Servo Motor | SGM7J-04AFC6S | 2 | Japan Yaskawa |
| Vacuum pump(dry) | KRX3-P-VB-03 | 1 | Japan Orion |
| Detection optical fiber | FS-N18N | 4 | Japan Keyence |
| 1:Utility Model Patent Rotary Design NJY-100c Capsule Liquid Filling Machine, The Sealing Ring Using Imported Sil Silicone Rubber, Effectively Prevent Powder Into The Internal Turntable; Transverse Biaxial Adapt Ptfe Oilless Bearing. | |
|
2:NJY-100c Liquid Capsule Filling Machine Using High Precision Japan Yaskawa Servo Motor, Injection Of Liquid With High Accuracy, Error Is Less Than 2%. |
| 3:Capsule Filling Liquid Machine Cooling Air Drying System Adopts The Vertical Arrangement Of Capsule, Which Is Applicable To The Capsule. The 0 - 2# Capsule Air Drying Cooling System Does Not Need To Replace The Mold. | |
|
4:Capsule Liquid Filling Machine Had High-precision Detection System Is Used To Detect The Separation Of Capsule Caps Online. If The Cap Is Not Completely Separated, The System Automatically Eliminates And Does Not Add Liquid. |
| 5:All The Parts Of The NJY-100c Capsule Liquid Contact Drug Are Made Of Stainless Steel 316, And The Waste Device Adopts Seven Lines Of Aero Aluminum. | |
