| Place of Origin: | Guangzhou, China |
| Brand Name: | Rich Packing |
| Certification: | CE ISO SGS |
| Model Number: | RQ-DSL-8 |
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | $10178-$10376 per pcs |
| Packaging Details: | Standard export wooden case |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 pcs/month |
| Product Name: | Multi-Channel Tablet Pill Counting Machine | Item Type: | Electronic Counting Machine |
|---|---|---|---|
| Counting Precision Rate: | 99.5% | Procution Capacity: | 10-30 Bottle/min |
| Power Supply: | 380v/220v | Motor Power: | 0.6 Kw |
| Useage: | Tablets, Capsules,Pills,Candy,Buttons,Chewing Gum | Function: | Capsule Counting And Bottling |
| High Light: | electronic tablet counting machine,automatic capsule counting machine |
||

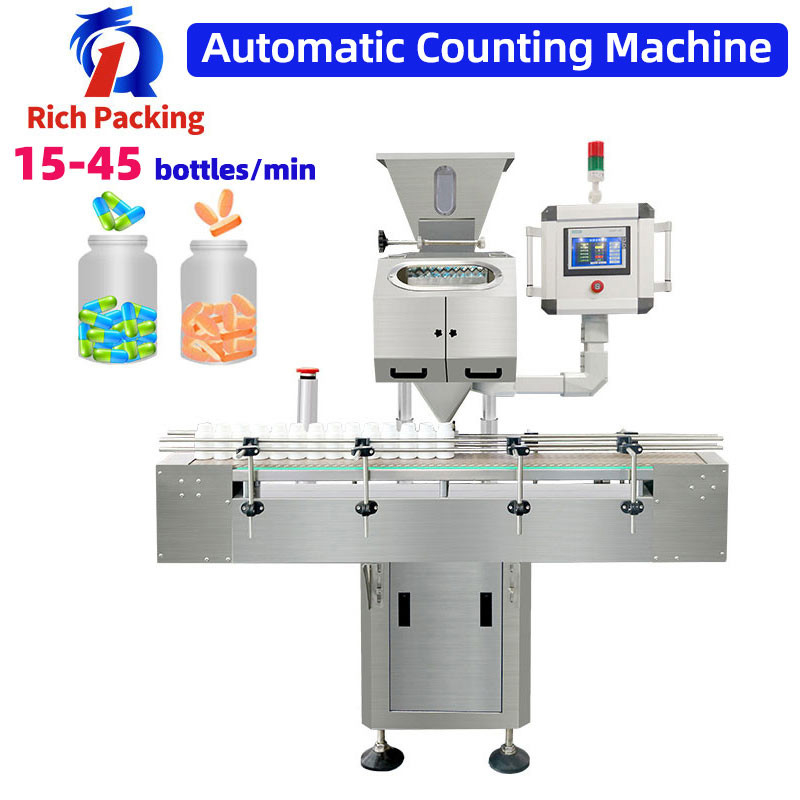

This Electronic counting machine is the third generation of creative products in our company, DSL-8 counting machine can count and pack of solid particles, such as tablets, capsules (transparent or non-transparent hard capsules, soft capsules), pills from 3 to 20mm wide into bottles,boxes and bags.Electronic tablet pill counting machine suitable for research institutions, hospitals, small and medium sized enterprises and health care product plants,meets the requirements of GMP.
|
After-sales Provide |
Engineers Available To Service Machinery Overseas | |||
| DSL Counting Machine Model | 8 | 12 | 16 | 24 |
| Applicable material | Φ5.5~20mm tablets,Φ3~20mm pills, 00~5# hard and soft capsules | |||
| Power | 0.6Kw | 0.6Kw | 1.2Kw | 1.5Kw |
| Max Capacity | 30 bottles/min | 40 bottles/min | 80 bottles/min | 90 bottles/min |
| Dimension(mm) | 1200*1280*1560 | 1360*1650*1650 | 1600*1400*1560 | 2000*1600*1680 |
| Weight | 300Kg | 490Kg | 640Kg | 690Kg |
| Spare Item | Qty. | Manufacturer |
| Motor | 1 | Taiwan TQG |
| Counting Photoelectric Head | 1 | Taiwan Everlight |
| Bottle Photoelectric Eye | 1 | Japan Panasonic |
| Button | 1 | France Schneider |
| PLC | 1 | Germany Siemens |
