| Place of Origin: | Guangzhou, China |
| Brand Name: | Rich Packing |
| Certification: | CE ISO SGS |
| Model Number: | ZP-55 |
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | $35000-49900/pc |
| Packaging Details: | Standard export wooden case |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 pcs/month |
| Name: | Large Pressure 120 KN Tablet Press Machine For Big Size Tablet | Dies No.: | 55set |
|---|---|---|---|
| Max. Production Capacity: | 260000 Pcs/h | Max. Pressure: | 120KN |
| Max. Thickness Of Tablet: | 8mm | Max. Tablet Diameter: | 13mm |
| Motor: | 7.5kw | Weight Of Machine: | 2000kg |
| Outline Dim.: | 1220×1120×1850 Mm | Packing Size: | 1600×1300×2160mm |
| Highlight: | capsule press machine,tablet pill press machine |
||

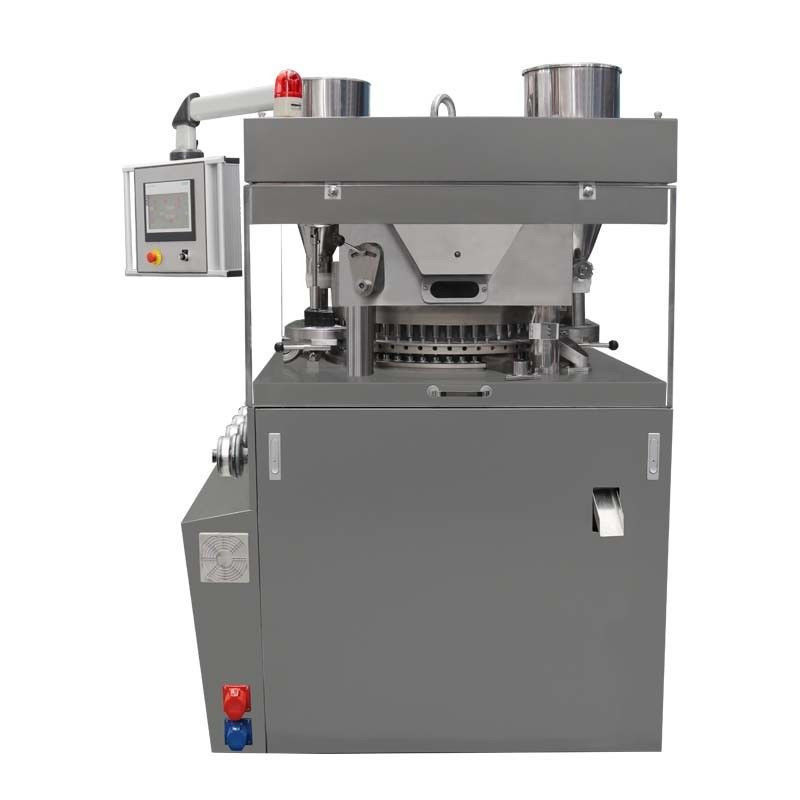

Large pressure 120 KN Tablet Press Machine for Big Size Tablet
Introduction of tablet press machine
This automatic high speed tablet press machine is mainly used in pharmaceutical industry and also the chemical, food, electronic, plastic and metallurgical industries.The tablet press machinery presses the pellet into a circular continuous shape with different diameters tablets, and an automatic continuous production equipment with text, symbols and graphic sheets.
Features of automatic pharmacy tablet press machine:
1. With pressure overload protection device. The pill press machine will start the overload protection through the spring pressure, alarm lights, automatic stop running.
2. The principle of pill compress machine eccentric torque is used to protect the die and machine. Compared with the hydraulic overload protection, it has a fast reaction speed and no oil pollution
3. The tablet press machine has intelligent lubrication system. The technology of BIJUR DELIMON, USA, is used to provided timely, quantitative and timely refueling for parts that need lubrication. The quantity of oil can be flexibly adjusted according to the specific environment of customers.
4. High efficiency and high cost performance. This tablet press machinery adopts single pressure, IPT die, the maximum pressure is 80 kN, maximum press diameter 25mm, maximum capacity 40000/ hours, maximum press thickness 8mm.
5. The tablet press machinery meets the requirements of GMP. The whole shell is made of stainless steel, and the chamber is separated from the outside environment by the organic glass, with good sealing. All the contacting parts of the tablet press meet the requirements of "no poison, no odor and corrosion prevention". The turntable is made of nodular cast iron and strictly implemented for 12 months, which is hard, wearable, non-toxic and smooth, which fully meets the requirements of GMP.
|
||||||||||||||||||||||||||||||||||||||||||||||||||||
Intelligent lubrication system. The technology of Bechl, USA, is used to provided timely, quantitative and timely refueling for parts that need lubrication. The quantity of oil can be flexibly adjusted according to the specific environment of customers.
