|Place of Origin:||Guangzhou, China|
|Brand Name:||Rich Packing|
|Certification:||CE ISO SGS|
|Minimum Order Quantity:||1 PC|
|Packaging Details:||Standard export wooden case|
|Delivery Time:||20-30 working days|
|Payment Terms:||L/C, T/T, Western Union|
|Supply Ability:||30 pcs/month|
|Name:||Rotary Pill Medical Food Press Machine Powder Compressing Machine Salt Tablet Press For Medical Food||Dies No.:||45set|
|Max. Production Capacity:||20000 Pcs/h||Max. Pressure:||100KN|
|Max. Dia. Of Tablet:||Round Shape：13mm；irregular Shape :16mm||Max. Thickness Of Tablet:||8mm|
|Dia. Of Middle Die:||Ф26mm||Dia.of Upper/Lower Punching Bar:||Ф22mm|
|Max. Depth Of Filling:||17mm||Rotary Speed:||5～36 R/min|
|Length Of Upper/Lower Punching Bar:||115mm||Outline Dim.:||1100×940×1755mm|
|Motor:||5.5kw||Weight Of Machine:||1800kg|
|Packing Size:||1520×1100×2130 Mm||Packing Size Of Dust Collector:||960×620×1460 Mm|
capsule press machine,
tablet pill press machine

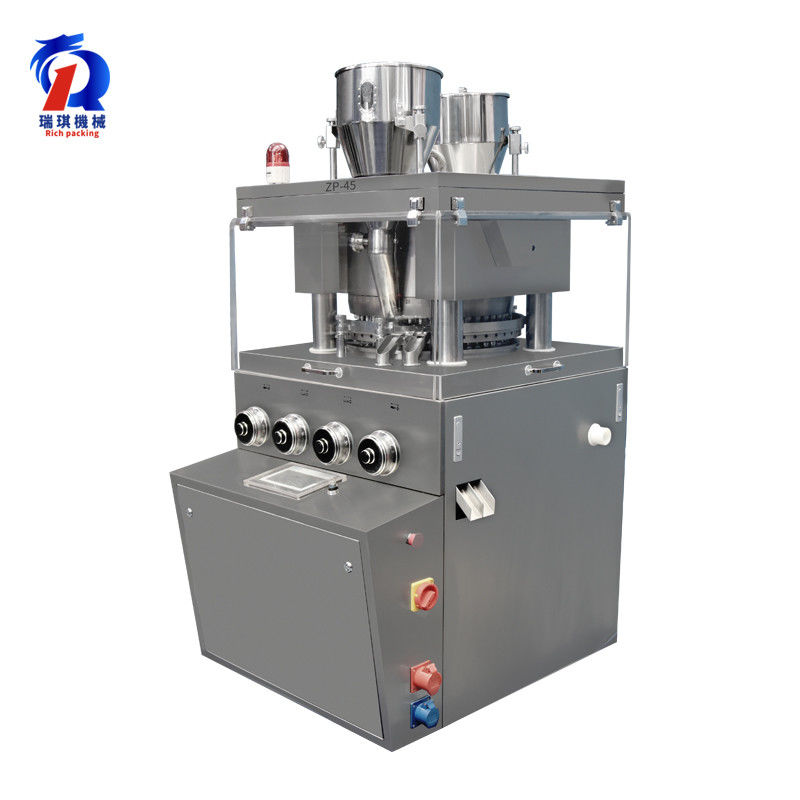

Rotary Pill Medical Food Press Machine Powder Compressing Machine Salt Tablet Press for Medical Food
Introduction of tablet press machine
The tablet press machine equipment has high precision, stable weight, sensitive adjustment and smooth operation.ZP-45 tablet press machine is a kind of automatic rotary tablet press machine and is suitable for continuously pressing powder and particle into round tablets, special-shaped tablets, double color and annular tablet.
Features of automatic pharmacy tablet press machine:
1.The contact parts of tablet press machinery die hole surface and the upper and lower die and rail roughness Ra≤1.6μm, the feeder is tin bronze (ZQSn6-6-3) material, the surface of nickel chromium, the bottom roughness Ra≤0.8μm.
2.The principle of pill compress machine eccentric torque is used to protect the die and machine. Compared with the hydraulic overload protection, it has a fast reaction speed and no oil pollution
3.The tablet press machine has intelligent lubrication system. The technology of BIJUR DELIMON, USA, is used to provided timely, quantitative and timely refueling for parts that need lubrication. The quantity of oil can be flexibly adjusted according to the specific environment of customers.
4.This pharmaceutical tablet press machine uses large angle platform design as far as possible in each part of the machine's operating surface, reducing the "ditch ridge" and the exposed nut to make it smooth and without dead angle.
5. Lower pressure wheel shaft and the lower rail guide of the tablet press machine are installed with the casting subtraction structure (new patent), which is convenient for disassemble, maintenance and replacement. The bottom of the lower pressure wheel has a discharge hole, which can be washed and discharged with water.
|Dies No.||45 set|
|Max. Production Capacity||200000 pcs/h|
|Max. Dia. of Tablet||Round shape:13mm；irregular shape :16mm|
|Max. Depth of Filling||17mm|
|Max. Thickness of Tablet||8mm|
|Dia. Of Middle Die||Ф26mm|
|Height of Middle Die||Ф22mm|
|Length of Upper/Lower Punching Bar||115mm|
|Dia.of Upper/Lower Punching Bar||Ф22mm|
|Rotary Speed||5～36 r/min|
|Weight of Machine||1800kg|
|Packing Size||1520×1100×2130 mm|
|Packing size of Dust Collector||960×620×1460 mm|
