| Place of Origin: | Guangzhou, China |
| Brand Name: | Rich Packing |
| Certification: | CE ISO SGS |
| Model Number: | ZP-45 |
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | $29000-33000/pc |
| Packaging Details: | Standard export wooden case |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 pcs/month |
| Name: | Automatic High-Speed Pill Pressing Rotary Tablet Press Machine | Dies No.: | 45set |
|---|---|---|---|
| Max. Production Capacity: | 20000 Pcs/h | Max. Pressure: | 100KN |
| Max. Thickness Of Tablet: | 8mm | Dia. Of Middle Die: | Ф26mm |
| Dia.of Upper/Lower Punching Bar: | Ф22mm | Max. Dia. Of Tablet: | Round Shape：13mm；irregular Shape :16mm |
| Max. Depth Of Filling: | 17mm | Rotary Speed: | 5～36 R/min |
| Length Of Upper/Lower Punching Bar: | 115mm | Motor: | 5.5kw |
| Weight Of Machine: | 1800kg | Outline Dim.: | 1100×940×1755mm |
| Packing Size: | 1520×1100×2130 Mm | Packing Size Of Dust Collector: | 960×620×1460 Mm |
| High Light: | capsule press machine,tablet pill press machine |
||

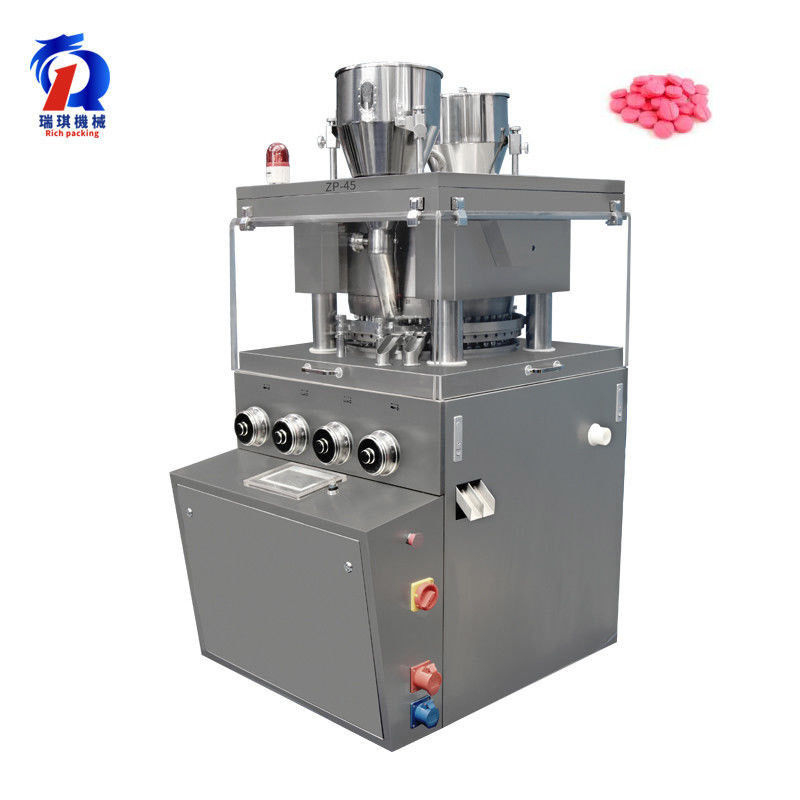

Automatic High-Speed Pill Pressing Rotary Tablet Press Machine
Introduction of tablet press machine
High efficiency and high cost performance.This automatic high speed tablet press machine is mainly used in pharmaceutical industry and also the chemical, food, electronic, plastic and metallurgical industries.
Features of automatic pharmacy tablet press machine:
1. The pill press machine upper punch adapt "down pressure guide", will not jump, running more smoothly.
2. With pressure overload protection device. The pill press machine will start the overload protection through the spring pressure, alarm lights, automatic stop running.
3. The principle of pill compress machine eccentric torque is used to protect the die and machine. Compared with the hydraulic overload protection, it has a fast reaction speed and no oil pollution
4.This pharmaceutical tablet press machine uses large angle platform design as far as possible in each part of the machine's operating surface, reducing the "ditch ridge" and the exposed nut to make it smooth and without dead angle.
5. Good sealing performance, the pharmacy tablet press machine can prevent cross pollution.
| Dies No. | 45 set |
| Max. Production Capacity | 200000 pcs/h |
| Max. Pressure | 100KN |
| Max. Dia. of Tablet | Round shape:13mm；irregular shape :16mm |
| Max. Depth of Filling | 17mm |
| Max. Thickness of Tablet | 8mm |
| Dia. Of Middle Die | Ф26mm |
| Height of Middle Die | Ф22mm |
| Length of Upper/Lower Punching Bar | 115mm |
| Dia.of Upper/Lower Punching Bar | Ф22mm |
| Rotary Speed | 5～36 r/min |
| Motor | 5.5kw |
| Weight of Machine | 1800kg |
| Outline Dim. | 1100×940×1755mm |
| Packing Size | 1520×1100×2130 mm |
| Packing size of Dust Collector | 960×620×1460 mm |
