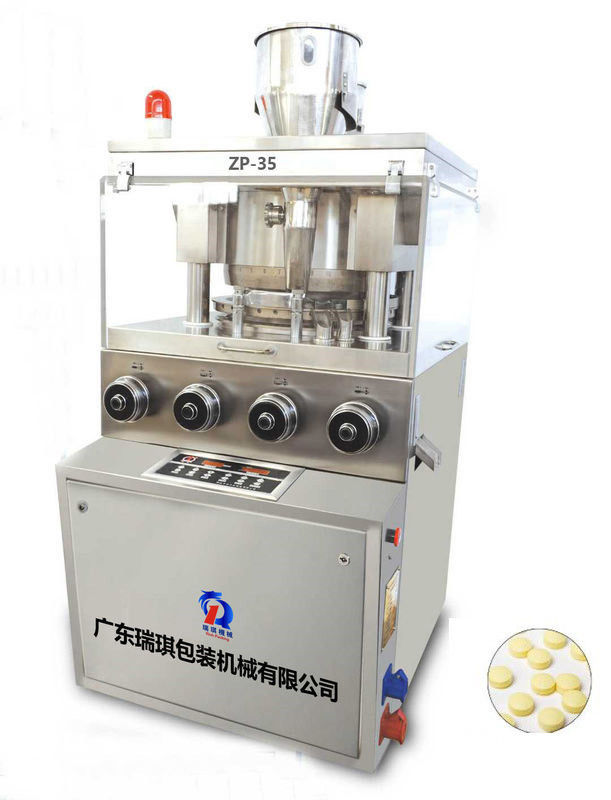

High Efficiency Tablet Press Machine With Good Sealing Performance

High Efficiency Tablet Press Machine With Good Sealing Performance

  • High Efficiency Tablet Press Machine With Good Sealing Performance
High Efficiency Tablet Press Machine With Good Sealing Performance
Product Details:
Place of Origin: Guangzhou, China
Brand Name: Rich Packing
Certification: CE ISO SGS
Model Number: ZP-35
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: $12000-18000/pc
Packaging Details: Standard export wooden case
Delivery Time: 20-30 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 pcs/month
Contact Now
Detailed Product Description
Name: CE Approved Tablet Press Machine With 130000 Pcs/h For Tablet Pill Dies No.: 35set
Max. Production Capacity: 130000 Pcs/h Max. Pressure: 80KN
Max. Dia. Of Tablet: 16mm Max. Thickness Of Tablet: 6mm
Dia. Of Middle Die: Ф26mm Dia.of Upper/Lower Punching Bar: Ф22mm
Max. Depth Of Filling: 15mm Rotary Speed: 4~32 R/min
Length Of Upper/Lower Punching Bar: 115mm Motor: 4kw
Weight Of Machine: 1400kg Outline Dim.: 1040×910×1690mm
Packing Size: 1340×1100×1960mm Packing Size Of Dust Collector: 960×620×1460 Mm
High Light:

capsule press machine


tablet pill press machine

CE Approved Tablet Press Machine with 130000 pcs/h for Tablet Pill

Introduction of tablet press machine

High pressure, this pharmaceutical tablet press machine adapts "Down pressure guide", the pressure is big, can suppress the hard material.This automatic high speed tablet press machine is mainly used in pharmaceutical industry and also the chemical, food, electronic, plastic and metallurgical industries.

Features of automatic pharmacy tablet press machine:

1. High efficiency and high cost performance. This tablet press machinery adopts single pressure, IPT die, the maximum pressure is 80 kN, maximum press diameter 25mm, maximum capacity 40000/ hours, maximum press thickness 8mm.

2. The tablet press machine equipment has high precision, stable weight, sensitive adjustment and smooth operation.

3. With pressure overload protection device. The pill press machine will start the overload protection through the spring pressure, alarm lights, automatic stop running.

4. Good sealing performance, the pharmacy tablet press machine can prevent cross pollution.


5.The tablet press machine equips high equipment configuration. The core components are all famous brand products such as German SIEMENS and Japanese OMRON, with long service life and low failure rate.

Dies No. 35 set
Max. Production Capacity 130000 pcs/h
Max. Pressure 80KN
Max. Dia. of Tablet 16mm
Max. Depth of Filling 15mm
Max. Thickness of Tablet 6mm
Dia. Of Middle Die Ф26mm
Length of Upper/Lower Punching Bar 115mm
Dia.of Upper/Lower Punching Bar Ф22mm
Rotary Speed 4~32 r/min
Motor 4kw
Weight of Machine 1400kg
Outline Dim. 1040×910×1690mm
Packing Size 1340×1100×1960mm
Packing size of Dust Collector 960×620×1460 mm
