| Place of Origin: | Guangzhou, China |
| Brand Name: | Rich Packing |
| Certification: | CE ISO SGS |
| Model Number: | ZP-35 |
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | $12000-18000/pc |
| Packaging Details: | Standard export wooden case |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 pcs/month |
| Name: | Automatic Rotary Tablet Press Machine Pill Compress Machinery | Dies No.: | 35set |
|---|---|---|---|
| Max. Production Capacity: | 130000 Pcs/h | Max. Pressure: | 80KN |
| Max. Dia. Of Tablet: | 16mm | Max. Thickness Of Tablet: | 6mm |
| Dia. Of Middle Die: | Ф26mm | Dia.of Upper/Lower Punching Bar: | Ф22mm |
| Max. Depth Of Filling: | 15mm | Rotary Speed: | 4～32 R/min |
| Length Of Upper/Lower Punching Bar: | 115mm | Motor: | 4kw |
| Weight Of Machine: | 1400kg | Outline Dim.: | 1040×910×1690mm |
| Packing Size: | 1340×1100×1960mm | Packing Size Of Dust Collector: | 960×620×1460 Mm |
| High Light: | pill press machine,capsule press machine |
||

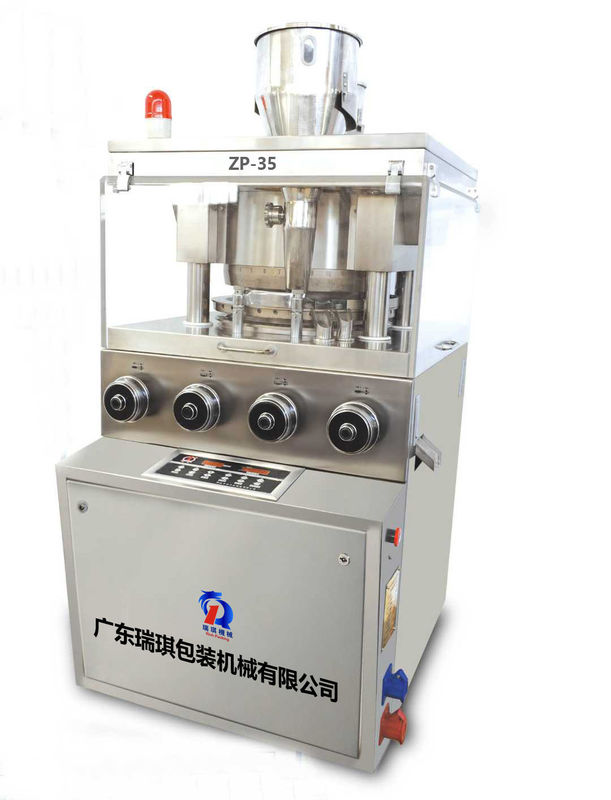

Automatic Rotary Tablet Press Machine Pill Compress Machinery
Introduction of tablet press machine
The tablet press machine equips high equipment configuration.The tablet compress machine is the preferred product in pharmaceutical, chemical, electronics, food and other enterprises in production, the pharmacy pill press machine is also suitable for pressing that material that is difficult formed into tablet, meet the requirements of GMP production.
Features of automatic pharmacy tablet press machine:
1.With pressure overload protection device. The pill press machine will start the overload protection through the spring pressure, alarm lights, automatic stop running.
2.protection, it has a fast reaction speed and no oil pollution
3.The independent modularization of the tablet pressing machine transmission system is set under the main body of the machine, and it can effectively avoid the trace contaminant drugs produced by the friction of the machine running.
4.The mold, hopper, feeder, outlet slot, scraping plate of the tablet compress machine are disassembly convenient, easy cleaning and maintenance.
5.The hole of upper punch of tablet press machine, lower punch and middle mold, the axis of outer circle to the center of the shaft hole coaxiality is H8 (-0.165/0).
| Dies No. | 35 set |
| Max. Production Capacity | 130000 pcs/h |
| Max. Pressure | 80KN |
| Max. Dia. of Tablet | 16mm |
| Max. Depth of Filling | 15mm |
| Max. Thickness of Tablet | 6mm |
| Dia. Of Middle Die | Ф26mm |
| Length of Upper/Lower Punching Bar | 115mm |
| Dia.of Upper/Lower Punching Bar | Ф22mm |
| Rotary Speed | 4～32 r/min |
| Motor | 4kw |
| Weight of Machine | 1400kg |
| Outline Dim. | 1040×910×1690mm |
| Packing Size | 1340×1100×1960mm |
| Packing size of Dust Collector | 960×620×1460 mm |
The upper and downlink rail motion adopts the cosine curve, and the acceleration is 0, no jump and more stable operation
