Large Diameter Rotary Tablet Machine , Automatic Pill Press Machine

Large Diameter Rotary Tablet Machine , Automatic Pill Press Machine

  • Large Diameter Rotary Tablet Machine , Automatic Pill Press Machine
Large Diameter Rotary Tablet Machine , Automatic Pill Press Machine
Product Details:
Place of Origin: Guangzhou, China
Brand Name: Rich Packing
Certification: CE ISO SGS
Model Number: ZP-35
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: $12000-18000/pc
Packaging Details: Standard export wooden case
Delivery Time: 20-30 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 pcs/month
Contact Now
Detailed Product Description
Name: Supplier Large Diameter Tablet Press Machine Pharmacy Pill Dies No.: 35set
Max. Production Capacity: 130000 Pcs/h Max. Pressure: 80KN
Max. Dia. Of Tablet: 16mm Max. Thickness Of Tablet: 6mm
Dia. Of Middle Die: Ф26mm Dia.of Upper/Lower Punching Bar: Ф22mm
Max. Depth Of Filling: 15mm Rotary Speed: 4~32 R/min
Length Of Upper/Lower Punching Bar: 115mm Motor: 4kw
Weight Of Machine: 1400kg Outline Dim.: 1040×910×1690mm
Packing Size: 1340×1100×1960mm Packing Size Of Dust Collector: 960×620×1460 Mm
Highlight:

pill press machine

,

tablet pill press machine

Supplier Large Diameter Tablet Press Machine Pharmacy Pill

Introduction of tablet press machine

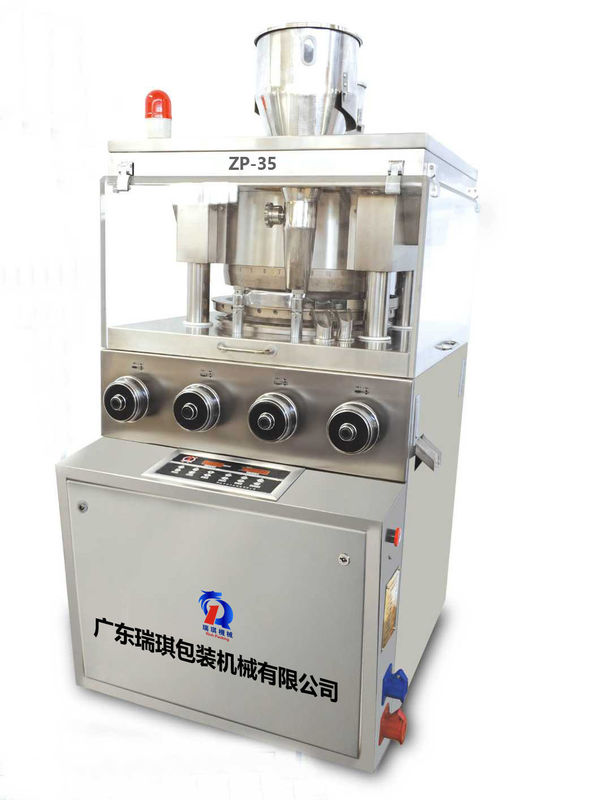

ZP-35 is an automatic rotary tablet press machine. The pharmacy tablet press machne is suitable for continuous pressing of powder and particles into wafers, special-shaped sheets, bicolor and annular sheets. The compress machinery is the preferred product of pharmaceutical, chemical, electronic, food and other manufacturers. This pill tablet press pharmacy machine is also suitable for pressing tablets which are difficult to form, and meets the requirements of GMP production.

Features of automatic pharmacy tablet press machine:

1.The principle of pill compress machine eccentric torque is used to protect the die and machine. Compared with the hydraulic overload protection, it has a fast reaction speed and no oil pollution
2.The tablet press machine has intelligent lubrication system. The technology of BIJUR DELIMON, USA, is used to provided timely, quantitative and timely refueling for parts that need lubrication. The quantity of oil can be flexibly adjusted according to the specific environment of customers.

3.The mold, hopper, feeder, outlet slot, scraping plate of the tablet compress machine are disassembly convenient, easy cleaning and maintenance.
4. Good sealing performance, the pharmacy tablet press machine can prevent cross pollution.

5.High pressure, this pharmaceutical tablet press machine adapts "Down pressure guide", the pressure is big, can suppress the hard material.

Dies No. 35 set
Max. Production Capacity 130000 pcs/h
Max. Pressure 80KN
Max. Dia. of Tablet 16mm
Max. Depth of Filling 15mm
Max. Thickness of Tablet 6mm
Dia. Of Middle Die Ф26mm
Length of Upper/Lower Punching Bar 115mm
Dia.of Upper/Lower Punching Bar Ф22mm
Rotary Speed 4~32 r/min
Motor 4kw
Weight of Machine 1400kg
Outline Dim. 1040×910×1690mm
Packing Size 1340×1100×1960mm
Packing size of Dust Collector 960×620×1460 mm



Large Diameter Rotary Tablet Machine , Automatic Pill Press Machine 0Large Diameter Rotary Tablet Machine , Automatic Pill Press Machine 1

Turntable: The turntable is made of ductile iron and is aged strictly for 12 months. It is hard, wear-resistant, non-toxic and smooth, and fully meets the requirements of GMP.
