| Place of Origin: | Guangzhou, China |
| Brand Name: | Rich Packing |
| Certification: | CE ISO SGS |
| Model Number: | ZP-27 |
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | $19000-28000/pc |
| Packaging Details: | Standard export wooden case |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 pcs/month |
| Name: | High Speed Automatic Tablet Press Machines With CE ISO SGS | Dies No.: | 27 Set |
|---|---|---|---|
| Max. Production Capacity: | 90000 Pcs/h | Max. Pressure: | 100KN |
| Max. Dia. Of Tablet: | 25mm | Max. Depth Of Filling: | 17mm |
| Max. Thickness Of Tablet: | 8mm | Dia. Of Middle Die: | Ф38.1mm |
| Length Of Upper/Lower Punching Bar: | 133.4mm | Dia.of Upper/Lower Punching Bar: | Ф25.4mm |
| Rotary Speed: | 5～28 R/min | Motor: | 5.5kw |
| Weight Of Machine: | 1800kg | Outline Dim.: | 1100×940×1755mm |
| Packing Size: | 1520×1100×2130mm | Packing Size Of Dust Collector: | 960×620×1460 Mm |
| High Light: | capsule press machine,tablet pill press machine |
||

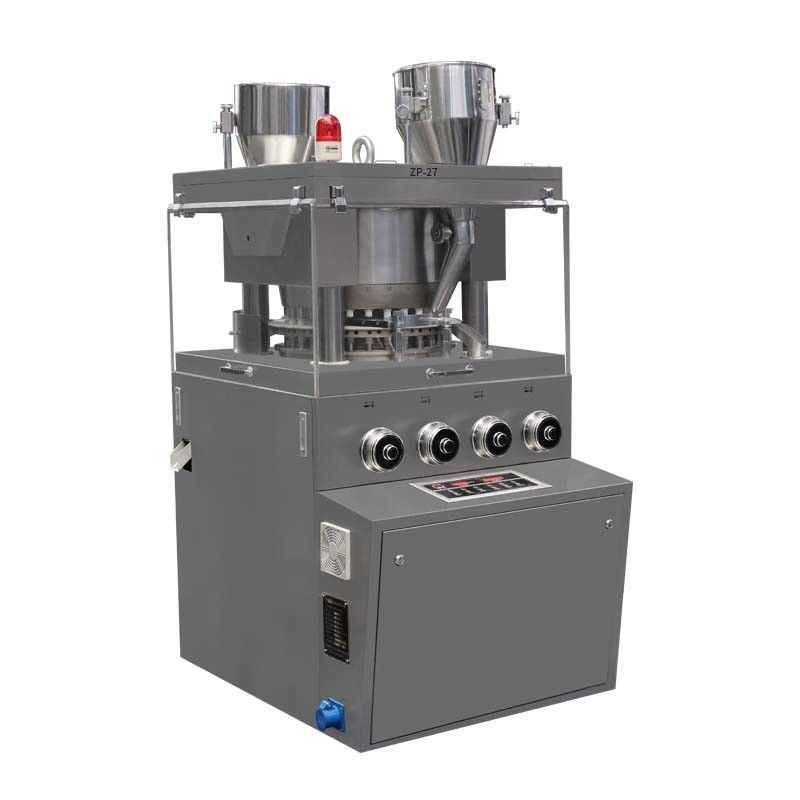

High Speed Automatic Tablet Press Machines with CE ISO SGS
Introduction of tablet press machine
The tablet press is the first choice for pharmaceutical, chemical, electronics, food and other production enterprises. The pharmaceutical pellet press machine is also suitable for pressing difficult-to-form tablets to meet the requirements of GMP production.
Features of automatic pharmacy tablet press machine:
1. Lower pressure wheel shaft and the lower rail guide of the tablet press machine are installed with the casting subtraction structure (new patent), which is convenient for disassemble, maintenance and replacement. The bottom of the lower pressure wheel has a discharge hole, which can be washed and discharged with water.
2. The mold, hopper, feeder, outlet slot, scraping plate of the tablet compress machine are disassembly convenient, easy cleaning and maintenance.
3. Good sealing performance, the pharmacy tablet press machine can prevent cross pollution.
4. High pressure, this pharmaceutical tablet press machine adapts "Down pressure guide", the pressure is big, can suppress the hard material.
5. The tablet press machine equips high equipment configuration. The core components are all famous brand products such as German SIEMENS and Japanese OMRON, with long service life and low failure rate.
| Dies No. | 27 set |
| Max. Production Capacity | 90000 pcs/h |
| Max. Pressure | 100KN |
| Max. Dia. of Tablet | 25mm |
| Max. Depth of Filling | 17mm |
| Max. Thickness of Tablet | 8mm |
| Dia. Of Middle Die | Ф38.1mm |
| Length of Upper/Lower Punching Bar | 133.4mm |
| Dia.of Upper/Lower Punching Bar | Ф25.4mm |
| Rotary Speed | 5～28 r/min |
| Motor | 5.5kw |
| Weight of Machine | 1800kg |
| Outline Dim. | 1100×940×1755mm |
| Packing Size | 1520×1100×2130mm |
| Packing size of Dust Collector | 960×620×1460 mm |
The turntable is made of nodular cast iron and strictly implemented for 12 months, which is hard, wearable, non-toxic and smooth, which fully meets the requirements of GMP.
