Place of Origin: | Guangzhou, China |
Brand Name: | Rich Packing |
Certification: | CE/ISO 9001/SGS |
Model Number: | ZP-27 |
Minimum Order Quantity: | 1 PC |
---|---|
Price: | Negotiable |
Packaging Details: | Standard export wooden case |
Delivery Time: | 20-30 working days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 30 pcs/month |
Name: | Auto Protective Function Traditional Honey Pill Making Machine / Amoxicillin Tablet Pressing Machine | Max. Pressure: | 100KN |
---|---|---|---|
Max. Production Capacity: | 90000 Pcs/h | Max. Dia. Of Tablet: | 25mm |
Max. Thickness Of Tablet: | 8mm | Motor: | 5.5kw |
Rotary Speed: | 5~28 R/min | Packing Size: | 1520×1100×2130mm |
Highlight: | pill press machine,capsule press machine |

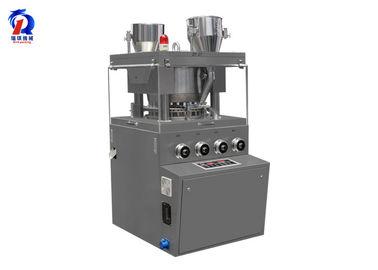

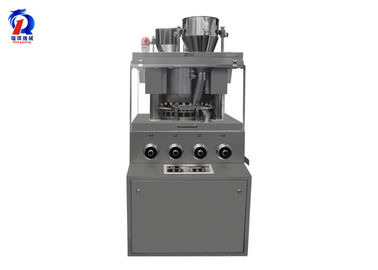

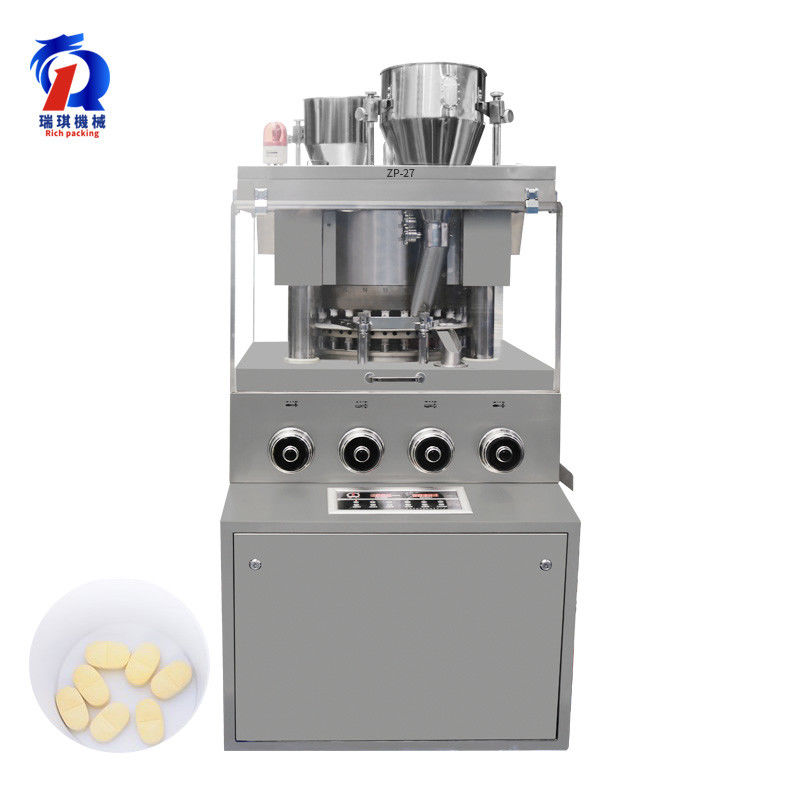

Introduction of tablet press machine
High efficiency and high cost performance.ZP-27 is an automatic rotary tablet press. It is suitable for continuous pressing of powder and particles into wafers, special-shaped sheets, dichroic and annular sheets. It is the preferred product of pharmaceutical, chemical, electronic, food and other manufacturers. It is also suitable for pressing tablets which are difficult to form, and meets the requirements of GMP production.
Features of automatic pharmacy tablet press machine:
1.The hole of upper punch of tablet press machine, lower punch and middle mold, the axis of outer circle to the center of the shaft hole coaxiality is H8 (-0.165/0).
2.The contact parts of tablet press machinery die hole surface and the upper and lower die and rail roughness Ra≤1.6μm, the feeder is tin bronze (ZQSn6-6-3) material, the surface of nickel chromium, the bottom roughness Ra≤0.8μm.
3.The principle of pill compress machine eccentric torque is used to protect the die and machine. Compared with the hydraulic overload protection, it has a fast reaction speed and no oil pollution
4.The tablet press machine has intelligent lubrication system. The technology of BIJUR DELIMON, USA, is used to provided timely, quantitative and timely refueling for parts that need lubrication. The quantity of oil can be flexibly adjusted according to the specific environment of customers.
5.High pressure, this pharmaceutical tablet press machine adapts "Down pressure guide", the pressure is big, can suppress the hard material.
Dies No. | 27 set |
Max. Production Capacity | 90000 pcs/h |
Max. Pressure | 100KN |
Max. Dia. of Tablet | 25mm |
Max. Depth of Filling | 17mm |
Max. Thickness of Tablet | 8mm |
Dia. Of Middle Die | Ф38.1mm |
Length of Upper/Lower Punching Bar | 133.4mm |
Dia.of Upper/Lower Punching Bar | Ф25.4mm |
Rotary Speed | 5~28 r/min |
Motor | 5.5kw |
Weight of Machine | 1800kg |

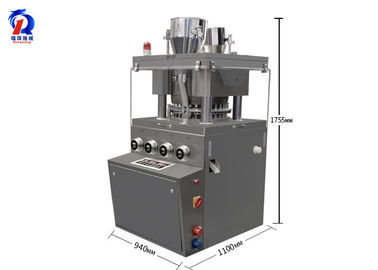

Outline Dim. | 1100×940×1755mm |
Packing Size | 1520×1100×2130mm |
Packing size of Dust Collector | 960×620×1460 mm |
