| Place of Origin: | Guangzhou, China |
| Brand Name: | Rich Packing |
| Certification: | CE ISO SGS |
| Model Number: | ZP-20 |
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | $9000-17000/pc |
| Packaging Details: | Standard export wooden case |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 pcs/month |
| Name: | China Pharmaceutical Rotary Tablet Press Machine For Herb Chewing | Dies No.: | 20 Set |
|---|---|---|---|
| Max. Production Capacity: | 40000 Pcs/h | Max. Pressure: | 80KN |
| Max. Dia. Of Tablet: | 25mm | Max. Depth Of Filling: | 18mm |
| Max. Thickness Of Tablet: | 8mm | Dia. Of Middle Die: | Ф38.1mm |
| Length Of Upper/Lower Punching Bar: | 133.4mm | Dia.of Upper/Lower Punching Bar: | Ф25.4mm |
| Rotary Speed: | 4～32 R/min | Weight Of Machine: | 1200kg |
| Packing Size: | 1340×1100×1960mm | Motor: | 4.0kw |
| Outline Dim.: | 840×1015×1720mm | Packing Size Of Dust Collector: | 960×620×1460 Mm |
| High Light: | pill press machine,tablet pill press machine |
||

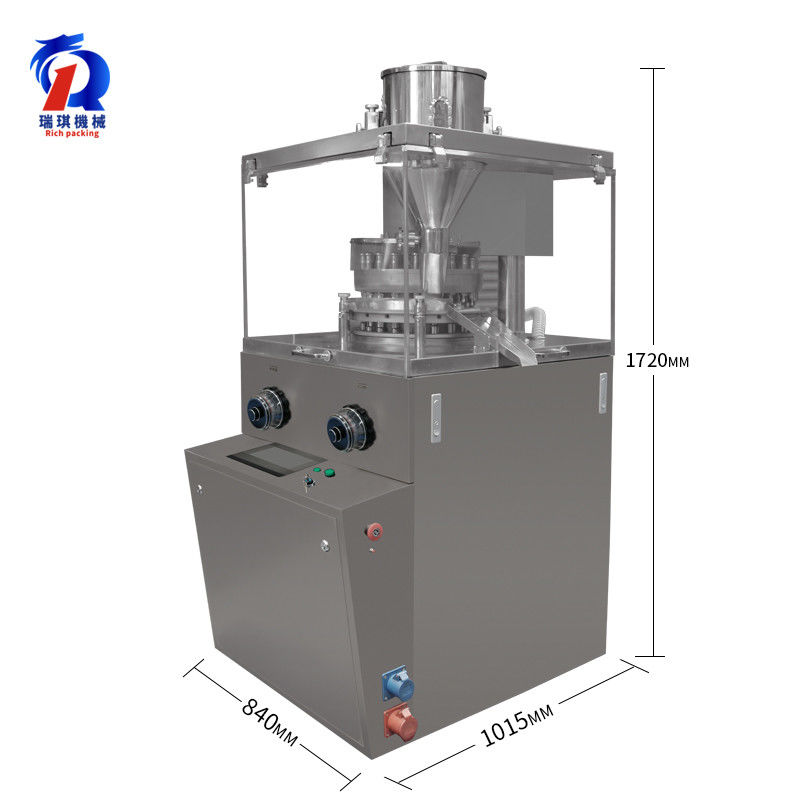

China Pharmaceutical Rotary Tablet Press Machine for Herb Chewing
Introduction of tablet press machine
This automatic high speed tablet press machine is mainly used in pharmaceutical industry and also the chemical, food, electronic, plastic and metallurgical industries.
Features of automatic pharmacy tablet press machine:
1. The sensitivity of the tablet press machine's hand wheel is 0.1mm.
2.The pill press machine upper punch adapt "down pressure guide", will not jump, running more smoothly.
3. With pressure overload protection device. The pill press machine will start the overload protection through the spring pressure, alarm lights, automatic stop running.
4.The principle of pill compress machine eccentric torque is used to protect the die and machine. Compared with the hydraulic overload protection, it has a fast reaction speed and no oil pollution
5.The tablet press machine has intelligent lubrication system. The technology of BIJUR DELIMON, USA, is used to provided timely, quantitative and timely refueling for parts that need lubrication. The quantity of oil can be flexibly adjusted according to the specific environment of customers.
| Dies No. | 20 set |
| Max. Production Capacity | 40000 pcs/h |
| Max. Pressure | 80KN |
| Max. Dia. of Tablet | 25mm |
| Max. Depth of Filling | 18mm |
| Max. Thickness of Tablet | 8mm |
| Dia. Of Middle Die | Ф38.1mm |
| Length of Upper/Lower Punching Bar | 133.4mm |
| Dia.of Upper/Lower Punching Bar | Ф25.4mm |
| Rotary Speed | 4～32 r/min |
| Motor | 4.0kw |
| Weight of Machine | 1200kg |
| Outline Dim. | 840×1015×1720mm |
| Packing Size | 1340×1100×1960mm |
| Packing size of Dust Collector | 960×620×1460 mm |
With pressure overload protection device. It will start the overload protection through the spring pressure, alarm lights, automatic stop running.
The turntable is made of nodular cast iron and strictly implemented for 12 months, which is hard, wearable, non-toxic and smooth, which fully meets the requirements of GMP.
