Place of Origin: | Guangzhou, China |
Brand Name: | Rich Packing |
Certification: | CE ISO SGS |
Model Number: | ZP-20 |
Minimum Order Quantity: | 1 PC |
---|---|
Price: | $9000-17000/pc |
Packaging Details: | Standard export wooden case |
Delivery Time: | 20-30 working days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 30 pcs/month |
Name: | Rotary Pill Food Press Machine Powder Compressing Machine Tablet Press For Medical And Food Industry | Dies No.: | 20 Set |
---|---|---|---|
Max. Pressure: | 80KN | Max. Dia. Of Tablet: | 25mm |
Max. Thickness Of Tablet: | 8mm | Dia. Of Middle Die: | Ф38.1mm |
Max. Depth Of Filling: | 18mm | Length Of Upper/Lower Punching Bar: | 133.4mm |
Max. Production Capacity: | 40000 Pcs/h | Dia.of Upper/Lower Punching Bar: | Ф25.4mm |
Rotary Speed: | 4~32 R/min | Motor: | 4.0kw |
Weight Of Machine: | 1200kg | Outline Dim.: | 840×1015×1720mm |
Packing Size: | 1340×1100×1960mm | Packing Size Of Dust Collector: | 960×620×1460 Mm |
Highlight: | pill press machine,tablet pill press machine |

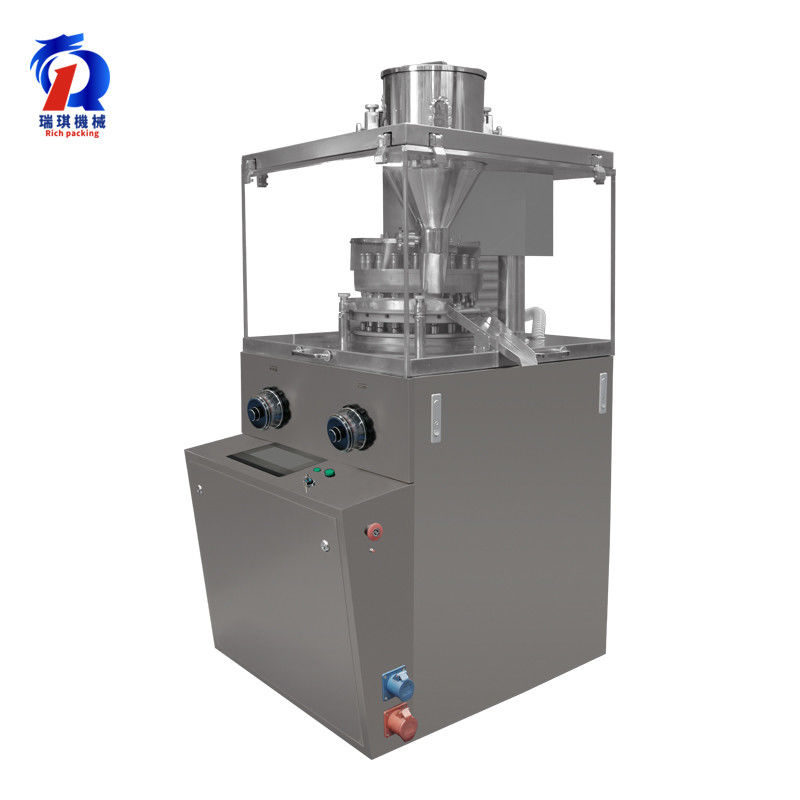

Rotary Pill Food Press Machine Powder Compressing Machine Tablet Press for Medical and Food Industry
Introduction of tablet press machine
ZP-20 tablet press machine is a kind of automatic rotary tablet press machine and is suitable for continuously pressing powder and particle into round tablets, special-shaped tablets, double color and annular tablet.The pharmacy pill press machine is also suitable for pressing that material that is difficult formed into tablet, meet the requirements of GMP production.
Features of automatic pharmacy tablet press machine:
1.Abide by the GMP idea, the product is structured and modularized.
2.The independent modularization of the tablet pressing machine transmission system is set under the main body of the machine, and it can effectively avoid the trace contaminant drugs produced by the friction of the machine running.
3.This pharmaceutical tablet press machine uses large angle platform design as far as possible in each part of the machine's operating surface, reducing the "ditch ridge" and the exposed nut to make it smooth and without dead angle.
4.Lower pressure wheel shaft and the lower rail guide of the tablet press machinery are installed with the casting subtraction structure (new patent), which is convenient for disassemble, maintenance and replacement. The bottom of the lower pressure wheel has a discharge hole, which can be washed and discharged with water.
5.The mold, hopper, feeder, outlet slot, scraping plate of the tablet compress machine are disassembly convenient, easy cleaning and maintenance.
Dies No. | 20 set |
Max. Production Capacity | 40000 pcs/h |
Max. Pressure | 80KN |
Max. Dia. of Tablet | 25mm |
Max. Depth of Filling | 18mm |
Max. Thickness of Tablet | 8mm |
Dia. Of Middle Die | Ф38.1mm |
Length of Upper/Lower Punching Bar | 133.4mm |
Dia.of Upper/Lower Punching Bar | Ф25.4mm |
Rotary Speed | 4~32 r/min |
Motor | 4.0kw |
Weight of Machine | 1200kg |
Outline Dim. | 840×1015×1720mm |
Packing Size | 1340×1100×1960mm |
Packing size of Dust Collector | 960×620×1460 mm |
The contact parts of die hole surface and the upper and lower die and rail roughness Ra≤1.6μm, the feeder is tin bronze (ZQSn6-6-3) material, the surface of nickel chromium, the bottom roughness Ra≤0.8μm.
