| Place of Origin: | Guangzhou, China |
| Brand Name: | Rich Packing |
| Certification: | CE ISO SGS |
| Model Number: | ZP-20 |
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | $9000-17000/pc |
| Packaging Details: | Standard export wooden case |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 pcs/month |
| Name: | GMP Standard Pill Press Tablet Press Machine Maximum Capacity 40000 / Hours | Dies No.: | 20 Set |
|---|---|---|---|
| Max. Depth Of Filling: | 18mm | Max. Production Capacity: | 40000 Pcs/h |
| Max. Dia. Of Tablet: | 25mm | Max. Thickness Of Tablet: | 8mm |
| Max. Pressure: | 80KN | Dia. Of Middle Die: | Ф38.1mm |
| Length Of Upper/Lower Punching Bar: | 133.4mm | Dia.of Upper/Lower Punching Bar: | Ф25.4mm |
| Rotary Speed: | 4～32 R/min | Motor: | 4.0kw |
| Weight Of Machine: | 1200kg | Outline Dim.: | 840×1015×1720mm |
| Packing Size: | 1340×1100×1960mm | Packing Size Of Dust Collector: | 960×620×1460 Mm |
| High Light: | pill press machine,capsule press machine |
||
| Dies No. | 20 set |
| Max. Production Capacity | 40000 pcs/h |
| Max. Pressure | 80KN |
| Max. Dia. of Tablet | 25mm |
| Max. Depth of Filling | 18mm |
| Max. Thickness of Tablet | 8mm |
| Dia. Of Middle Die | Ф38.1mm |
| Length of Upper/Lower Punching Bar | 133.4mm |
| Dia.of Upper/Lower Punching Bar | Ф25.4mm |
| Rotary Speed | 4～32 r/min |
| Motor | 4.0kw |
| Weight of Machine | 1200kg |
| Outline Dim. | 840×1015×1720mm |
| Packing Size | 1340×1100×1960mm |
| Packing size of Dust Collector | 960×620×1460 mm |
Product details:
Factory workshop:
About us:
GMP Standard Pill Press Tablet Press Machine Maximum Capacity 40000 / Hours

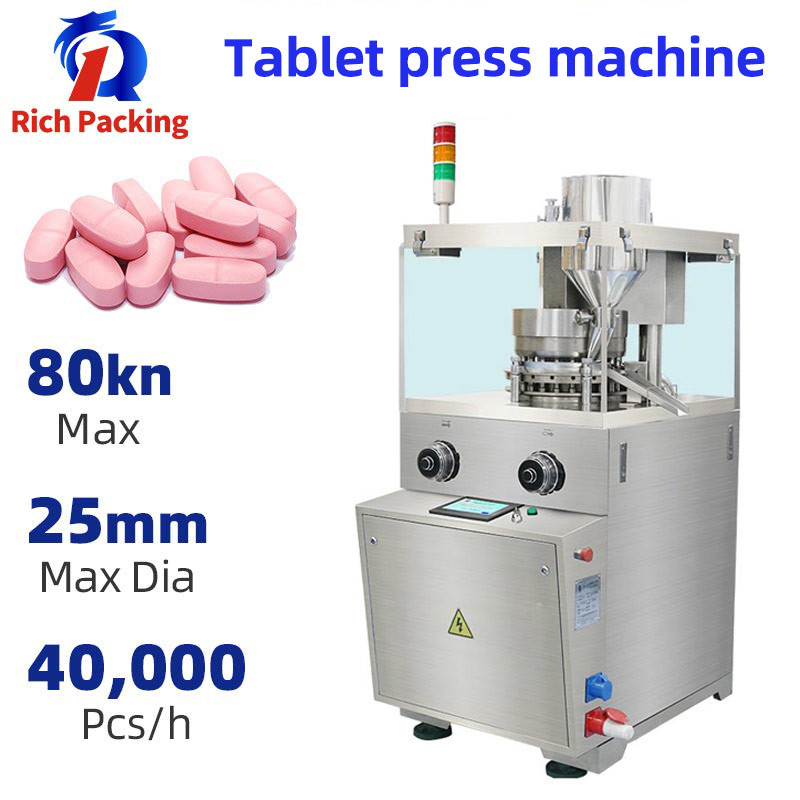

Introduction of pill press tablet press machine
ZP-20 pill press tablet press machine is a kind of automatic rotary tablet press machine and is suitable for continuously pressing powder and particle into round tablets, special-shaped tablets, double color and annular tablet. The tablet compress machine is the preferred product in pharmaceutical, chemical, electronics, food and other enterprises in production, the pharmacy pill press machine is also suitable for pressing that material that is difficult formed into tablet, meet the requirements of GMP production.
Features of automatic pharmacy tablet press machine:
1.Good sealing performance, the pharmacy tablet press machine can prevent cross pollution.
2.High pressure, this pharmaceutical tablet press machine adapts "Down pressure guide", the pressure is big, can suppress the hard material.
3.The tablet press machine equips high equipment configuration. The core components are all famous brand products such as German SIEMENS and Japanese OMRON, with long service life and low failure rate.
4.High efficiency and high cost performance. This tablet press machinery adopts single pressure, IPT die, the maximum pressure is 80 kN, maximum press diameter 25mm, maximum capacity 40000/ hours, maximum press thickness 8mm.
5.The tablet press machinery meets the requirements of GMP.
