| Place of Origin: | Guangzhou, China |
| Brand Name: | Rich Packing |
| Certification: | CE ISO SGS |
| Model Number: | RQ-DSL-16B |
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | $15900-19900/pc |
| Packaging Details: | Standard export wooden case |
| Delivery Time: | 7 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 pcs/month |
| Name: | Hard Gelatin Capsule Counter Price For Sale Capsule Counting Machine | Production Capacity: | 20~80 Bottles/min |
|---|---|---|---|
| Accuracy Rate: | ＞99.5% | Applicable Target: | 00-5 Capsule, Soft Capsule, Ø 5.5-20 Tablet,shaped,sugarcoated Tablet And Ø3-20 Pill |
| Filling Range: | 2-9999 Grains (tablets) Adjustable | Applicable Bottle Type: | 10-500ml Round, Square Bottle |
| Voltage: | 380/220V 50Hz | Power: | 1.2KW |
| Pressure: | 0.6Mpa | Net Weight: | 550kg |
| Outline Dim.(mm): | 1360×1650×1650mm | ||
| High Light: | electronic tablet counting machine,automatic capsule counting machine |
||

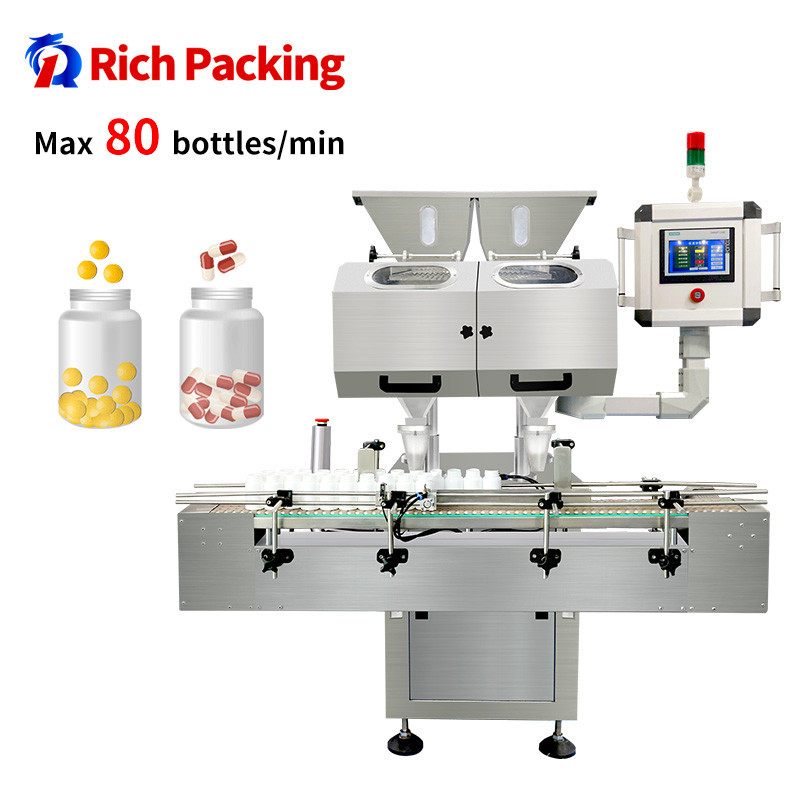

1360×1650×1650mm Automatic Counting Machine For Hard Gelatin Capsule
Introduction of capsule pill tablet counting machine:
Capsules or flaky items are automatically counted and filled.Electronic counting machine can pack all kinds of tablets and capsules (transparent or opaque hard capsules,
soft capsules, pills, etc.) in the range of 3-20 mm.
Features of electrical capsule tablet counting machine:
1. Capsule counting machine equip high accuracy.The accuracy rate of several canned grains is more than 99.5, the counting machine is higher than the industry standard.
2. The flip-flop subassembly mechanism obtains the national patent, does not damage the material when opening and closing.
3. Host uses frequency conversion speed regulation can be soft start speed regulation sensitive, reliable and stable, and can bear large start-up torque.
4. The bottle conveyor is a conveyor belt type, for customers late connection reserved interface can be quickly connected to the auxiliary equipment (bottle machine, capping machine, etc.).
5. Control the use of touch screen man-machine interface PLC programmable controller technology can quickly set various parameters.
| Production capacity | 20~80 bottles/min |
| accuracy rate | ＞99.5% |
| Applicable target | #000-5 capsule, soft capsule, Ø 5.5-20 tablet,shaped,sugarcoated tablet and Ø3-20 pill |
| Filling range | 1-9999 grains (tablets) adjustable |
| Applicable bottle type | 10-500ml round, square bottle(The feeder can be customized according to the size of bottle neck.) |
| voltage | 380/220V 50Hz |
| power | 1.2KW |
| pressure | 0.6Mpa |
| gas consumption | 36～45L/min |
| weight | 550kg |
| Outline dim.(mm) | 1360×1650×1650mm |
see bottle photoelectricity eye: count accurate, do not appear omission phenomenon.
