| Place of Origin: | Guangzhou |
| Brand Name: | Rich Packing |
| Certification: | CE/ISO9001/SGS |
| Model Number: | RQ-DSL-8B |
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export wooden case ( 1360×1350×1650mm) |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 30pcs/month |
| After-sale Provide: | Engineers Available To Service Machinery Overseas | Production Capacity: | 10~30 Bottles/min |
|---|---|---|---|
| Filling Accuracy: | 99.5% | Voltage: | 220/380V 50Hz |
| Function: | Counting And Bottling Machine | Advantage: | Siemens PLC Operation |
| Type: | Automatic Counting Machine | Bottle Shape: | Round, Square, Oval |
| High Light: | electronic tablet counting machine,automatic capsule counting machine |
||

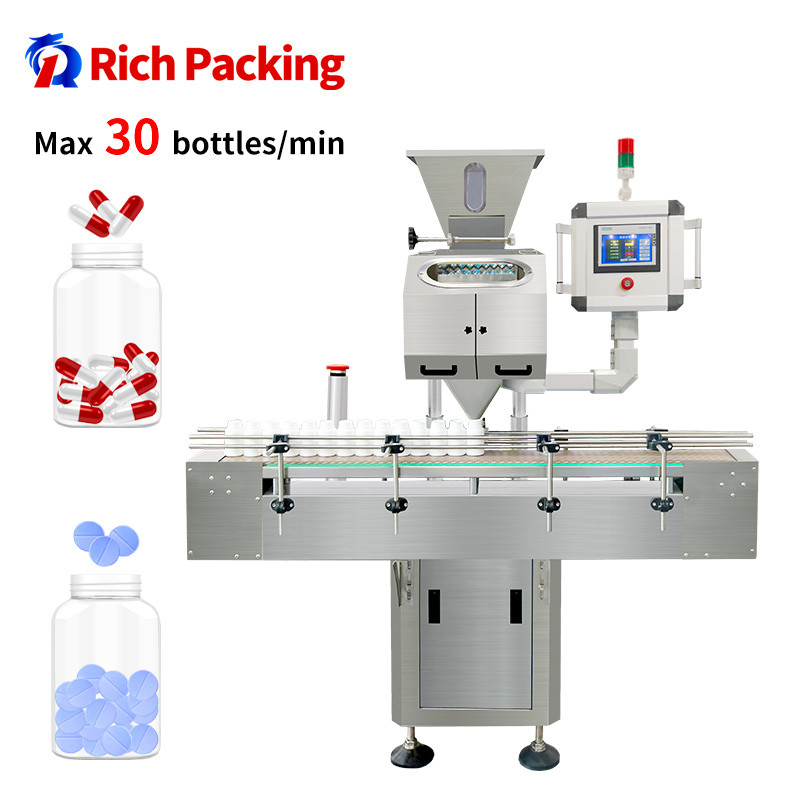

Automatic Counting Machine Tablet Capsule Multistage Vibration For Food Pharmaceutical
This Electronic counting machine is the third generation of creative products in our company, DSL-8 counting machine can count and pack of solid particles, such as tablets, capsules (transparent or non-transparent hard capsules, soft capsules), pills from 3 to 20mm wide into bottles,boxes and bags.Electronic tablet pill counting machine suitable for research institutions, hospitals, small and medium sized enterprises and health care product plants,meets the requirements of GMP.
|
After-sales |
Engineers Available To Service Machinery Overseas | |||
| Counting Machine Model | 8 | 12 | 16 | 24 |
| Applicable material | Φ5.5~20mm tablets,Φ3~20mm pills, 00~5# hard and soft capsules | |||
| Power | 0.6Kw | 0.6Kw | 1.2Kw | 1.5Kw |
| Max Capacity | 30 bottles/min | 40 bottles/min | 80 bottles/min | 90 bottles/min |
| Dimension(mm) | 1200*1280*1560 | 1360*1650*1650 | 1600*1400*1560 | 2000*1600*1680 |
| Weight | 300Kg | 490Kg | 640Kg | 690Kg |
| Spare Item | Qty. | Manufacturer |
| Motor | 1 | Taiwan TQG |
| Counting Photoelectric Head | 1 | Taiwan Everlight |
| Bottle Photoelectric Eye | 1 | Japan Panasonic |
| Button | 1 | France Schneider |
| PLC | 1 | Germany Siemens |
Count the number of vertical tracks compensation (patent), is provided to achieve rapid bottling capsules all numbers in the same type of capsule, very quick and easy without having to change the mold.

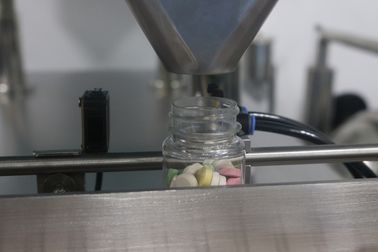

Light-control technology to automatically detect no bottle or bottles will alarm, the capsule will be reduced to a minimum of waste.
The bottle conveyor is conveyor belt type, which provides an interface for customers to connect later,and can quickly connect auxiliary equipment (bottle machine, capping machine, etc.).
