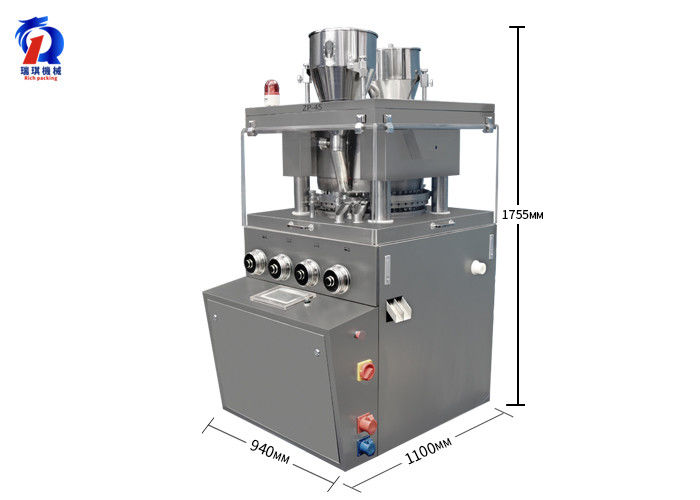

medicine tablet making machine China manufacturer pill compress machinery
| Dies No. |
45 set |
| Max. Production Capacity |
200000 pcs/h |
| Max. Pressure |
100KN |
| Max. Dia. of Tablet |
Round shape:13mm；irregular shape :16mm |
| Max. Depth of Filling |
17mm |
| Max. Thickness of Tablet |
8mm |
| Dia. Of Middle Die |
Ф26mm |
| Height of Middle Die |
Ф22mm |
| Length of Upper/Lower Punching Bar |
115mm |
| Dia.of Upper/Lower Punching Bar |
Ф22mm |
| Rotary Speed |
5～36 r/min |
| Motor |
5.5kw |
| Weight of Machine |
1800kg |
| Outline Dim. |
1100×940×1755mm |
| Packing Size |
1520×1100×2130 mm |
| Packing size of Dust Collector |
960×620×1460 mm |
Tablet press machine is a kind of automatic rotary tablet press machine and is suitable for continuously pressing powder and particle into round tablets, special-shaped tablets, double color and annular tablet. It is the preferred product in pharmaceutical, chemical, electronics, food and other enterprises in production, it is also suitable for pressing that material that is difficult formed into tablet, meet the requirements of GMP production.
1.Highly intelligent.
1.1 With pressure overload protection device. It will start the overload protection through the spring pressure, alarm lights, automatic stop running.
1.2Mold break protection, when the die is broken, stop automatically, protect the machine and mould.
1.3Intelligent lubrication system. The technology of BIJUR DELIMON, USA, is used to provided timely, quantitative and timely refueling for parts that need lubrication. The quantity of oil can be flexibly adjusted according to the specific environment of customers.
2.Abide by the GMP idea, the product is structured and modularized.
2.1The independent modularization of the transmission system is set under the main body of the machine, and it can effectively avoid the trace contaminant drugs produced by the friction of the machine running.
2.2 Use large angle platform design as far as possible in each part of the machine's operating surface, reducing the "ditch ridge" and the exposed nut to make it smooth and without dead angle.
2.3 Lower pressure wheel shaft and the lower rail guide are installed with the casting subtraction structure (new patent), which is convenient for disassemble, maintenance and replacement. The bottom of the lower pressure wheel has a discharge hole, which can be washed and discharged with water.
2.4 The mold, hopper, feeder, outlet slot, scraping plate are disassembly convenient, easy cleaning and maintenance.
2.5 Good sealing performance, can prevent cross pollution.
