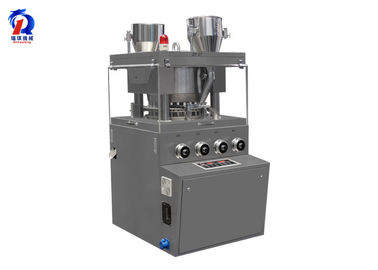

automatic double layers rotary tablet pharmaceutical pill press machine

automatic double layers rotary tablet pharmaceutical pill press machine

  • automatic double layers rotary tablet pharmaceutical pill press machine
  • automatic double layers rotary tablet pharmaceutical pill press machine
  • automatic double layers rotary tablet pharmaceutical pill press machine
automatic double layers rotary tablet pharmaceutical pill press machine
Product Details:
Place of Origin: Guangzhou, China
Brand Name: Rich
Certification: CE
Model Number: ZP-27
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: $19000-28000/pc
Packaging Details: Standard export wooden case (1100×940×1755mm)
Delivery Time: 20-30 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 pcs/month
Contact Now
Detailed Product Description
After-sales Service Provided: Engineers Available To Service Machinery Overseas Max. Production Capacity: 90000 Pcs/h
Max. Pressure: 100KN Max. Dia. Of Tablet: 25mm
Max. Depth Of Filling: 17mm Max. Thickness Of Tablet: 8mm
Dia. Of Middle Die: Ф38.1mm Warranty: 1 Year
Rotary Speed: 5-28 R/min Weight Of Machine: 1800kg

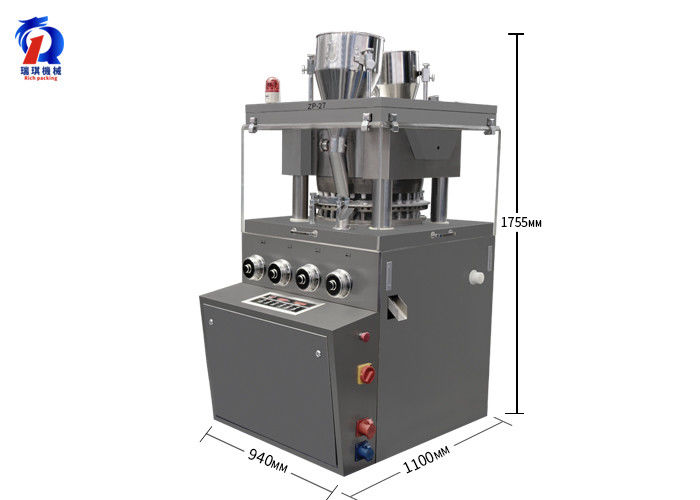

Outline Dim.: 1100×940×1755mm
Highlight:

pill press machine

,

tablet pill press machine

automatic double layers rotary tablet pharmaceutical pill press machine 0

automatic double layers rotary tablet pharmaceutical pill press machine



Dies No. 27 set
Max. Production Capacity 90000 pcs/h
Max. Pressure 100KN
Max. Dia. of Tablet 25mm
Max. Depth of Filling 17mm
Max. Thickness of Tablet 8mm
Dia. Of Middle Die Ф38.1mm
Length of Upper/Lower Punching Bar 133.4mm
Dia.of Upper/Lower Punching Bar Ф25.4mm
Rotary Speed 5~28 r/min
Motor 5.5kw
Weight of Machine 1800kg
Outline Dim. 1100×940×1755mm
Packing Size 1520×1100×2130mm
Packing size of Dust Collector 960×620×1460 mm

automatic double layers rotary tablet pharmaceutical pill press machine 1

Latest tablet compress machine pharmacy pill making compress machine manufacture



Tablet press machine is a kind of automatic rotary tablet press machine and is suitable for continuously highly pressing powder and particle into tablets,it is a enhance version of ZP-20,the pressure can reach 80KN,Max diameter is 18mm, It is the preferred product in pharmaceutical, chemical, electronics, food and other enterprises in middle and large production.

automatic double layers rotary tablet pharmaceutical pill press machine 2

1,High efficiency and high cost performance. This machine adopts double pressure, the maximum pressure is 100 kN, maximum press diameter 25mm, maximum capacity 90000/ hours, maximum press thickness 8mm.

2,It meets the requirements of GMP. The whole shell is made of stainless steel, and the chamber is separated from the outside environment by the organic glass, with good sealing. All the contacting parts of the tablet press meet the requirements of "no poison, no odor and corrosion prevention". The turntable is made of nodular cast iron and strictly implemented for 12 months, which is hard, wearable, non-toxic and smooth, which fully meets the requirements of GMP.

3,The equipment has high precision, stable weight, sensitive adjustment and smooth operation.

3.1 The hole of upper punch, lower punch and middle mold, the axis of outer circle to the center of the shaft hole coaxiality is H8 (-0.165/0).

3.2 The contact parts of die hole surface and the upper and lower die and rail roughness Ra≤1.6μm, the feeder is tin bronze (ZQSn6-6-3) material, the surface of nickel chromium, the bottom roughness Ra≤0.8μm.

3.3 The sensitivity of the hand wheel is 0.1mm.

3.4 The upper and downlink rail motion adopts the cosine curve, and the acceleration is 0, no jump and more stable operation.

automatic double layers rotary tablet pharmaceutical pill press machine 3automatic double layers rotary tablet pharmaceutical pill press machine 4automatic double layers rotary tablet pharmaceutical pill press machine 5automatic double layers rotary tablet pharmaceutical pill press machine 6
