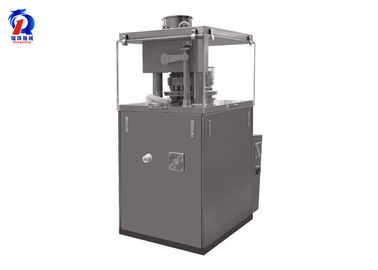

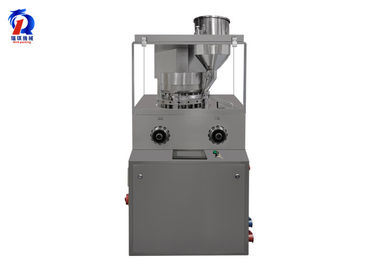

40000 Pcs/H Tablet Press Machine Outline Dimension 840×101

40000 Pcs/H Tablet Press Machine Outline Dimension 840×101

  • 40000 Pcs/H Tablet Press Machine Outline Dimension 840×101
  • 40000 Pcs/H Tablet Press Machine Outline Dimension 840×101
  • 40000 Pcs/H Tablet Press Machine Outline Dimension 840×101
40000 Pcs/H Tablet Press Machine Outline Dimension 840×101
Product Details:
Place of Origin: Guangzhou, China
Brand Name: Rich
Certification: CE
Model Number: ZP-20
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: $9000-17000/pc
Packaging Details: Standard export wooden case (840×1015×1720mm)
Delivery Time: 20-30 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 pcs/month
Contact Now
Detailed Product Description
After-sales Service Provided: Engineers Available To Service Machinery Overseas Max. Production Capacity: 40000 Pcs/h
Max. Pressure: 80KN Max. Dia. Of Tablet: 25mm
Max. Depth Of Filling: 18mm Max. Thickness Of Tablet: 8mm
Dia. Of Middle Die: Ф38.1mm Warranty: 1 Year
Rotary Speed: 4~32 R/min Weight Of Machine: 1200kg

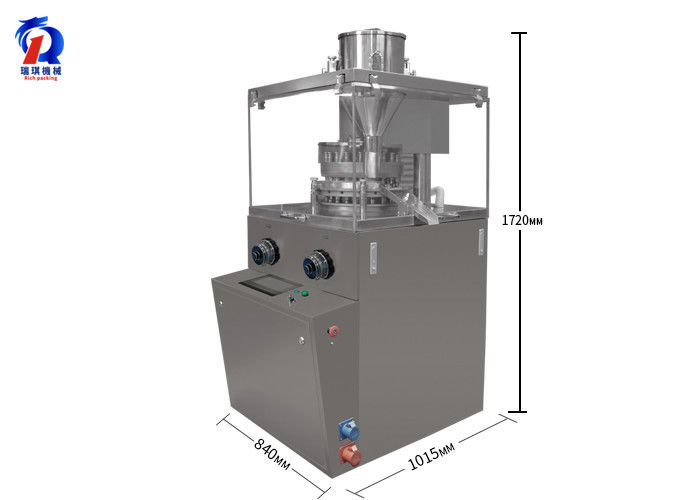

Outline Dim.: 840×1015×1720mm
High Light:

pill press machine

,

capsule press machine

latest tablet compress machine pharmacy pill making compress machine manufacture













Dies No. 20 set
Max. Production Capacity 40000 pcs/h
Max. Pressure 80KN
Max. Dia. of Tablet 25mm
Max. Depth of Filling 18mm
Max. Thickness of Tablet 8mm
Dia. Of Middle Die Ф38.1mm
Length of Upper/Lower Punching Bar 133.4mm
Dia.of Upper/Lower Punching Bar Ф25.4mm
Rotary Speed 4~32 r/min
Motor 4.0kw
Weight of Machine 1200kg
Outline Dim. 840×1015×1720mm
Packing Size 1340×1100×1960mm
Packing size of Dust Collector 960×620×1460 mm



Latest tablet compress machine pharmacy pill making compress machine manufacture



Tablet press machine is a kind of automatic rotary tablet press machine and is suitable for continuously highly pressing powder and particle into tablets,it is a enhance version of ZP-20,the pressure can reach 80KN,Max diameter is 18mm, It is the preferred product in pharmaceutical, chemical, electronics, food and other enterprises in middle and large production.



1,Reasonable design,modular structure, easy operation and lower failure rate.

2,Safety first, all the working stations take full account of the personal safety, such as the emergency stop switch and full enclose pressing station.

3,Environmentally friendly material, the base of the work platform adopts POM engineering plastic, which has high strength and light, which ensures the stable operation of the equipment.

4,Digital display adjustment:filling depth,pressure adjustment digitization,adjustment more accurate and convenient

5,Stable structure: the support part adopts aluminum alloy profile, which has high strength, light and good stability.



Guangdong Rich Packaging Machinery Co., Ltd. is a famous brand of pharmaceutical machinery and packaging machinery in mainland China. The company located in beautiful Guangzhou, which is an economic and trade developed city. There not only is R&D department, but also production department that is constantly improving in production technology, and there also are professional sales and after-sales team.
We have always provided high-quality and reasonable price products to our customers for 25 years. We will offer you that produce with innovation, transact with honest and offer professional service .
Our products have sale to more than 65 countries, such as the United States, Canada, Thailand, Australia. By the way, our products and service are recognized as we share Integrity, responsibility, kindness, hard work and profession to our buyers.
We always believe that Rich Packing will become better and look forward to cooperation with you in future.
