Otomatik kutu karton alt katlanır sızdırmazlık makinesi 120W farmasötik için
Detailed Product DescriptionAfter-sales Service:Engineers Available To Service Machinery OverseasProduct Name:Horizontal Automatic Cartoning MachineProduction Capacity:30-125 Carton/minCarton Size:L(70-185)*K(35-90)*H(14-50)mmCarton Weight:250-350G/?OCarton Product:Ointment, Soft Bag, Bottle, MaskPac…
- Tahmini Teslimat : 7 Günler Hızlı Teslimat
- Sertifika : CGMP CE ISO SGS ve vb.
- Satış sonrası sağlanan : Mühendisler Yurtdışında hizmet makineleri için mevcut.
| Ayrıntılı ürün açıklaması | |||
|---|---|---|---|
| After-sales Service: | Engineers Available To Service Machinery Overseas | ||
| Ürün adı: | Horizontal Automatic Cartoning Machine | ||
| Üretim kapasitesi: | 30-125 Karton/dak | ||
| Carton Size: | L(70-185)*K(35-90)*H(14-50)mm | ||
| Karton Ağırlığı: | 250-350G/?O | ||
| Carton Product: | Ointment, Soft Bag, Bottle, Mask | ||
| Packing For: | Sachet,Condom,Adhesive Bandage | ||
| Vurgulamak: |
high speed blister packing machine, high speed packaging machines |
||

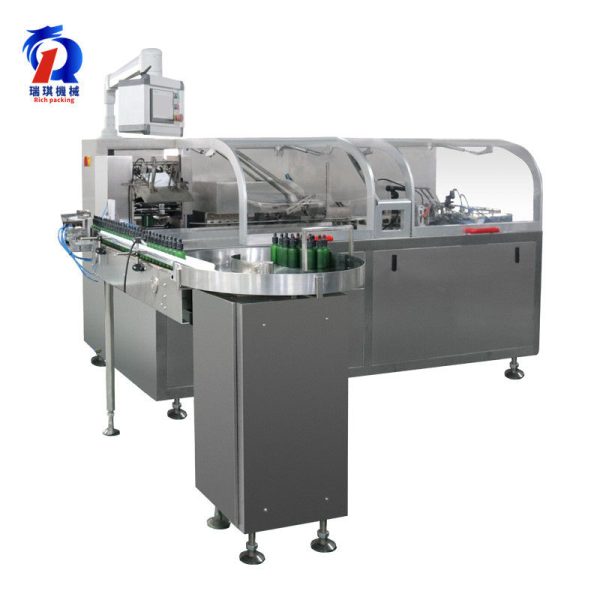

Automatic Box Carton Bottom Folding Sealing Machine 120W Pharmaceutical Blister Cartoning Machine
1.Blister plate cartoning machine
2.Tea bag cartoning machine
3.Automatic Bottle Cartoning Machine
4.Mask cartoning machine
5.Electronic cigarette cartoning machine
GMP StandardRQ-ZH-120W automatic horizontal cartoning packing machine is especially suitable for bag and bottle products with large specifications,This Automatic Horizontal Cartoning Packing Machine is a multi-functional product integrating light and electricity developed. It can automatically and quickly pack aluminum plastic board, elektronik sigara, yüz temizleyici, merhem, Yumuşak çanta, şişe, toz, granül torbası, prezervatif, yumuşak çift katmanlı alüminyum, alçıtaşı, Kahve, mask and etc.It high integration,This automatic horizontal cartoning packing machine can be connected with tail sealing machine,aluminum plastic blister packing machine,strapping machine according to customers’ production requirements.
| Ayrıntılı ürün açıklaması | |||
|---|---|---|---|
| After-sale Provide | Engineers Available To Service Machinery Overseas | ||
| Cartoning Machine Models | 120K | 260K | 450K |
| Güç | 0.75 KW | 5 KW | 4.5 KW |
| Kapasite | 120 Karton/dakika | 260 Karton/dakika | 450 Karton/dakika |

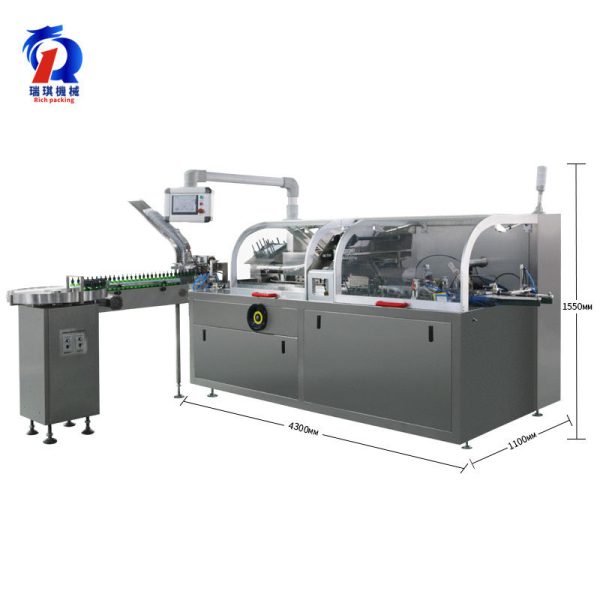

| Boyut | 3100*1100*1550 mm | 6800*1600*1860 mm | 4800*1800*2000 mm |
| Ağırlık | 1600 Kilogram | 3400 Kilogram | 5500 Kilogram |
| Ayrıntılı ürün açıklaması | |||
|---|---|---|---|
| Spare Parts Name | Specification | Qty. | Manufacturer |
| Servo Motor | 400W MHMD042G1U | 1 | Panasonic |
| Servo Driver | 400W MBDHT2510E | 1 | Panasonic |
| Main Motor | R17DT80N4 1.1KW/220V/380V | 1 | Germany SEW |
| Vacuum Pump | VT4.40 | 1 | BECKER |
| Frequency Converter | FC-051P1K5S2E20H | 1 | Danfoss |
| Air Circuit Breaker | DZ47-D63/2P | 1 | Yaohua |
| Plc | Smart ST40 | 1 | Siemens |
| Emergency Stop Button | ZB2-BE102C | 1 | France Schneider |
| Ayrıntılı ürün açıklaması | |||
|---|---|---|---|
| * Double clutch design Horizontal cartoning machine is equipped with protective device. When the cartoning machine breaks down, koruma fonksiyonu hemen etkinleştirilecektir. Malzemeleri israf etmeyecek ve operatörlerin güvenliğini sağlamayacak. |  |
||
 |
* 120W Cartoning machine the accuracy of loading is 99.8%.Inspection points are densely distributed in various workstation, besleme cihazı gibi, miktar denetimi , packaging into conveyer belt inspection, paket sayısı denetimi, karton yerinde muayene vb.. | ||
| * All spare parts of 120W horizontal cartoning packing machine are engraved with codes to facilitate the daily maintenance of customers. |  |
||
 |
* Adjusting scale, Cartoning box packing machine only 3-5 parts need to be replaced to pack products of different sizes. | ||
