| Place of Origin: | Guangzhou, China |
| Brand Name: | Rich Packing |
| Certification: | CE ISO SGS |
| Model Number: | RQ-ZHL-120W |
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | Negotiated |
| Packaging Details: | Standard export wood case the machine is first wrapped with a transparent film, and then bound in a wooden box to ensure the safety of the machine during transportation. |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 13 pcs/month |
| Name: | Automatic Automatic Carton Packing Machine / Machinery Automatic Cartoning | Speed: | 30-120 Carton/min |
|---|---|---|---|
| Total Power: | 0.750 KW | Size Range Of Carton: | L(70-185)*W(35-90)*H(14-50)mm |
| Range Of Folding Times Of Instructions: | 1-4 Fold | Power Supply: | 220/380V 50Hz |
| Carton Weight: | 250-350g/㎡ | Pressure Intensity: | ≥0.6MPa |
| Overall Size Of Machine: | 3100*1100*1550㎜ | Net Weight Of Machine: | 1600kg |
| High Light: | Automatic Cartoning Packing Machine,High Speed Cartoning Packing Machine |
||

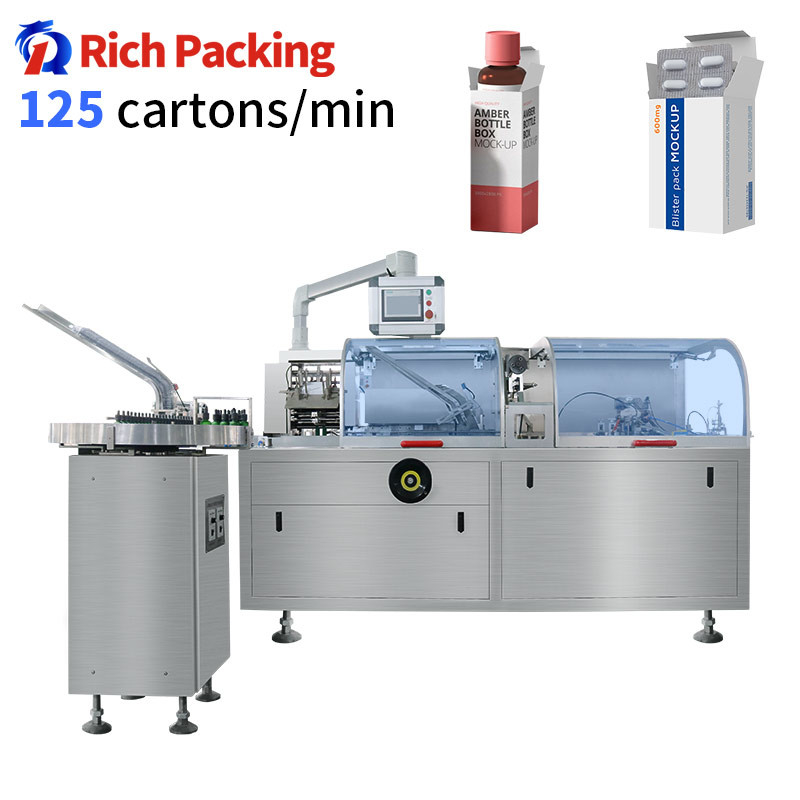

Automatic Cartoning Machine Packaging Sachet Blister Sheet Bottle Tube
| carton pack machine Model | RQ-ZH-12OW |
| carton machine Speed | MAX 125 cartons/min |
| carton pack machine power | 0.750 KW |
| Power supply | 110V/220/380V 50Hz |
| Requirements of carton | size range of carton:L(70-185)*W(35-90)*H(14-50)mm |
| carton weight:250-350g/㎡ | |
| Requirements of instructions | size range of instructions:L(78-250)*W(90-170)mm |
| range of folding times of instructions:1-4 fold | |
| instructions weight:60-70g/㎡ | |
| carton pack machine Pressure | pressure intensity:≥0.6MPa |
| air consumption:120-160 L/min | |
| Overall size of machine | 3100*1100*1550㎜ |
| Net weight of machine | about 1600kg |
Every carton packaging machinery Pharma be equipped with different feeding device, that is suitable for medicine box packaging , daily use, cosmetics and the other industries, and meet the carton packaging requirements of bottled, bagged, alu pvc plate, the electronic products and other products.
According to the number of each cartons be packed, single or the multiple feeding heads can be using. This is no need to worry about the much missing materials, as in the whole production process, from the initial feeding, the middle opening and the manual folding, to the synchronous entry of many multiple types of materials into the box at the later stage, and the final working of finished products, our company has set up the detection photo electric systems.
These inspection device are centrally distributed in the various workstations, like as the feeder, quantity inspection, packing into the conveyor belts inspection, packaging number inspection, the carton in-situ inspection and etc.. more smooth operation, suitable for 24 hours continuous production.
