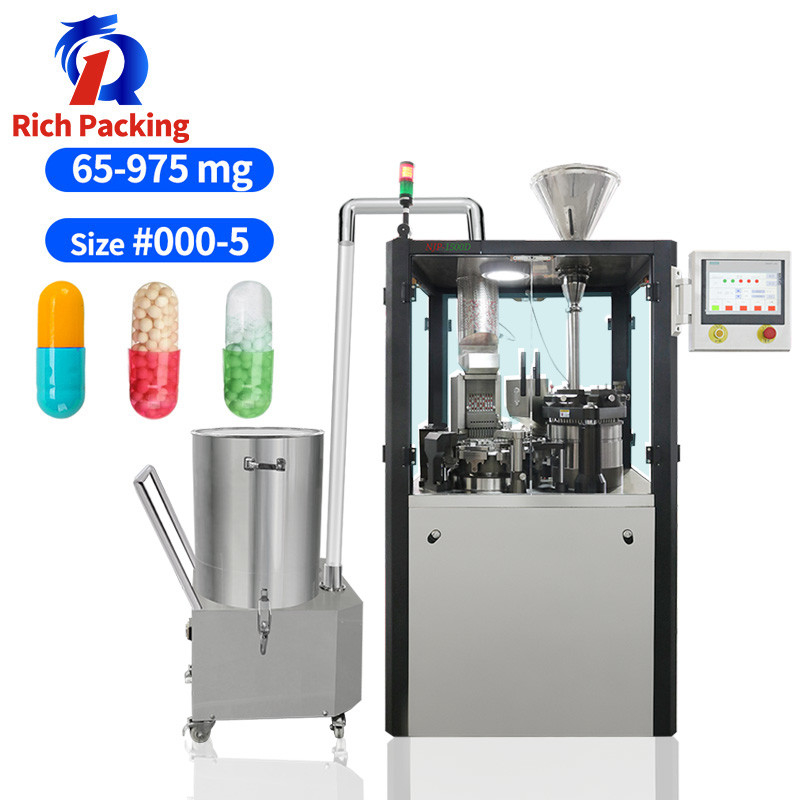

NJP 1500D Capsule Filling Machine For Automatic Fill Size 000 00 0 1 2 3 4 5

NJP 1500D Capsule Filling Machine For Automatic Fill Size 000 00 0 1 2 3 4 5

  • NJP 1500D Capsule Filling Machine For Automatic Fill Size 000 00 0 1 2 3 4 5
  • NJP 1500D Capsule Filling Machine For Automatic Fill Size 000 00 0 1 2 3 4 5
  • NJP 1500D Capsule Filling Machine For Automatic Fill Size 000 00 0 1 2 3 4 5
NJP 1500D Capsule Filling Machine For Automatic Fill Size 000 00 0 1 2 3 4 5
Product Details:
Place of Origin: Guangzhou, China
Brand Name: Rich Packing
Certification: SGS CE ISO 9001
Model Number: NJP - 1500D
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $29331-$32590per set
Packaging Details: the capsule filler machine is is first wrapped with a transparent film, and then bound in a wooden box to ensure the safety of the machine during transportation.
Delivery Time: 7-16 work days
Payment Terms: L/C, , T/T, Western Union
Supply Ability: 55 pcs/month
Contact Now
Detailed Product Description
Product Name: Njp 1500D Fully Automated Gel Capsule Filling Machine Production Capacity: 90000 Pcs/h
Warranty: 3 Year Warranty Capsule Filling Machine Capsule Machine Voltage: 220/380v 50 Hz Or Customized

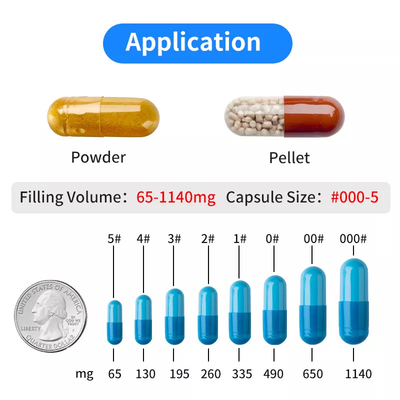

Automatic Grade: Automatic Capsule Filler Applicable Capsule: 00,0,1,2,3,4,5# Capsule
Capsule Filling Machine Feature: High-precision >99.5% After-sales Service Provided: Engineers Available To Service Machinery Overseas, Free Spare Parts, Onlin
High Light:

Automatic Capsule Filling Machine

,

90000pcs/h Capsule Filling Machine

,

5.5KW Capsule Filling Machine

NJP 1500D Capsule Filling Machine For Automatic Fill Size 000 00 0 1 2 3 4 5



Machine capacity 90,000 pcs/h
Net weight of machine 1,200Kg
Overall size 900*870*1950mm
Power 110/220/380v 50 Hz Or Customized
Total power 5.5KW
Delivery date delivery in 1 weeks


















NJP 1500D Capsule Filling Machine For Automatic Fill Size 000 00 0 1 2 3 4 5 0

NJP 1500D Capsule Filling Machine For Automatic Fill Size 000 00 0 1 2 3 4 5 1

NJP 1500D Capsule Filling Machine For Automatic Fill Size 000 00 0 1 2 3 4 5 2

NJP 1500D Capsule Filling Machine For Automatic Fill Size 000 00 0 1 2 3 4 5 3



NJP 1500D Capsule Filling Machine For Automatic Fill Size 000 00 0 1 2 3 4 5 4

Capsules Fills Machine Powder 1500D is easy to clean, zero dirt is one of its strengths, it is very environmentally friendly and economical. This machinery can work efficiently from morning to night under the conditions of continuous machine, and it can run with 0 noise. And all kinds of Fills capsules rods are easy to change and have 0 deviation to ensure the quality of the capsules filled without scratches or damage.



The adjustment working process and methods of the gap between the dosing disc and the sealing ring of the hard capsule Fills machine automatic. The gaps between the dosing disk and the sealing ring of the automatic capsule Fills machine are 0.03 to 0.08mm. When the powder pellets are large, the interval can be adjusted to be larger. If the gaps are too small, the resistance between the dosing disk and the sealing ring would increase. During the operation of the capsule Fills machine fully automatic, it is so necessary to adjust the gaps when too much powder leakage or excessive resistance be found.



Capsules Fills Machine Powder adjustment methods: loosen and remove the 5 screws on the baffle, loosen the set screw and set nut, turn the 5 adjusting bolts evenly and carefully in turn to adjust the heights of sealing ring, check it with a feeler gauge For gaps, check three to five measuring points. After the whole inspection is completed, first tighten the set screw, install the baffle plate with the screw and fix it.
