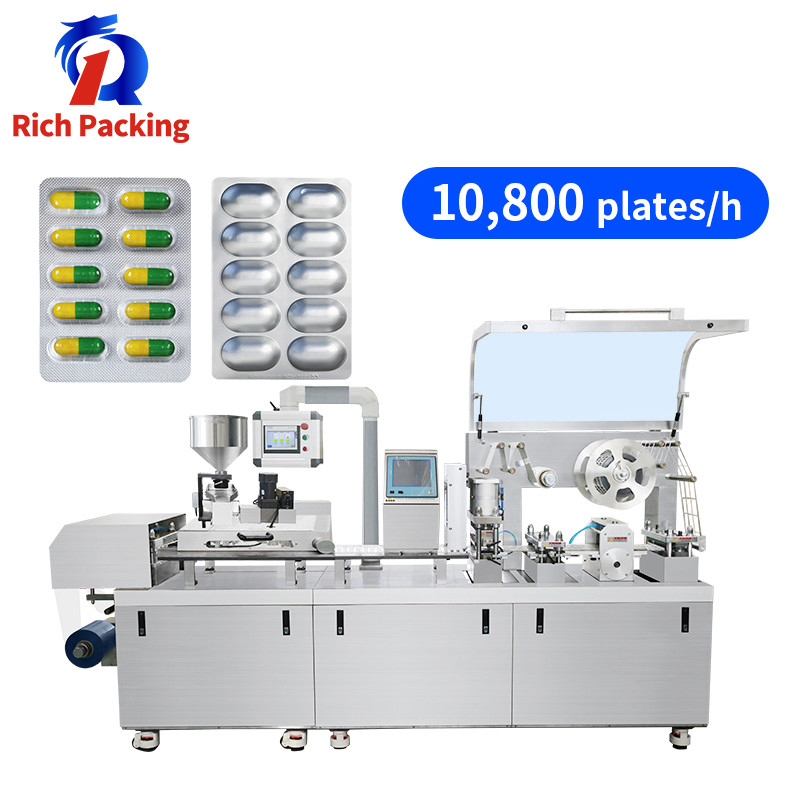

DPP Automatic Blister Packing Machine Forming Packaging Tablet Capsule Pill

DPP Automatic Blister Packing Machine Forming Packaging Tablet Capsule Pill

  • DPP Automatic Blister Packing Machine Forming Packaging Tablet Capsule Pill
  • DPP Automatic Blister Packing Machine Forming Packaging Tablet Capsule Pill
  • DPP Automatic Blister Packing Machine Forming Packaging Tablet Capsule Pill
DPP Automatic Blister Packing Machine Forming Packaging Tablet Capsule Pill
Product Details:
Place of Origin: Guangzhou, China
Brand Name: Rich Packing
Certification: CE/ISO 9001/SGS
Model Number: DPP-260R
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Negotiated price
Packaging Details: Standard export wood case the machine is first wrapped with a transparent film, and then bound in a wooden box to ensure the safety of the machine during transportation.
Delivery Time: 5-8 working days
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 50 pcs/month
Contact Now
Detailed Product Description
Production Capacity: 236,000 Pcs/hour Number Of Blanking: 20~180 Boards/min

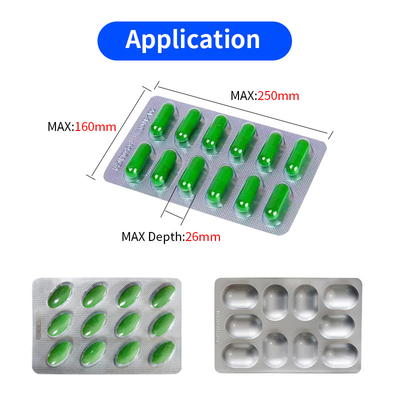

Maximum Forming Area: 160×250*15mm Maximum Depth: 26mm (can Customized)
Standard Travel Range: 40-160mm Standard Plate: 80*57mm
PVC Thickness/width: 260×0.15-0.45mm PTP Aluminum Foil Thickness/width: 260×0.02-0.03mm
High Light:

Automatic Blister Packing Machine

,

Capsule Blister Packing Machine

,

236000 pcs/ Hour Blister Packing Machine

DPP Automatic Blister Packing Machine Forming Packaging Tablet Capsule Pill



Thickness and Width  260×0.02 - 0.03mm
Dialyzing Paper data 50~100g*260mm
Vacuum of blister packing machine 260R 0.4MPa-0.6MPa
gas consumption 0.2m3/min
Noise of blister packing machine 260R <75dBA
Mold Cooling Runing or circulating water It is recommended to use constant temperature cold water 60 L/H



DPP Automatic Blister Packing Machine Forming Packaging Tablet Capsule Pill 0

DPP Automatic Blister Packing Machine Forming Packaging Tablet Capsule Pill 1

DPP Automatic Blister Packing Machine Forming Packaging Tablet Capsule Pill 2

DPP Automatic Blister Packing Machine Forming Packaging Tablet Capsule Pill 3

DPP Automatic Blister Packing Machine Forming Packaging Tablet Capsule Pill 4





The Blister Packaging Machine Automated we Rich Packing provide long as to 3 years warranty short leading time in ten days, is a most popular machine with a wide range of applications: for as an important parts of the 260r DPP automatic blister packaging machine, the feeding motor and the servo motor are selected from Chinese Taiwan Delta brands. The servo motors have extremely high traction accuracy, and it will be zero error in the traction precision.


Even if the machine stops suddenly, the traction position will not appear to backwards. The operating does not need to be aligned, and the operation is very easy. The PVC material feeding motor has the characteristics of accurate material feeding and fast machinery running speed.
The PLC smart touch screen of the blistering machine automatic is selected from Siemens from Germany, and the module designed is selected from Japan's Omron. The PLC screen and its modules of the blister packaging machine fully automatic are more convenient for data management. At the mean time, it also has a data programming functions, that is convenient for customers to operate and to manage, and has a highly degree of integration.


The emergency stop buttons of the Blister Packaging Machinery Automated is made by France Schneider. When the machinery fails, please press the emergency stop button to stop the machine at once.
