NJP Capsule Filling Machine Full Automatic For Powder Pellet Pharmaceutical

NJP Capsule Filling Machine Full Automatic For Powder Pellet Pharmaceutical

  • NJP Capsule Filling Machine Full Automatic For Powder Pellet Pharmaceutical
  • NJP Capsule Filling Machine Full Automatic For Powder Pellet Pharmaceutical
  • NJP Capsule Filling Machine Full Automatic For Powder Pellet Pharmaceutical
  • NJP Capsule Filling Machine Full Automatic For Powder Pellet Pharmaceutical
NJP Capsule Filling Machine Full Automatic For Powder Pellet Pharmaceutical
Product Details:
Place of Origin: Guangzhou, China
Brand Name: Rich Packing
Certification: CE ISO SGS
Model Number: NJP-400
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negotiated price
Packaging Details: Standard export wooden case
Delivery Time: 20-30 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 pcs/month
Contact Now
Detailed Product Description
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support Capsule Size: 000 00 0 1 2 3 4 5
Voltage: 220V/380V 50Hz Condition: New
Weight: 600KG Dimension(l*w*h): 805*705*1760 Mm
Type: Filling Machine Application: Medical,Food
Automatic Grade: Automatic Driven Type: Electric
High Light:

Capsule Filling Machine Full Automatic

,

24000pcs/h Capsule Filling Machine

,

Capsule Powder Filling Machine

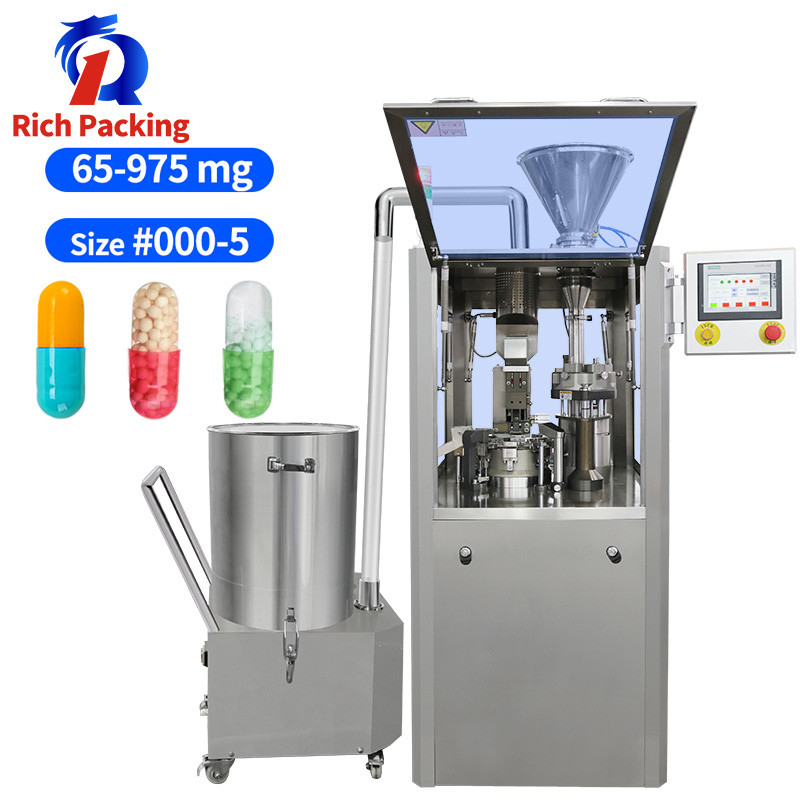

NJP Capsule Filling Machine Full Automatic For Powder Pellet Pharmaceutical

capacity 24,000 pcs/h
Net weight of machine 600.00 Kg
Overall size of machine 805×705×1760(mm)
Power 100-400V 50/60Hz
Total power 3.5KW
Vacuum 20m3/h-0.04-0.08Mpa
Noise <75DB(A)

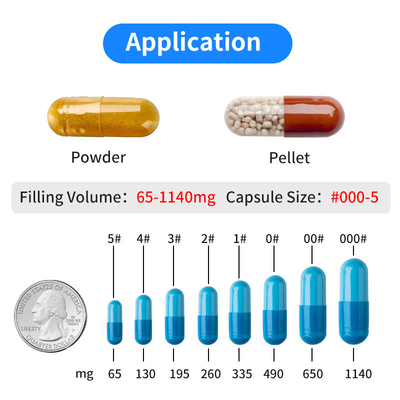

Applicable capsule 00,0,1,2,3,4,5#
Applicable product Power,granule,pellet,tablet



NJP Capsule Filling Machine Full Automatic For Powder Pellet Pharmaceutical 0

NJP Capsule Filling Machine Full Automatic For Powder Pellet Pharmaceutical 1

NJP Capsule Filling Machine Full Automatic For Powder Pellet Pharmaceutical 2

NJP Capsule Filling Machine Full Automatic For Powder Pellet Pharmaceutical 3

NJP Capsule Filling Machine Full Automatic For Powder Pellet Pharmaceutical 4

NJP Capsule Filling Machine Full Automatic For Powder Pellet Pharmaceutical 5

NJP Capsule Filling Machine Full Automatic For Powder Pellet Pharmaceutical 6



NJP Powder Capsule Filling Machine 400C NJP is easy to clean, 0 dirt is one of its strengths, it is very environmentally friend and very economical. This machinery can work efficiently from morning to night under the conditions of continuous working, and it can run with no noise. So, all kinds of fill rods are easy for changing and have 0 deviation to ensure the quality of the capsules without any damage.
The adjustment working and war of the gap between the dosing disc and the sealing ring of the automatic hard capsules filling machine. The gap between these dosing disk and the sealing rings of the automatic capsule filling machine are 0.03 to 0.08mm. When the powder granules are large, the interval can be adjusted to be bigger . If the gaps are too small, the resistance between the dosing disk and the sealing ring would increase. During the operating of the fully automatic capsule filling machinery, it is necessary to adjust the gap when too much powder leakage.
Automatic filling capsule machine adjustment method: loosen and remove the 5 screws on the baffle, turn the five adjusting bolts evenly and careful in turn to adjust the height of the sealing rings, check it with the feeler gauge For gaps, check three to five measuring points, the gaps at every point should be consistent, and make sure that the five adjusting sleeves are in contact with the sealing ring.
