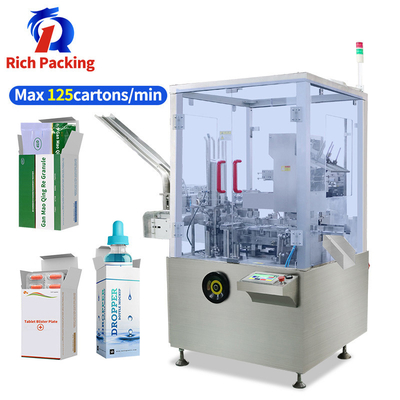

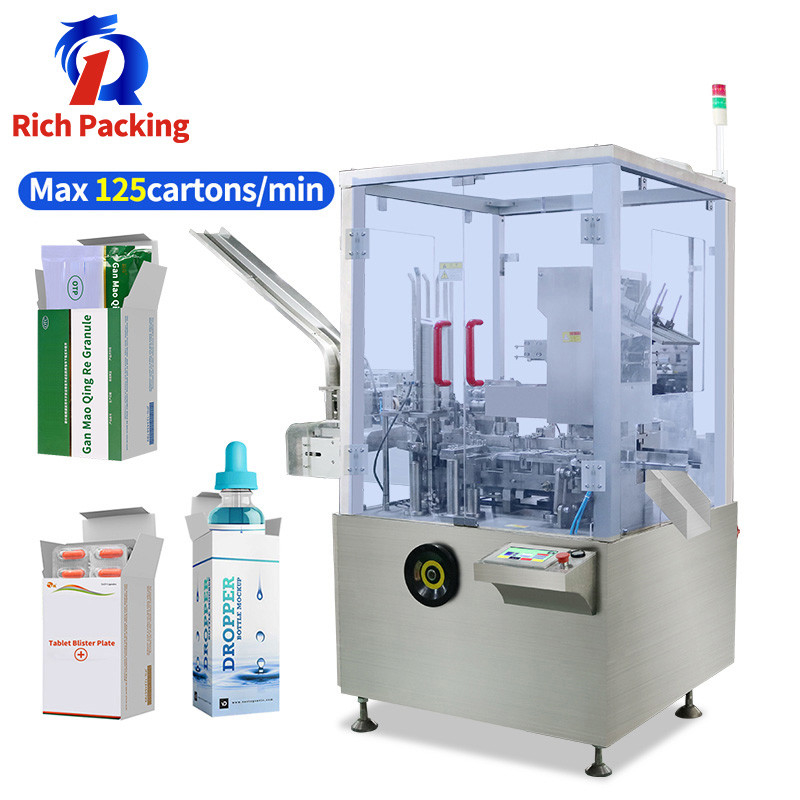

Automatic Cartoning Machine Vertical Bottle Tube Box Packing Cartoner

Automatic Cartoning Machine Vertical Bottle Tube Box Packing Cartoner

  • Automatic Cartoning Machine Vertical Bottle Tube Box Packing Cartoner
  • Automatic Cartoning Machine Vertical Bottle Tube Box Packing Cartoner
  • Automatic Cartoning Machine Vertical Bottle Tube Box Packing Cartoner
Automatic Cartoning Machine Vertical Bottle Tube Box Packing Cartoner
Product Details:
Place of Origin: Guangzhou, China
Brand Name: Rich Packing
Certification: CE ISO SGS
Model Number: RQ-ZH-120L
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negotiated price
Packaging Details: Standard export wooden case
Delivery Time: 20-30 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 pcs/month
Contact Now
Detailed Product Description
Name: Automatic Facial Tissue Paper Box Carton Packing Machine Speed: 30-125 Carton/min
Total Power: 0.750 KW Size Range Of Carton: L(70-185)*W(35-90)*H(14-50)mm
Range Of Folding Times Of Instructions: 1-4 Fold Power Supply: 220/380V 50Hz
Carton Weight: 250-350g/㎡ Size Range Of Instructions: L(78-250)*W(90-170)mm
Instructions Weight: 60-70g/㎡ Pressure Intensity: ≥0.6MPa
High Light:

Vertical Bottle Automatic Cartoning Machine

,

Tube Box Automatic Cartoning Machine

,

Automatic Electronic Counting Machine

    Automatic Facial Tissue Paper Box Cartoning Packing Machine



Model RQ-ZH-12OL
Speed 30-125 carton/min
Total power 0.750 KW
Power supply 220/380V 50Hz
Requirements of carton size range of carton:L(70-185)*W(35-90)*H(14-50)mm
  carton weight:250-350g/㎡
Requirements of instructions size range of instructions:L(78-250)*W(90-170)mm
  range of folding times of instructions:1-4 fold
  instructions weight:60-70g/㎡



Automatic Cartoning Machine Vertical Bottle Tube Box Packing Cartoner 0

Automatic Cartoning Machine Vertical Bottle Tube Box Packing Cartoner 1

Automatic Cartoning Machine Vertical Bottle Tube Box Packing Cartoner 2

Automatic Cartoning Machine Vertical Bottle Tube Box Packing Cartoner 3



Automatic Cartoning Machine Vertical Bottle Tube Box Packing Cartoner 4



Our company's Pharma Cartoning Machine has a wide range of many applications, has a number of models currently , the much important models are 120L vertical, 120W horizontal, and 260W horizontal, 450W horizontal cartoning machine automatic, that can meet the needs of most large and small batch production.
Every Cartoning Machine Pharma be equipped with different feeding machinery, that is suitable for medicine carton packaging , daily use, cosmetics and the other industries, and meet the carton packaging requirements of bottled, bagged, aluminum plastic plate, the electronic products and other products.
According to the quantities of each cartons be packed, single or the multiple feeding heads can be used. This is no need to worry about the any missing materials, as in the whole production process, from the initial feeding, the middle opening and the manual folding, to the synchronous entry of many multiple types of materials into the box at the later stage, and the final working of finished products, Rich Packing have set up a detection photoelectric systems. And the whole working is monitored under the intelligent smart PLC system, and the electrical units used are the international famous brand German Siemens equipment.
For the materials that need to be accompanied with the instructions, our carton box packing machine products are equipped with good origami machine as standard, that has powerful function and fast speed. The upgraded functions of preventing the machine from running overload could realize the protection of the main engine and the origami machine.

Those inspection points are centrally distributed in the various workstations, like as feeder, quantity inspection, packing into the conveyor belts inspection, packaging number inspection, the carton in-situ inspection and so on. more smooth operation, suitable for 24 hours continuous production.
